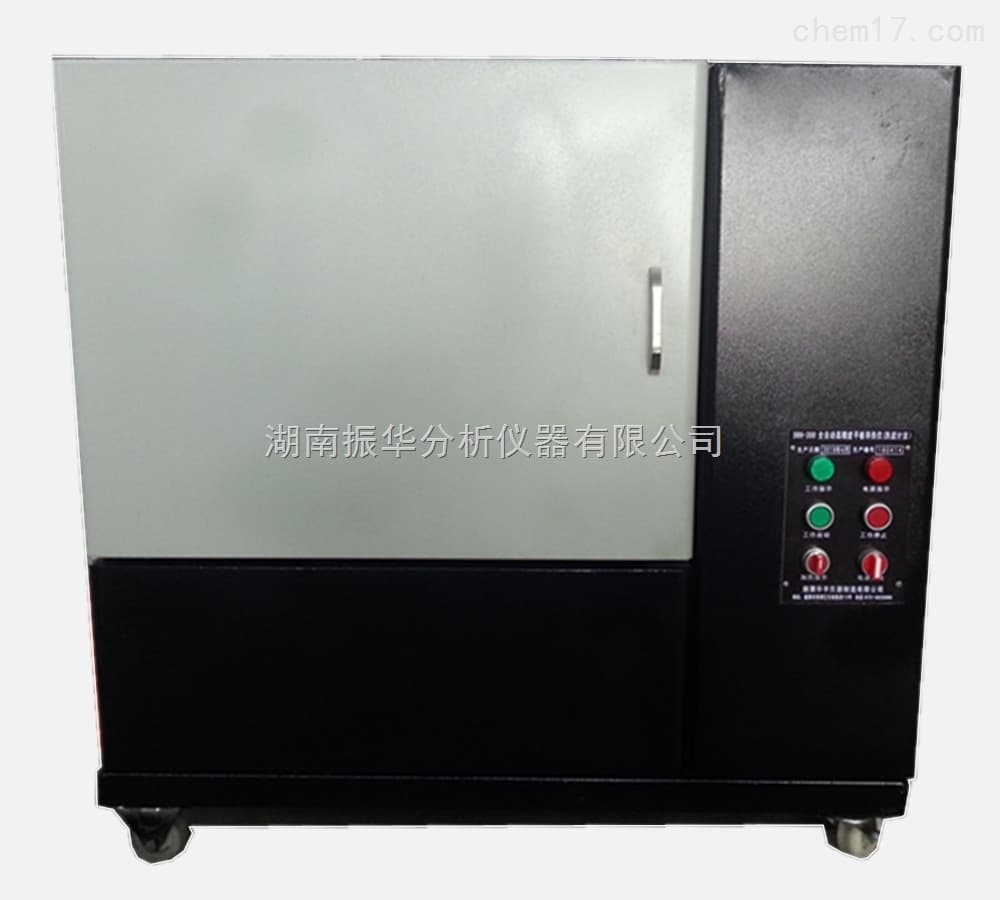

Heat Flow Meter Thermal Conductivity Tester
Published: 8/24/2021
The DRH-300C measures thermal conductivity and thermal resistance of insulating board materials, soils, ceramics, plastics, and similar specimens using a dual heat-flow meter plate method. It offers automated data acquisition, processing, and reporting in compliance with ASTM C518, ISO 8301, and GB/T 10295.
Product Description
The DRH-300C is a plate-type heat flow meter system designed for steady-state measurement of thermal conductivity and thermal resistance in flat specimens. A symmetric configuration places a heat flux sensor on both the hot and cold plates to capture bi-directional heat flow through the sample, improving accuracy and repeatability.
The instrument supports automated measurement via a host computer, including data acquisition, processing, storage, and report generation. An optional embedded controller with a touch screen enables stand-alone operation. Typical applications include testing of insulation boards, clays, sandy soils, ceramics, and plastics within standardized conditions.
Temperature control encompasses a thermostated cold plate and a PID-controlled hot plate with programmable setpoints. Thickness is measured automatically with incremental linear gauging, and fixtures are available for powders and granular samples, including round specimen cylinders for geotechnical materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thermal Conductivity Range | 0.001–3.0 W/m·K |
| Accuracy | ±3% (at 25 °C ambient) |
| Repeatability | ±1% |
| Thermal Resistance Range | 0.1–8.0 m²·K/W |
| Instrument Structure | Conforms to ISO 8301 |
| Configuration | Symmetric sample layout with dual heat flux meters (one on hot plate and one on cold plate) |
| Sample Thickness Measurement | Automatic, 15–100 mm (EN 1946-3:1999 compliant) |
| Thickness Measurement Type | Incremental linear |
| Thickness Display Resolution | 0.1 mm |
| Sample Size | 300 × 300 mm |
| Sample Thickness Capability | 10–50 mm (up to 200 mm with thickened configuration) |
| Average Temperature Range | Room temperature to 40 °C (customizable) |
| Cold Plate Temperature Setpoints | −30 °C, 0 °C, 15.0 °C |
| Cold Plate Temperature Stability | < ±0.1 °C |
| Temperature Indication (Cold Plate) | Digital, Class 0.1, 0.01 °C resolution |
| Hot Surface Control Range | Room temperature to 99.99 °C |
| Temperature Indication (Hot Plate) | Programmable digital controller, Class 0.1, 0.01 °C resolution |
| Hot Plate Heater | Flat heater with bidirectional thyristor control |
| Temperature Control Method | Automatic intelligent PID |
| Programmable Data Points | >10 |
| Cooling Options | Forced air cooling; external water bath; electronic (thermoelectric) cooling (select one) |
| Operation Mode | Computer-automated testing (optional embedded touchscreen controller) |
| Heat Flux Sensor | In-house calibrated; sensitivity 23.26 W/(m²·mV) (imported sensors optional, extra cost) |
| Powder/Soil Measurement Accessories | Specimen cylinder or frame; example round specimen cylinder Ø90 mm |
| Positioning/Pressure | Motorized positioning; suitable for soft insulation (automatic distance) and rigid foam (100 N pressure positioning) |
| Thickness Precision (Positioning Statement) | 0.01 m |
| Standards Compliance | ASTM C518; ISO 8301; GB/T 10295 |
| Included Items | Main tester; low-temperature constant-temperature bath; test analysis software |
| Computer And Printer | Customer-supplied |
| Thermal Conductivity Standard Board | Optional (extra cost) |
