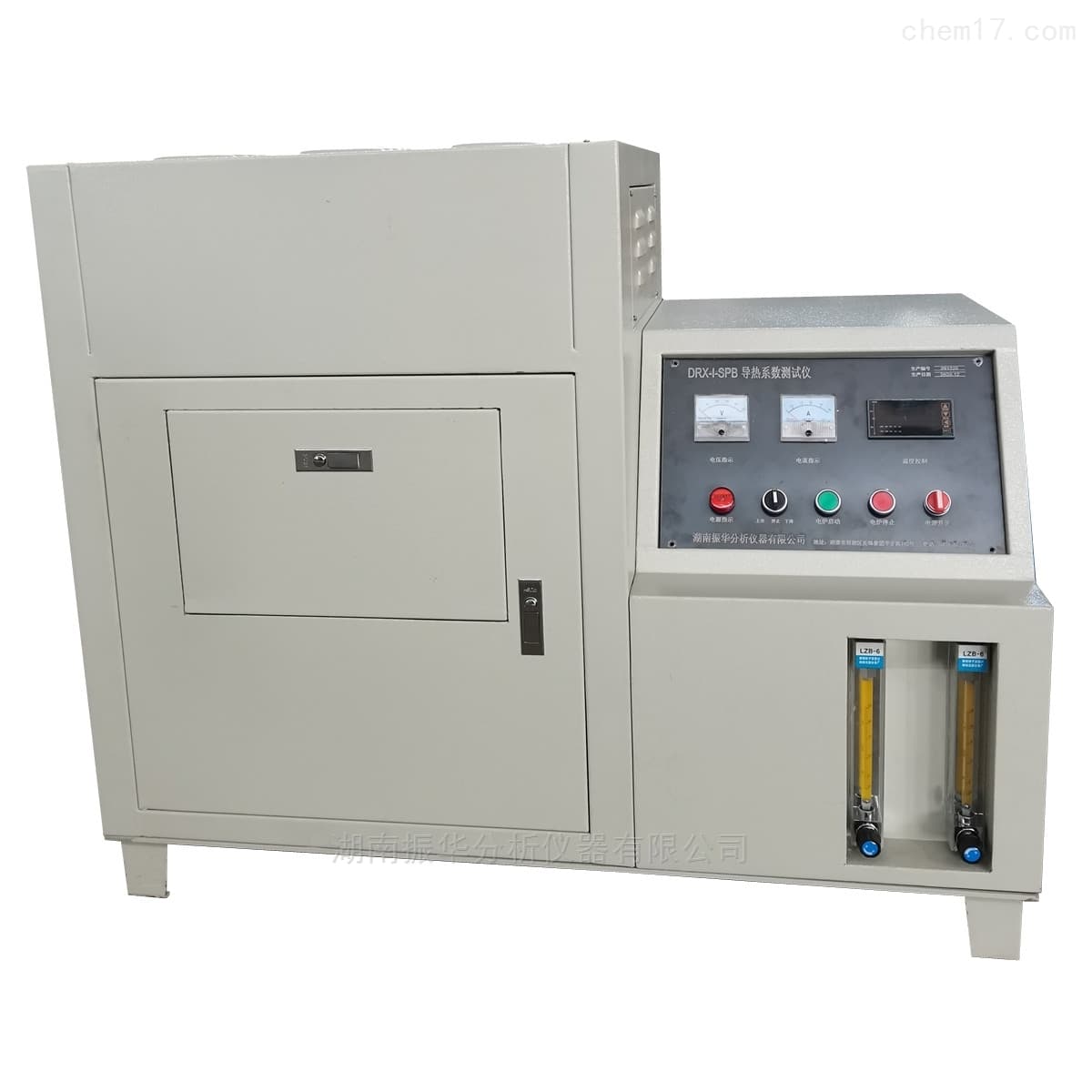

Thermal Conductivity Analyzer for Refractory and Ceramic Fiber Products
Published: 8/24/2021
Automated apparatus for measuring the thermal conductivity of refractory materials, ceramic fiber products, and insulating bricks/boards. Designed for low-conductivity materials with precise temperature control and standards-based testing workflows.
Product Description
The DRX-I-SPB measures thermal conductivity of refractory ceramics, ceramic fiber products, insulating bricks, insulating boards, and powder materials. It supports multi-layer specimen testing and targets low thermal conductivity ranges relevant to thermal insulation applications.
The system follows GB/T 17911.8-2002 and YB/T 4130-2005 (water-flow guarded hot plate method), using an industrial PC for fully automated control, data acquisition, and report generation. A closed-loop temperature control and circulating water system enhance stability and measurement repeatability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thermal Conductivity Range | 0.03–2.7 W/(m·K) |
| Accuracy | ±5% |
| Maximum Temperature Options | 1000°C, 1400°C, 1600°C |
| Specimen Size (Max) | 230 × 230 × 65 mm |
| Customization | Specimen dimensions customizable per user requirement |
| Heater Power Control | Metered adjustable; computer-controlled available |
| Circulating Water Flow | 10 g/s |
| Multi-Layer Testing | Up to 3 layers simultaneously |
| Standards Compliance | GB/T 17911.8-2002; YB/T 4130-2005 (water-flow guarded hot plate method) |
| Control And Data | Industrial PC automated control; automatic recording and report printing |
