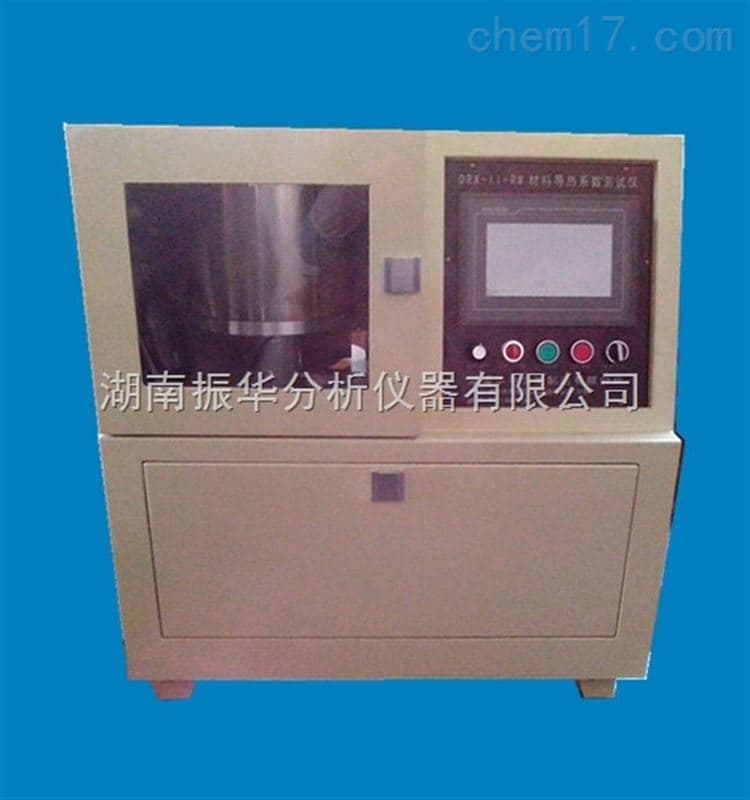

High-Temperature Thermal Conductivity Tester for Insulating Sheets
Published: 5/10/2019
High-temperature tester based on longitudinal heat-flow method for determining thermal conductivity, thermal diffusivity, and specific heat of diverse materials. Suitable for insulating sheets, thermally conductive resins, glass fiber, and other solids, powders, coatings, films, liquids (with dedicated fixture), and anisotropic samples within 0.5–100 W/m·K.
Product Description
The instrument employs a longitudinal heat-flow technique to deliver fast and precise measurement of thermal properties across a broad range of material forms, including bulk solids, powders, thin films, coatings, liquids with a dedicated fixture, and anisotropic materials. It supports standardized testing workflows aligned with GB 5598-85, GB 11205-89, MIL-I-49456A, and ASTM D5470-06 for applications such as insulating sheets, thermally conductive resins, and glass fiber composites.
An integrated software platform automates test execution, parameter analysis, and report generation, while interchangeable connectors and fixtures enable testing under different environments. The system accommodates solid samples with diameters from 15 to 50 mm and thicknesses from 1 to 50 mm, supporting routine R&D and quality control measurements from ambient to elevated temperatures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thermal Conductivity Range | 0.5–100 W/m·K |
| Thermal Conductivity Accuracy | ≤±3% |
| Thermal Conductivity Repeatability | ≤±1% |
| Thermal Diffusivity Measurement Accuracy | 5% |
| Specific Heat (Cp) Measurement Accuracy | 7% |
| Measurement Temperature Range | 20–300 ℃ |
| Measurement Capabilities | Thermal conductivity, thermal diffusivity, specific heat (comparative method) |
| Sample Types | Solids, powders, coatings, films, liquids (with dedicated device), anisotropic materials |
| Solid Sample Dimensions | Diameter 15–50 mm; thickness 1–50 mm |
| Standards Compliance | GB 5598-85; GB 11205-89; MIL-I-49456A; ASTM D5470-06 |
| System Requirements | Complete test system with software platform |
| Software Features | Fully automatic thermal analysis, parameter processing, and report output |
| Connectivity/Fixtures | Compatible with multiple connectors for varied environments |
