Conductive Material Physical Property Analyzer
Published: 9/16/2020

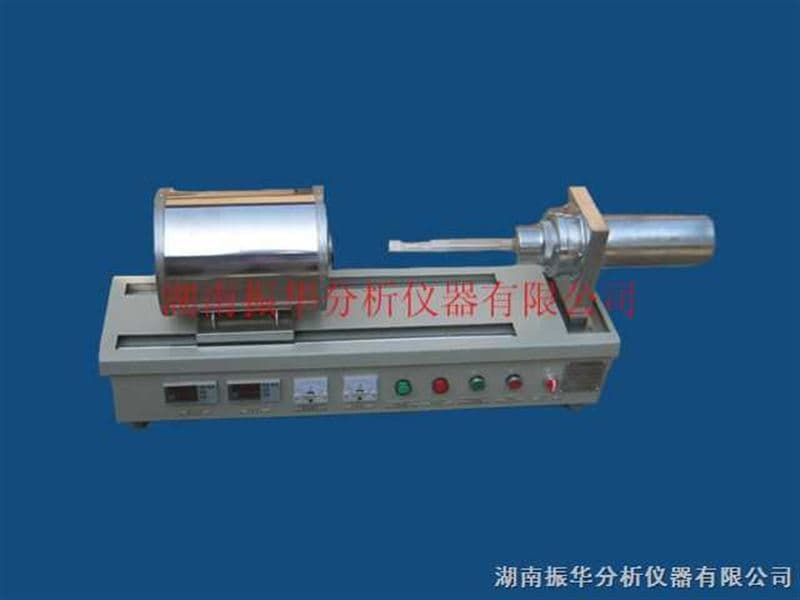

The RPT-II is a multifunction analyzer for conductive materials, combining measurements of electrical and thermal properties with thermal expansion. It is suited for research and teaching on semiconductors, graphite and electrode materials, metals, and non-metals including glass and ceramics.
Product Description
The RPT-II integrates multiple test modules to characterize conductive materials in a single platform. It measures electrical conductivity and resistivity, thermal conductivity, and the coefficient of thermal expansion over a controlled temperature range.
Designed for laboratory workflows, the system supports automated analysis via a connected industrial PC and software, enabling repeatable heating/cooling profiles and high-precision dimensional change measurements for diverse materials in R&D and academic environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Modules | Coefficient of thermal expansion; Electrical conductivity; Thermal conductivity; Resistivity |
| Temperature Range | Room temperature to 1000 ℃ |
| Temperature Measurement Accuracy | 0.1 ℃ |
| Heating Rate | 0 to 10 ℃/min |
| Cooling | Natural cooling and programmable/controlled cooling |
| Sample Dimensions | Ø4 × 100 mm; Ø6 × 100 mm; Ø8 × 100 mm |
| Deformation (Displacement) Measurement Range | 0 to 5 mm |
| Deformation Measurement Accuracy | 0.1% |
| Displacement Resolution | 1 μm/digit; 0.1 μm/digit |
| Analysis Software | Fully automatic analysis, industrial PC linked |
