High-Temperature Material Property Tester
Published: 8/24/2021
The SQW-II-14 measures comprehensive thermo-mechanical properties of inorganic non-metallic materials and molding mixtures from ambient to 1400°C. It supports tests such as thermal expansion, high-temperature compressive strength, thermal expansion force, creep/deformation under load, residual strength, and room-temperature compressive strength.
Product Description

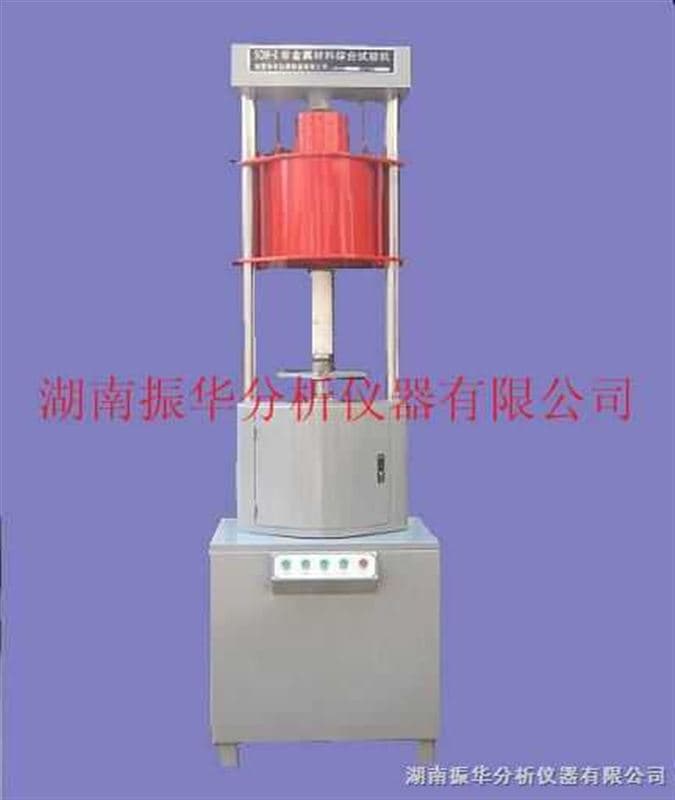

The SQW-II-14 High-Temperature Material Property Tester is designed for research institutes, universities, and industrial laboratories to evaluate the thermo-mechanical behavior of inorganic non-metallic materials and foundry molding mixtures. It simulates conditions up to 1400°C to assess dimensional change, strength, and deformation under controlled loading and temperature profiles.
A silicon carbide tube furnace provides uniform heating with user-defined, constant-rate temperature programs across two programmable segments. The system enables manual loading control to study load-dependent deformation and strength, while integrated displacement and force measurement deliver high-precision results for development, quality control, and process optimization.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sample Geometry | Ø30 × 50 mm conical specimen |
| Load Range | 0–28.29 MPa (0–2000 kg) |
| Deformation Measurement Range | 0 to ±5 mm; Display resolution: 0.01 mm |
| Heating Temperature Range | Ambient to ≥1350°C (short-term up to 1400°C) |
| Force Measurement Accuracy | < ±1% FS |
| Deformation Measurement Accuracy | < ±1% FS |
| Heating Rate Control | User-set, constant-rate, program control, 2 program segments |
| High-Temperature Furnace | Silicon carbide tube; Chamber size Ø50 mm; Furnace power 2.5 kW |
| Loading Speed | 0.8–8 mm/min, manual adjustment |
| Main Unit Dimensions (L × W × H) | 720 × 500 × 1644 mm |
| Control Cabinet | Desktop or floor-standing |
| Total Weight | 500 kg |
| Total Power Consumption | < 3 kW |
| Operating Environment | 0–40°C; Relative humidity < 85% RH |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Site Requirements | No strong magnetic interference, no severe vibration, no corrosive gases; reliable protective earth |
