High-Temperature Contact Angle Analyzer
Published: 8/24/2021
High-Temperature Contact Angle Analyzer GFT measures wettability and contact angles of metals and inorganic materials under controlled high-temperature conditions. It captures real-time silhouette evolution during sintering, softening, melting, and liquefaction to support surface tension and wetting angle calculations.
Product Description

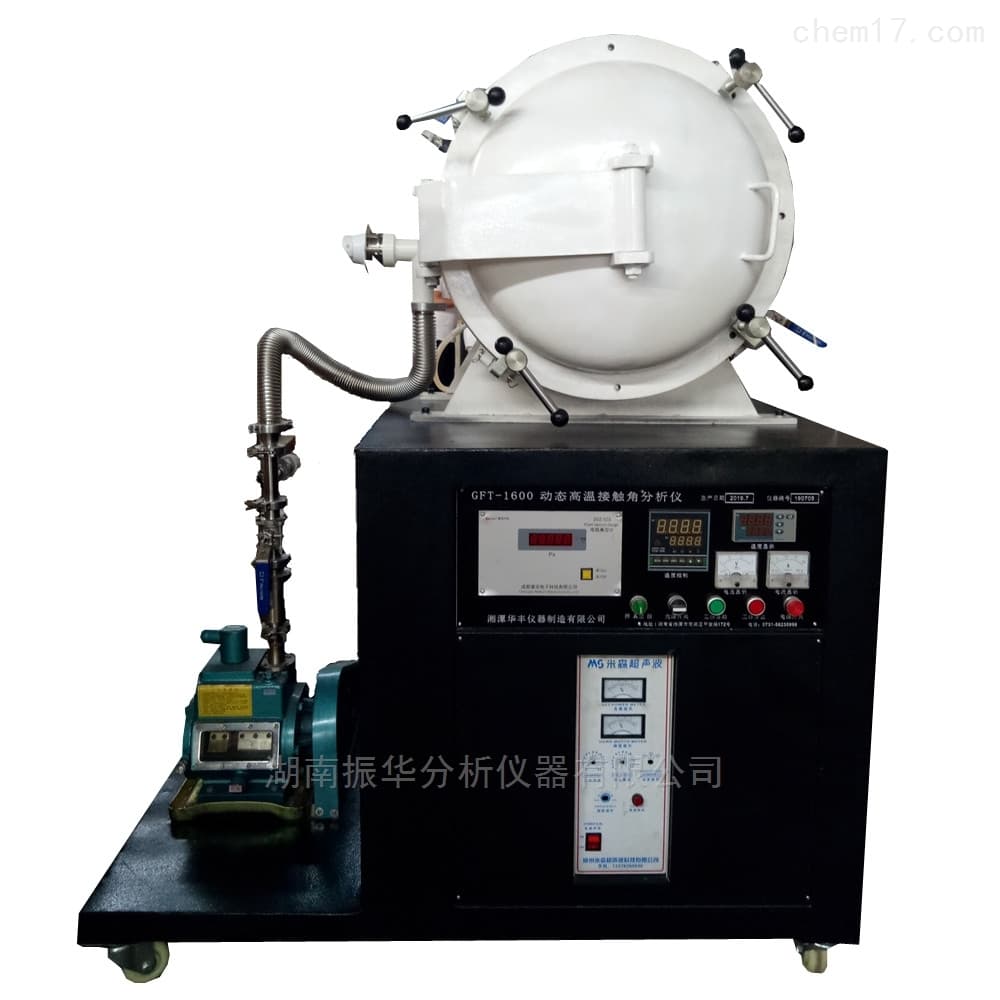

The GFT High-Temperature Contact Angle Analyzer is a transmissive imaging system designed to evaluate interfacial wetting behavior and contact angles of diverse materials as temperature changes. During programmed heating, the instrument continuously monitors the sample profile from sintering through liquefaction, while synchronously recording images with associated temperature and height data for post-analysis.
A CCD-based imaging module displays live profiles on a computer, enabling dynamic data acquisition throughout the heating cycle. The system offers high temperature measurement accuracy and repeatability, making it suitable for R&D laboratories assessing high-temperature material properties and for routine testing in industries such as metallurgy, chemicals, power generation, and coal.
Temperature control is microprocessor-driven with a predefined or manual control curve using a Type-B thermocouple positioned in the furnace wall. The illumination system provides adjustable brightness to enhance edge definition for contour and angle analysis, and dedicated software performs contact angle calculations under different thermal conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Imaging | CCD camera, real-time dynamic acquisition and display on computer |
| Temperature Range | RT to 1700 ℃ (continuous use ≤1600 ℃) |
| Temperature Accuracy | ±2 (full scale) |
| Temperature Resolution | ±1 ℃ |
| Heating Element | Molybdenum-rhodium wire, 1.5 mm diameter |
| Maximum Temperature (Mo-Rh Furnace) | 1700 ℃ |
| Maximum Temperature (Mo Wire In Protective Atmosphere) | 1750 ℃ |
| Temperature Control | Microprocessor program control; Type B thermocouple in furnace wall; curve-based or manual control |
| Illumination | 6 V, 30 W instrument lamp, brightness adjustable or fixed; LED monochrome cold light source option, brightness adjustable |
| Power Supply | Single-phase 220 V, 50 Hz |
| Protections | Over-temperature protection; over-current protection |
| Application | Contact angle analysis of different material interfaces at various temperatures via software |
| Image Acquisition (Industrial USB CCD) | ≥5 megapixels; 25 fps |
| Microscope Magnification | 0.7–4.5× continuous zoom; total magnification 20–200× |
| Imaging Resolution | 2048 × 1536 |
| Camera Interface | USB 2.0 digital CCD, 5 MP, 25 fps |
| Lens | 0.7–4.5× continuous zoom; image magnification 50–318 pixel/mm |
| Focusing | X/Y/Z with tilt adjustment, manual |
| Light Source (Imaging) | LED monochrome cold light, adjustable |
| Main Configuration | High-temperature vacuum chamber furnace (1600 ℃ use temperature) ×1; imaging system ×1; specimen platform ×1; test software ×1 |
