Vertical Coefficient of Thermal Expansion Tester for Non-metallic Materials
Published: 1/22/2025
A vertical dilatometer for determining linear thermal expansion of non-metallic materials, glass, ceramics, graphite, polymers, and composites. It supports automated measurement and analysis with microcomputer control and optional offline manual testing for laboratory and quality control applications.
Product Description

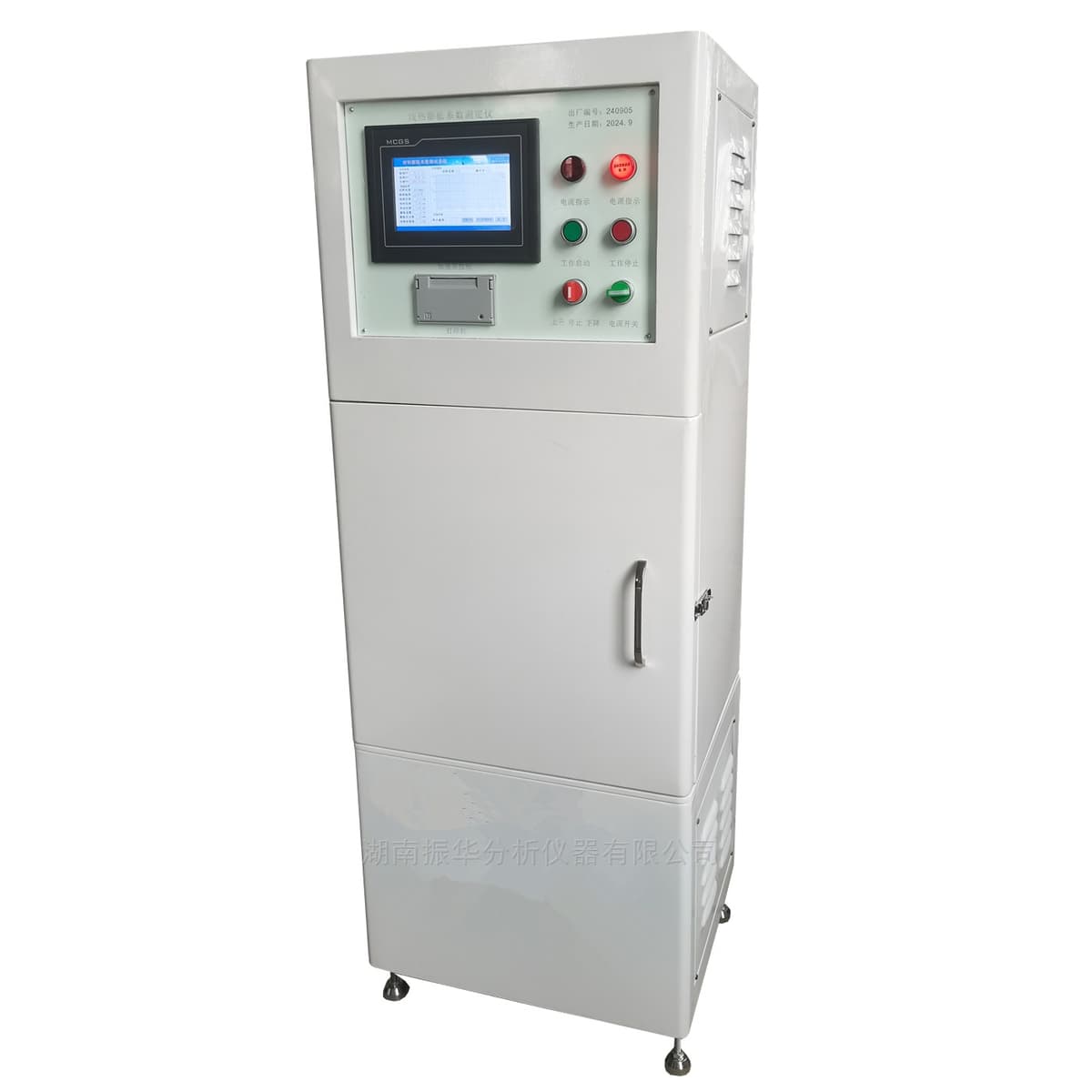

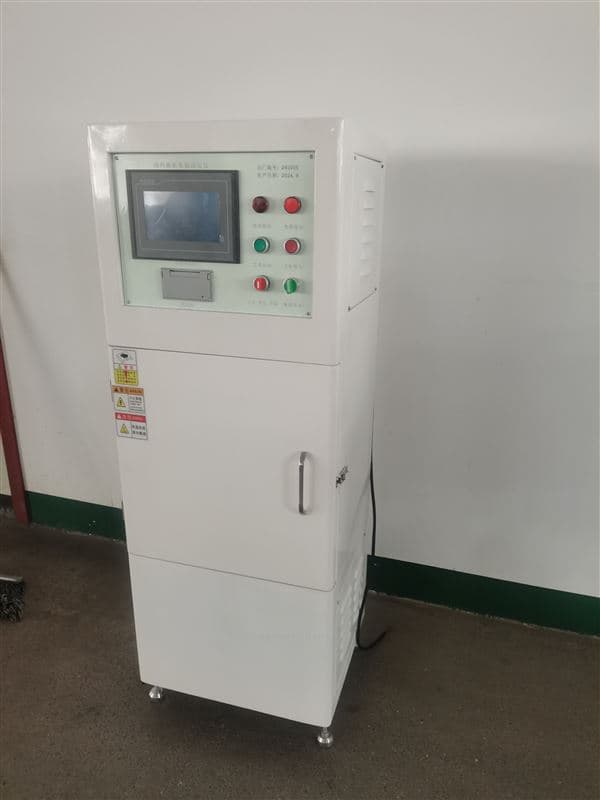

The PZY-III-10/14/17 is a vertical thermal expansion tester designed to measure linear expansion and contraction of large or standard specimens across configurable temperature ranges. It employs microcomputer-based control to monitor and regulate displacement and temperature throughout the test, with optional offline manual operation and on-line automated testing.
The system is suitable for glass rods, tubes, plates, and finished parts, and complies with YBB00202003-2015 for pharmaceutical glass linear expansion testing as well as GB/T 32158-2015 and GB/T 3074.4 sample preparation requirements. Data processing calculates the linear coefficient of thermal expansion and generates temperature–expansion curves; results can be stored, reviewed, and printed via the integrated mini printer.
Technical Specifications
| Parameter | Specification |
|---|---|
| Furnace Temperature Options | -200–100°C, 1000°C, 1400°C, 1600°C (selectable) |
| Heating Rate | 0.1–20 K/min (settable); typical ≤5 K/min; PID parameters and communication configurable |
| Displacement Measurement Range And Error | ±5 mm, ±0.1% |
| Temperature Control Accuracy | ±1°C; temperature recording error ≤±0.5% |
| Low-Temperature Cooling | Liquid nitrogen or other cold source (model dependent) |
| Displacement Resolution | 0.1 μm |
| Sample Dimensions | Length up to 50 mm (max); diameter 20–50 mm (max); custom sizes on request |
| Test Atmosphere | Vacuum (10^-1 mbar), static or dynamic; inert or reactive gases; higher vacuum options customizable |
| Sample State | Solid or powder (with dedicated molds) |
| Sample Holders | Quartz, alumina (selected per temperature requirements) |
| Operation Mode | Vertical, single or dual push-rod optional; microcomputer control; offline manual or online automatic testing |
| User Interface | Industrial color touchscreen; multi-level user access with password login |
| Data Handling | Automatic calculation of linear CTE and expansion; temperature–expansion curve display and recording; data storage, viewing, and mini printer output |
| Cooling | Built-in air-cooling to accelerate post-test cooldown for higher throughput |
| Applications | Thermal expansion coefficient, softening temperature, glass transition temperature, phase transitions, density change, and rate-controlled sintering (RCS) studies |
| Standards | YBB00202003-2015 (pharmaceutical glass linear CTE), GB/T 32158-2015, GB/T 3074.4 |
