Refractory Material Thermal Shock Tester
Published: 8/24/2021
Bench-top thermal shock tester designed to evaluate the thermal shock resistance of refractory products and other non-metallic materials. Compliant with YB/T 376.1 and YB/T 2206.1-1998 test methods, with options for compressed-air quench and water quench.
Product Description

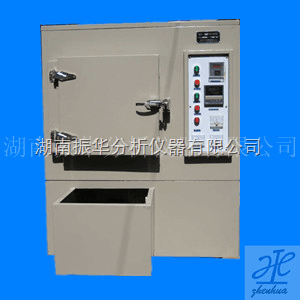

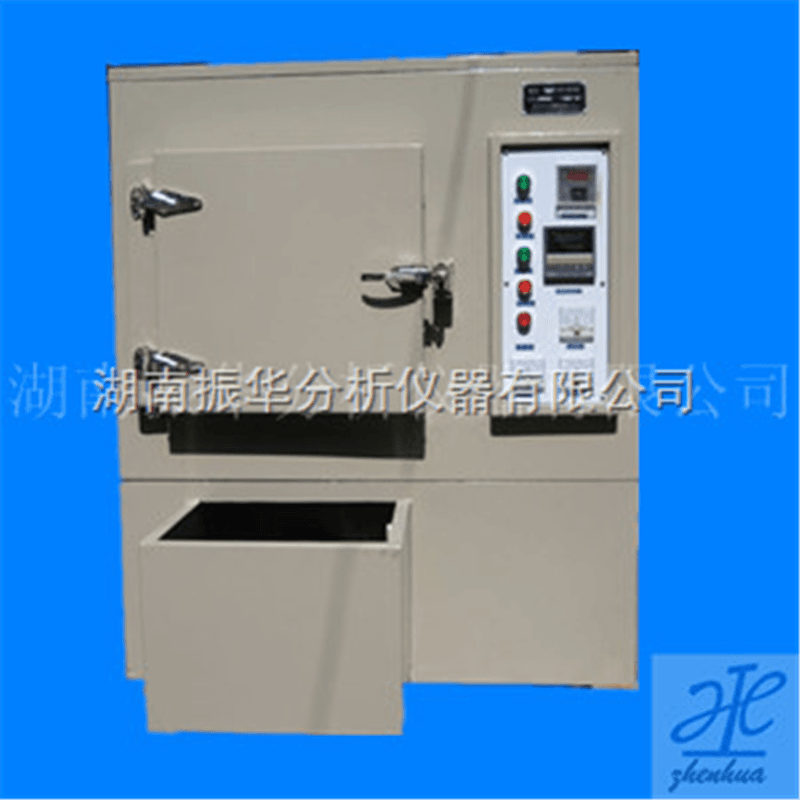

The RZL-14/16 thermal shock tester assesses the resistance of refractory bricks, ceramics, glass, graphite, and silicate products to rapid temperature changes. The fixture can rotate horizontally to simplify specimen loading and to allow clear observation of end-face damage during cycling.
The system is built to the requirements of YB/T 376.1 and meets YB/T 2206.1-1998, offering two cooling methodologies: compressed-air flow and water quench. Optional automatic program control provides digital display and automatic recording of thermal shock cycle counts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Furnace Working Temperature | 1400°C or 1600°C (selectable) |
| Uniform Temperature Zone Size | Determined by specimen size |
| Uniform Zone Temperature Difference | ±2°C between any two points |
| Temperature Control Accuracy | ±2°C |
| Cold Charge Recovery Time To Setpoint | 5 minutes |
| Compressed-Air Method Air Pressure | 0.1 MPa |
| Compressed-Air Nozzle Size | φ8 × 5 mm |
| Furnace Chamber Size (W×D×H) | 300 × 300 × 400 mm (customizable per specimen) |
| Specimen Capacity | 3 standard bricks per test |
| Three-Point Bending Maximum Stress | 0.3 MPa |
| Three-Point Bending Stress Error | 1% |
| Water Quench Water Temperature | 20°C ±0.5°C |
| Upper Anvil Nose Radius (Three-Point Bend) | R5 |
| Lower Supports Span | 100 mm |
| Power Supply | 3 × 220 V, 50 Hz |
| Power Consumption | 6 kW |
| Control Features | Optional automatic program control, digital display, automatic thermal shock cycle recording |
