Silicate Rapid Chemical Composition Analyzer
Published: 8/24/2021
Benchtop analyzer for rapid wet-chemical determination of major oxides and selected trace components in ceramic raw materials and related inorganic non-metallics. Optimized for fast turnaround in QC labs across ceramics, refractories, building materials, and geology.
Product Description

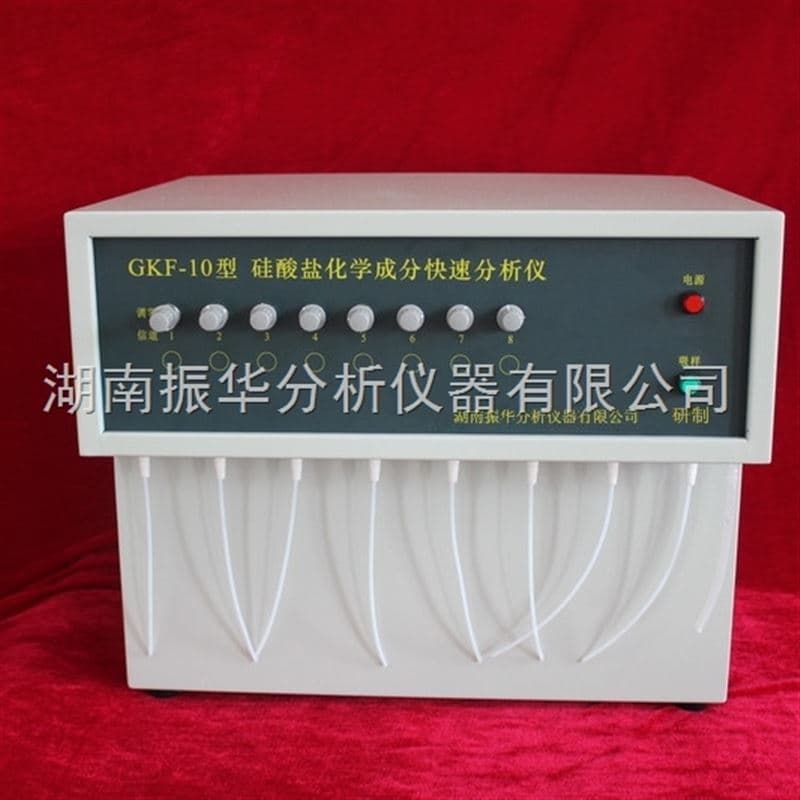

The GKF-V10 analyzer provides rapid, batch-oriented chemical analysis of silicate-based raw materials such as feldspar, clays, kaolin, limestone, dolomite, calcite, bauxite, and quartz. It supports full analysis of conventional oxides and selected additives, enabling laboratories to shorten turnaround from sample weighing to validated results for routine quality control and process monitoring.
The system enhances stability and repeatability through refined hardware and software workflow and supports expanded element coverage. It can be configured with application-specific methods to meet special analytical requirements, and is supplied as a complete set including the main analyzer, data processing system, flame photometer, silver crucibles, and an ultrasonic cleaner.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Scope (Major Oxides In Ceramic Raw Materials) | SiO2: 0.10–95.00%; Al2O3: 0.10–95.00%; Fe2O3: 0.10–15.00%; TiO2: 0.10–15.00%; CaO: 0.10–60.00%; MgO: 0.10–60.00%; K2O: 0.10–15.00%; Na2O: 0.10–15.00% |
| Quartz (High-Purity) | SiO2 > 98.00% (platinum crucible required) |
| Zircon (Zirconium Silicate) | Zr, Si, Fe, Ti (applicable) |
| Frits And Glazes | 8 conventional elements plus Zr, Co, Pb, B, Ba, Zn, Cr (applicable) |
| Spodumene And Lepidolite/Feldspar | 8 conventional elements plus Li (applicable) |
| Titanium Powder | Ti (applicable) |
| Ceramic Raw Materials | P2O5 (applicable) |
| Chemical Raw Materials | Mn oxides (applicable); Co oxides (applicable); Ni oxides (applicable); ZnO: > 90% (applicable); BaO (applicable) |
| Low-Level Components In Electrical Porcelain And Glass | Fe2O3: 0.005–0.200%; K2O: 0.02–0.10%; Na2O: 0.02–0.10%; P2O5: 0.02–0.10%; MnO: 0.02–20%; CoO: 0.10–70%; Cr2O3: 0.10–40% |
| Accuracy | Meets or exceeds GB/T 4734-1996 and QB/T 2578-2002 accuracy requirements for relevant elements |
| Analysis Time (Typical) | 2–3 h for 8 conventional items from weighing to final results; 4–5 h for full item set |
| Batch Capacity (Max Concurrent Multi-Sample Run) | 20 samples |
| Supply Scope | Main analyzer (1 set); Data processing system (1 set); Flame photometer (1 set); Silver crucibles (2 sets); Ultrasonic cleaner: 50 W |
| Configuration | Customizable analytical schemes available upon request |
