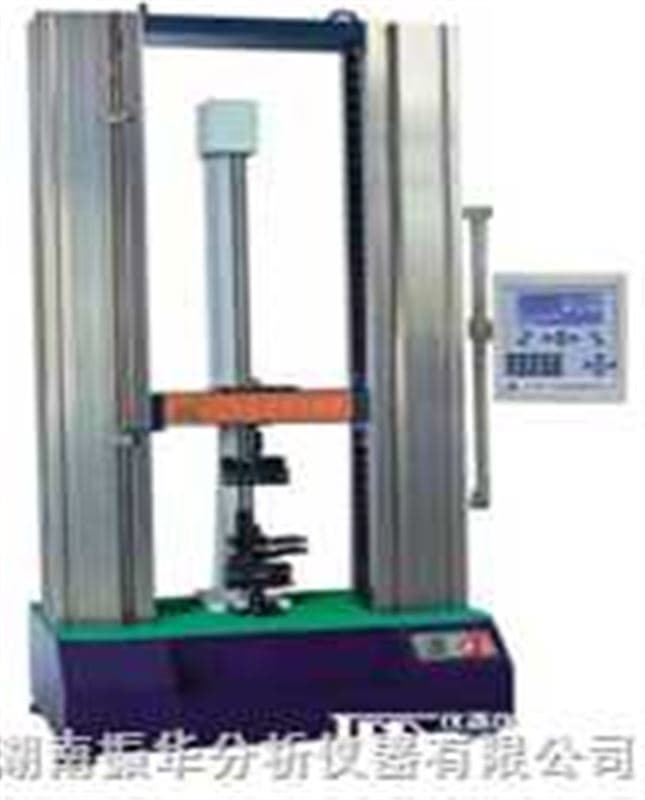

High-Temperature Tensile/Compressive Strength Testing Machine
Published: 7/12/2017
High-temperature universal testing system for tensile or compressive strength evaluation of metals, ceramics, refractories, polymers, composites, and fiber-reinforced cement. Designed in reference to GB/T 15231.4-94 methods with multiple force and furnace temperature options for laboratory and industrial applications.
Product Description
The KGP system evaluates tensile and compressive strength of materials under elevated temperatures, supporting a broad range of specimens including metals, ceramic pieces, refractories, plastics, composite panels, polymers, and fiber-reinforced cement. It is engineered with reference to GB/T 15231.4-94, providing reliable high-temperature mechanical testing capability with selectable load capacities and furnace temperature ranges.
The instrument features a digital display and precision measurement chain, and supports data connectivity to external computers for analysis and reporting. Configurable span and head travel enable adaptation to various specimen sizes and test methods.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Force Options | 5 kN; 10 kN; 30 kN; 50 kN; 100 kN; 150 kN; 200 kN; 300 kN |
| Test Temperature Options | 1000 ℃; 1400 ℃; 1700 ℃ |
| Display | LED, 5 digits |
| Instrument Accuracy | 0.02 % |
| System Accuracy | 0.1 % to 0.3 % FS |
| Display Resolution | 1 N |
| Decimal Setting | Selectable decimal point; segmented range testing |
| Interfaces | RS232 or USB 2.0; optional test software |
| Indication Relative Error | ±1 % |
| Crosshead/Indenter Speed | 5 to 1500 mm/min |
| Support Span | 200 to 1500 mm (per specimen requirements) |
| Load Cell Accuracy | 0.015 % to 0.025 % FS |
