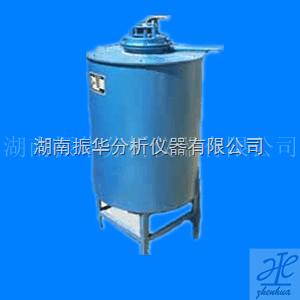

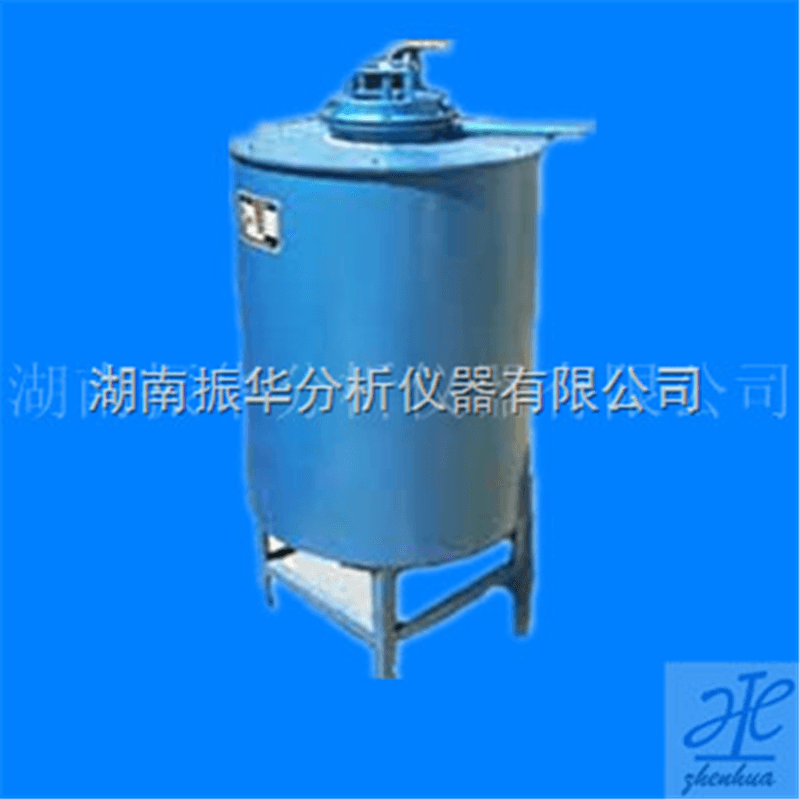

Crucible Resistance Furnace (Smelting/Flux Furnace), SG2 Series
Published: 7/20/2016
The SG2 Series crucible resistance furnace provides controlled high-temperature melting for ceramics, glass, enamel, abrasives, inorganic pigments, alloys, and composite materials. It uses automatic temperature control to heat a crucible for smelting, flux preparation, and laboratory physico-chemical experiments, and can also serve as small-scale production equipment.
Product Description
The SG2 Series is a crucible-structured resistance furnace designed for melting and flux preparation in R&D labs and light production. Typical applications include frit and glaze formulation, glass and low-temperature flux melting, enamel glaze and binder preparation, and general alloy and composite material melting, as well as related physico-chemical tests.
Material is charged from the crucible top; once melted, the product is discharged through a lower outlet into water for rapid quenching and fragmentation. Temperature is automatically managed via programmable control with PID regulation, and heating elements are selected according to the target temperature range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Control | Programmable ramp with intelligent PID |
| Power Options | 4 kW; 6 kW; 8 kW; 12 kW (varies by specification) |
| Crucible Capacity Options | 1000 ml; 2000 ml |
| Maximum Temperature Options | 1000 ℃; 1200 ℃; 1350 ℃; 1600 ℃ |
| Heating Elements | Resistance wire; Carbon rod; Molybdenum rod (selected by temperature) |
| Supply Voltage | 3-phase 4-wire, 380 V AC |
