Glass Annealing Temperature Test Apparatus
Published: 8/2/2016
Apparatus for determining the annealing temperature of glass using a programmable tube furnace and controlled isothermal zone. Suitable for research and teaching applications requiring precise thermal control and stress evaluation by polarized light methods.
Product Description

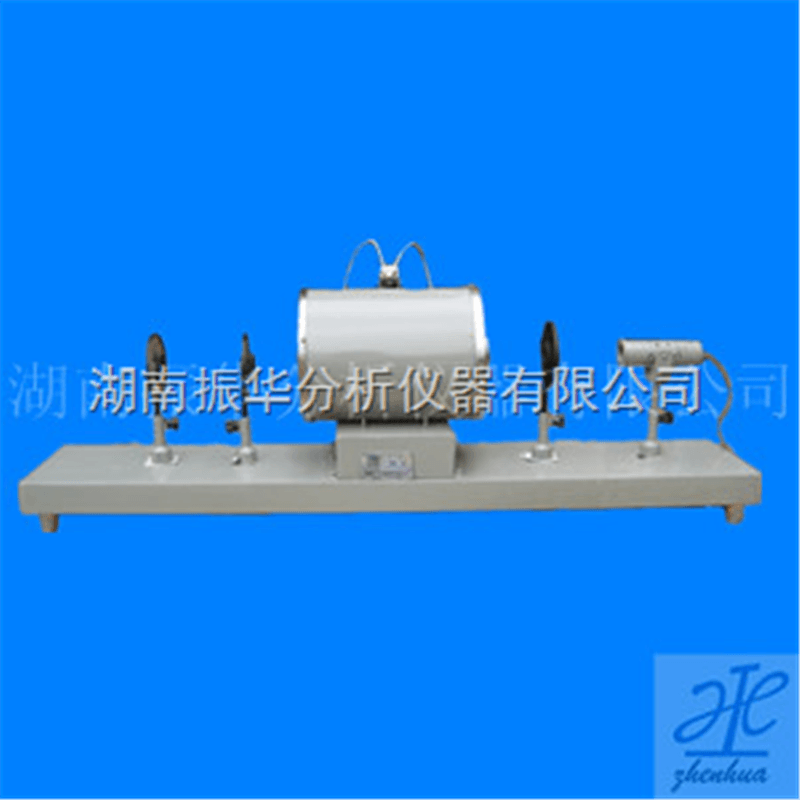

The SJY-I-10/14 Glass Annealing Temperature Test Apparatus is designed to measure the annealing temperature of glass specimens in a stable, uniform thermal environment. A high-temperature resistance-heated tube furnace with an alumina tube provides a defined constant-temperature zone, while the controller executes user-defined heating and cooling profiles for accurate characterization.
The system supports polarized light experiments for stress observation in glass during and after thermal treatment, enabling educational demonstrations and research workflows. Its PID-controlled, thyristor-regulated power stage maintains tight temperature uniformity within the working zone for repeatable, standards-aligned measurements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Furnace Maximum Temperature | 1200 ℃ |
| Working Temperature | 1000 ℃ |
| Heating Method | High-temperature resistance wire |
| Furnace Type | Tube resistance furnace |
| Furnace Tube Material | High-purity alumina |
| Furnace Tube Size | Φ30 × 300 mm |
| Constant-Temperature (Uniform) Zone Length | 100 mm |
| Temperature Control | Programmable controller with user-defined heating/cooling profiles |
| Control Algorithm | Intelligent PID |
| Power Regulation | Thyristor (SCR) voltage regulation |
| Temperature Control Accuracy (Uniform Zone) | ≤ ±1 ℃ |
| Supply Voltage | 220 V / 50 Hz |
| Power | ≤ 2 kW |
| Additional Function | Supports polarized light experiments |
