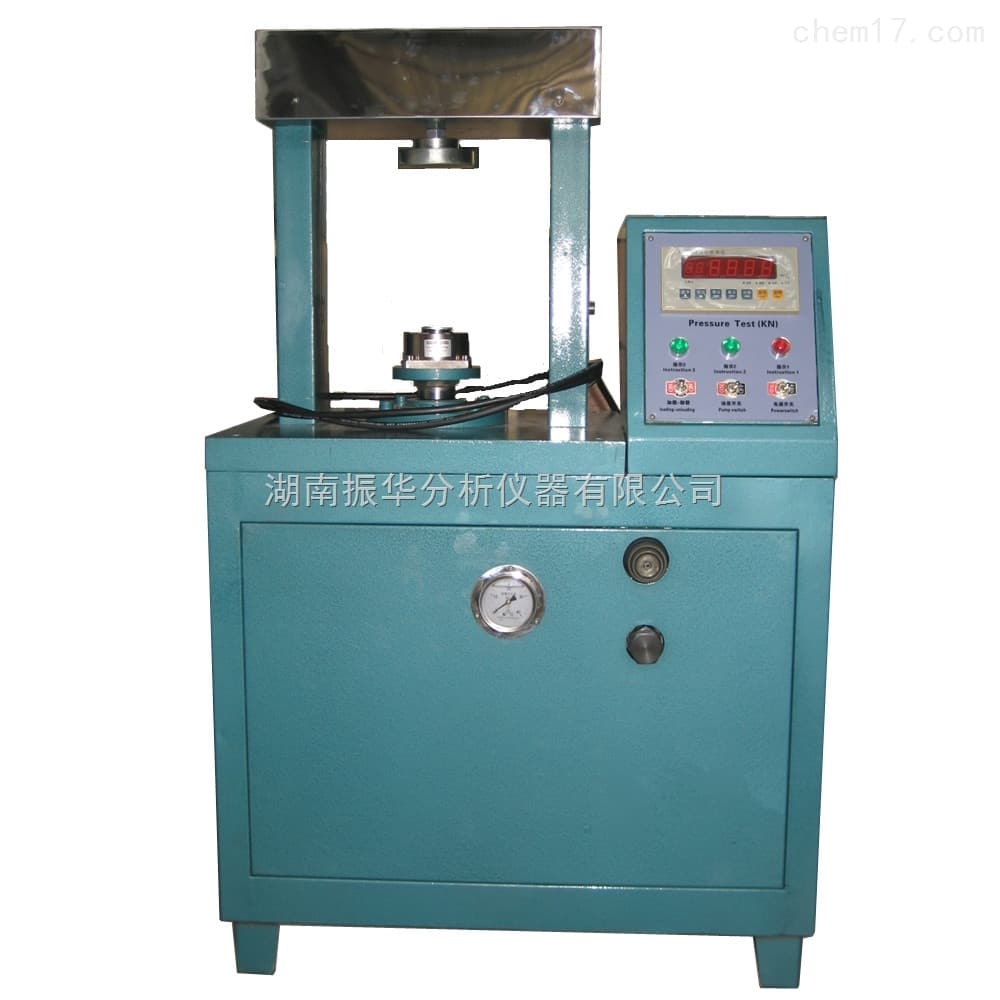

Concrete Flexural and Compressive Strength Testing Machine
Published: 3/27/2019
Hydraulic testing system for flexural and compressive strength measurements of concrete, cement, mortar, and other non-metal building materials. It provides digital load indication, loading rate display, peak load capture, and safety features for reliable laboratory testing in compliance with GB/T 3722.
Product Description
The SYD system is designed for laboratory determination of flexural strength of concrete specimens and compressive strength of cement, mortar, red brick, and other non-metallic construction materials. It uses hydraulic loading with electronic force measurement to deliver stable, accurate, and repeatable results while meeting GB/T 3722 requirements.
The machine integrates high-precision sensors and a digital display. A rotating lead screw adjusts the compression space to speed up test setup, and optional flexural fixtures enable bending tests. The unit is delivered ready to operate—once filled with oil and connected to power—and supports straightforward user calibration per the operating manual. A computer system can be added for data storage, review, and printing. The standard system configuration includes the main frame, hydraulic power/control cabinet, digital display module, and an oil pressure sensor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Load Options | 30 kN / 50 kN / 100 kN / 200 kN / 300 kN |
| Relative Indication Error | ±1% |
| Hydraulic Pump Rated Pressure | 25 MPa |
| Flexural Roller Diameter | 30 mm |
| Max Distance Between Upper And Lower Flexural Rollers | 165 mm |
| Center Distance Between Two Upper Flexural Rollers | 150 mm |
| Center Distance Between Two Lower Flexural Rollers | 450 mm |
| Bearing Plate Size | 155 mm |
| Max Distance Between Upper And Lower Compression Plates | 230 mm |
| Piston Diameter × Maximum Stroke | 125 mm × 80 mm |
| Piston Travel | 120 mm |
| Motor Power | 0.75 kW |
| Overall Dimensions (Approx., As Shipped) | 850 × 600 × 1340 mm |
| Display Functions | Digital load, loading rate, peak load |
| Protection Functions | Overload protection, power-off data hold |
| Space Adjustment | Rotating lead screw |
| Optional Module | Constant-pressure testing (specify when ordering) |
| Compliance | GB/T 3722 |
| System Configuration | Main testing frame; hydraulic power/control cabinet; digital display unit; oil pressure sensor |
