Automatic Concrete Thermal Conductivity Tester
Published: 6/4/2021
Automatic system for measuring the thermal conductivity of concrete specimens in accordance with GB/T 50081-2019 and hydropower concrete test regulations. Suitable for laboratories in universities, research institutes, and construction projects such as bridges, dams, reservoirs, and cofferdams.
Product Description

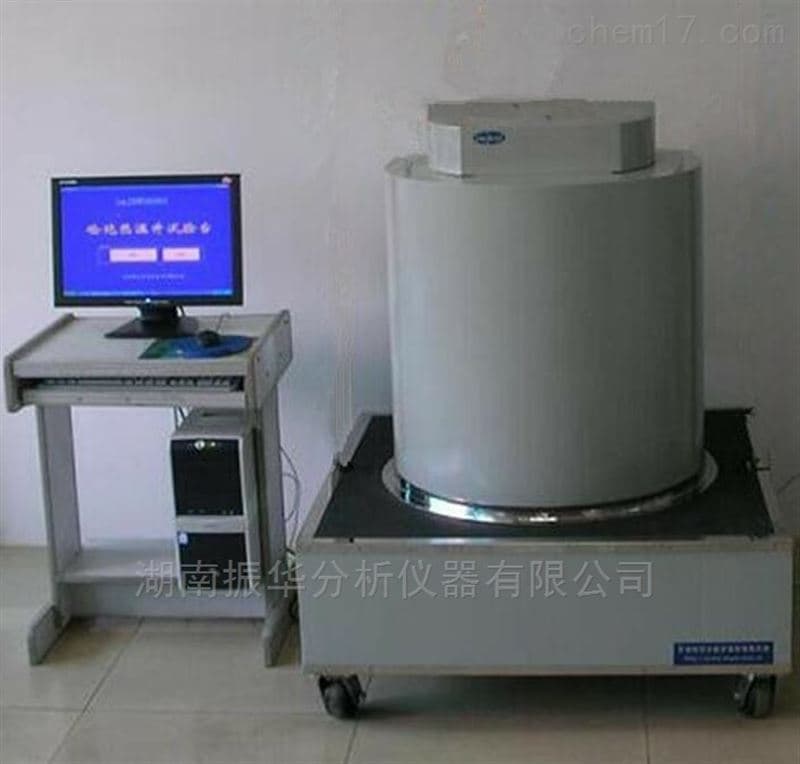

The DRX-I-300FTB is a dedicated test system designed to determine the thermal conductivity of concrete. It integrates controlled heating, temperature measurement, and data acquisition to produce standardized test reports.
The instrument complies with GB/T 50081-2019 methods for concrete physical and mechanical properties, as well as DL/T 5150-2017, SL 352-2018, and DL/T 5362-2006 for hydropower and asphalt concrete testing. Typical applications include quality control and research for building structures, road and bridge engineering, and hydraulic infrastructure such as dams and reservoirs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Heating Power | 4 kW, adjustable |
| Temperature Measurement Range | 0–100 °C |
| Temperature Measurement Accuracy | 0.1 °C |
| Timing Accuracy | 0.1 s |
| Stirring Power | ≤500 W |
| Material (Heating Tank, Cooling Tank, Specimen Rack) | Stainless steel |
| System Control | PC-connected operation with software; outputs test reports |
| Standard Compliance | GB/T 50081-2019; DL/T 5150-2017; SL 352-2018; DL/T 5362-2006 |
| Main Components | Test host (1), Specimen bucket (1), Stirring motor (1), Specimen rack (1), Test software and dedicated interface (1 set), Constant-temperature water bath (1) |
