Automatic Concrete Adiabatic Temperature Rise Tester
Published: 5/20/2024
Automated system for measuring the adiabatic temperature rise curve of concrete to evaluate heat generation during hydration. Designed for laboratory and hydropower engineering applications requiring compliant thermal performance testing of concrete and asphalt concrete mixes.
Product Description

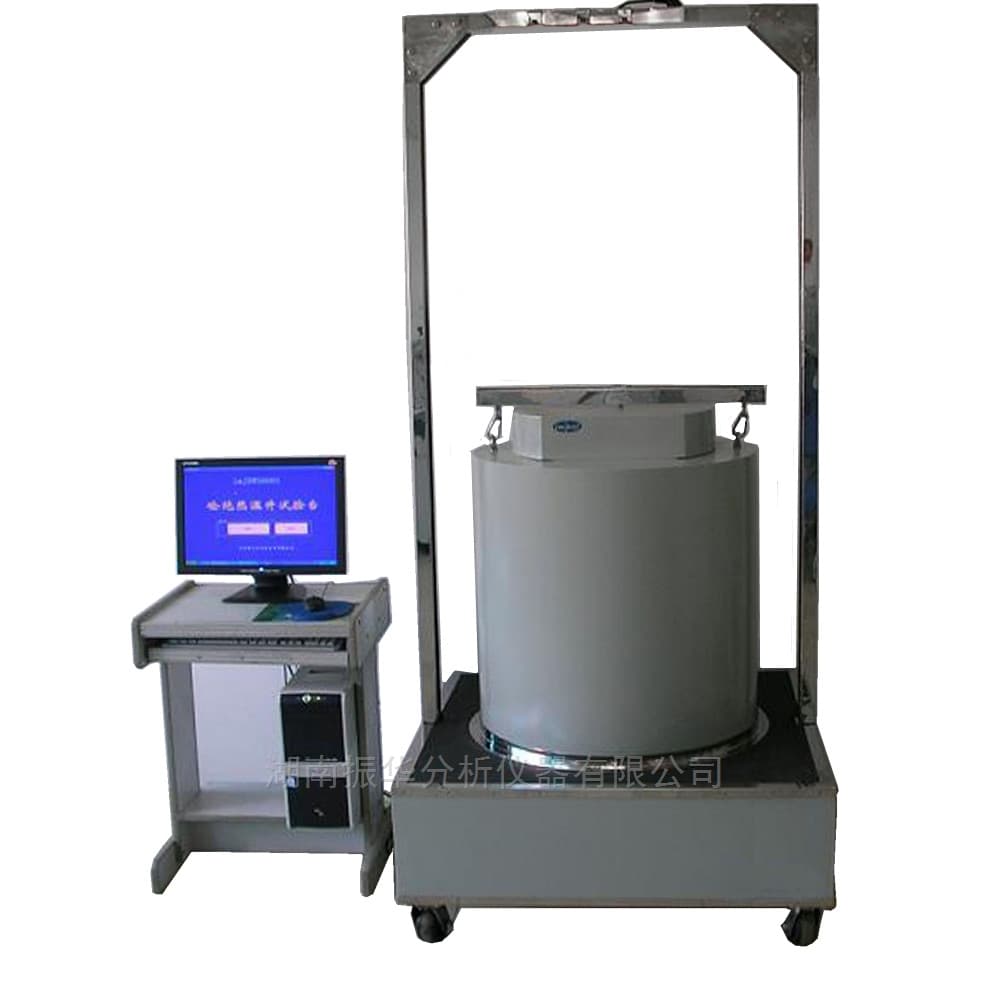

The JRWS-06A-50L Automatic Concrete Adiabatic Temperature Rise Tester determines the adiabatic temperature rise curve of concrete specimens, supporting quality control and thermal cracking risk assessment in mass concrete projects. The system integrates a stainless-steel adiabatic bucket, controlled water bath environment, PID temperature regulation, and computer-based data acquisition and reporting.
The instrument is designed to comply with GB/T 50080-2016 (Standard test method for performance of ordinary concrete mixtures), DL/T 5150-2001 and SL 3562-2006 (hydraulic concrete test regulations), and DL-T 536-2006 (hydraulic asphalt concrete test regulations). It is suitable for research institutes, construction laboratories, and hydropower engineering units that require accurate, stable, and automated thermal characterization of concrete materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Control Range | 5 ℃ to 95 ℃ |
| Temperature Resolution | 0.01 ℃ |
| Temperature Tracking Accuracy | ≤ ±0.05 ℃ |
| Water Bath Temperature Fluctuation | ≤ ±1 ℃ |
| Temperature Control Method | PID regulation |
| Cooling Method | Compressed-air refrigeration |
| Refrigeration Power | < 1.5 kW |
| Adiabatic Bucket Capacity | 50 L |
| Power Supply Voltage | 220 V |
| Power Supply Frequency | 50 Hz |
| Heating Power | 4 kW, adjustable |
| Control And Reporting | Computer-operated system with test report output |
| Adiabatic Bucket Material | Stainless steel |
| Included Components | Test host (1), control cabinet (1), adiabatic bucket (1), specimen frame (1), test software with dedicated interface (1 set), computer (1 set) |
