Automatic Concrete Thermal Conductivity Tester
Published: 8/24/2021
The Automatic Concrete Thermal Conductivity Tester measures the thermal conductivity coefficient of concrete using a computerized system. It is primarily used for testing concrete properties in accordance with hydro-engineering test standards.
Product Description

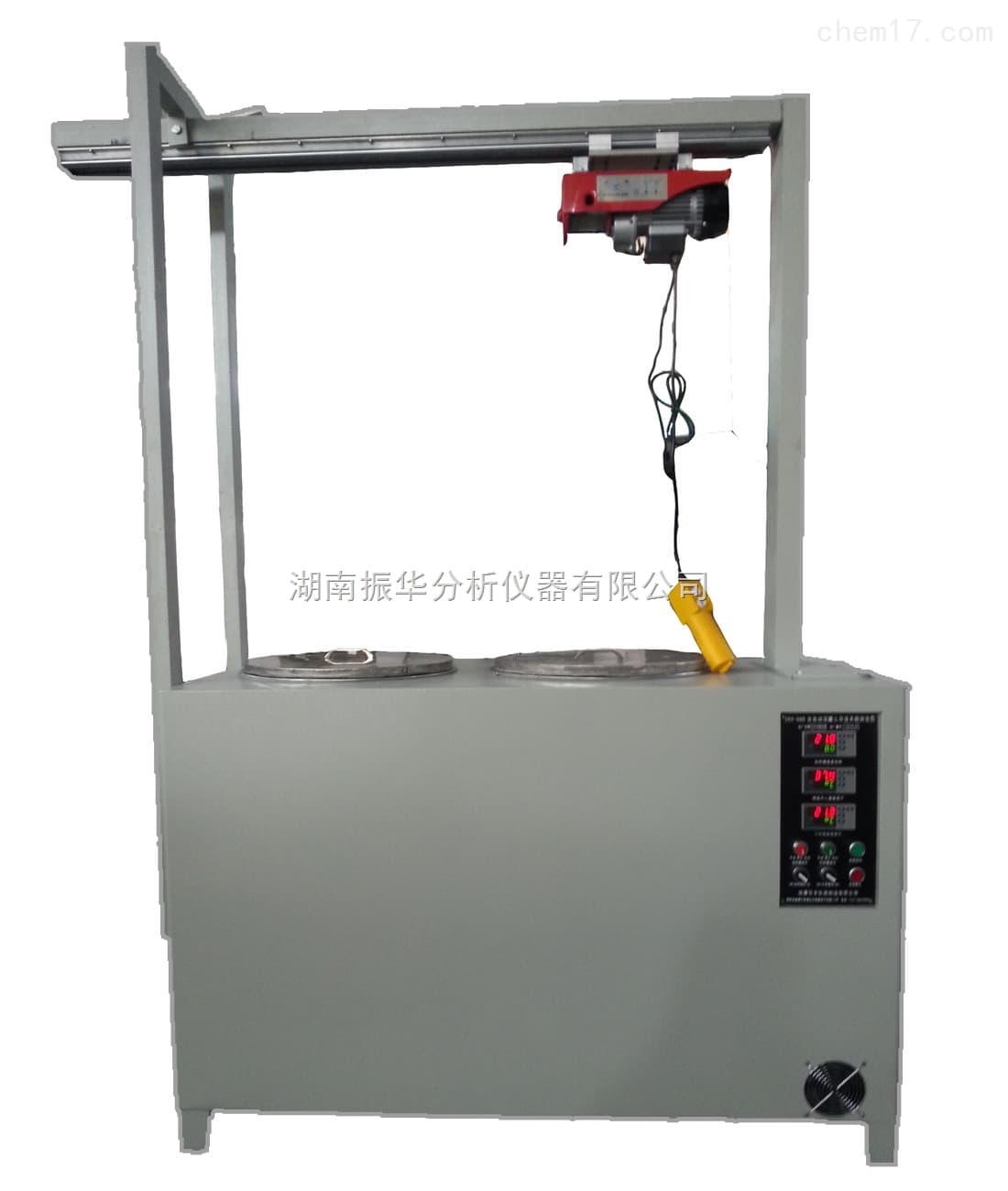

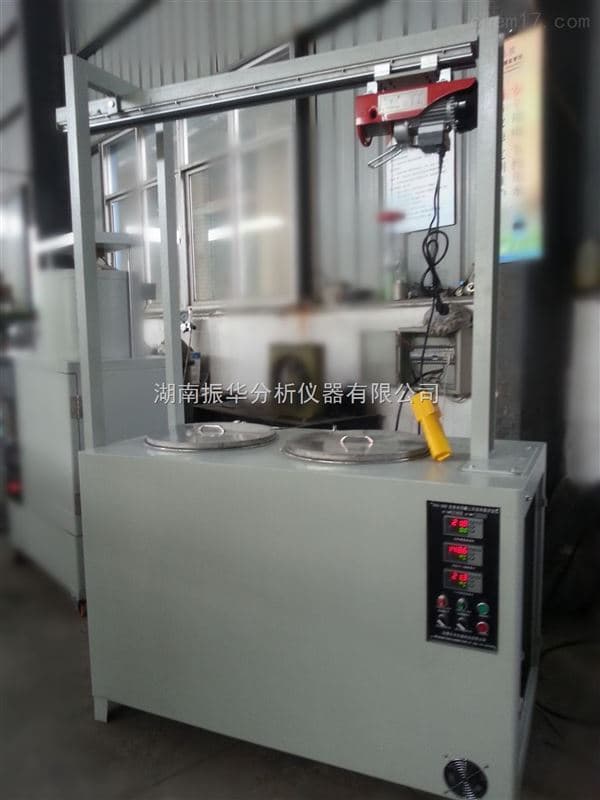

The DRX-06D Automatic Concrete Thermal Conductivity Tester is designed to meet hydro-engineering standards, including DL/T 5150-2001 and SL 3562-2006. It is equipped with a computerized system that handles the operation and provides test reports. The instrument features an adjustable heating power of 4 kW and temperature measurements ranging from 0 to 100 degrees Celsius with a precision of 0.1 degrees.
Key components of the DRX-06D include a main testing unit, a heating tank, a cooling tank, and sample holders, all crafted from stainless steel to ensure durability and precision. The system requires a computer and printer (provided by the user) to run the testing software, offering a comprehensive solution for assessing the thermal properties of concrete.
Technical Specifications
| Parameter | Specification |
|---|---|
| Heating Power | 4 kW (adjustable) |
| Temperature Measurement Range | 0-100°C |
| Temperature Accuracy | 0.1°C |
| Timing Accuracy | 0.1 seconds |
| Stirring Power | ≤500 W |
| Material | Stainless steel |
| Computer Integration | Required for operation and report output |
Contact Us for Pricing
Interested in this product? Reach out for a personalized quote or more information. Our team will respond within 24 hours.
