Resistance Temperature Characteristic Tester
Published: 12/11/2020
The Resistance Temperature Characteristic Tester measures the variation in resistance of conductive materials with temperature using advanced electronics and digital control technology. It is suitable for use in electronics material laboratories of colleges and universities for research and educational demonstrations.
Product Description

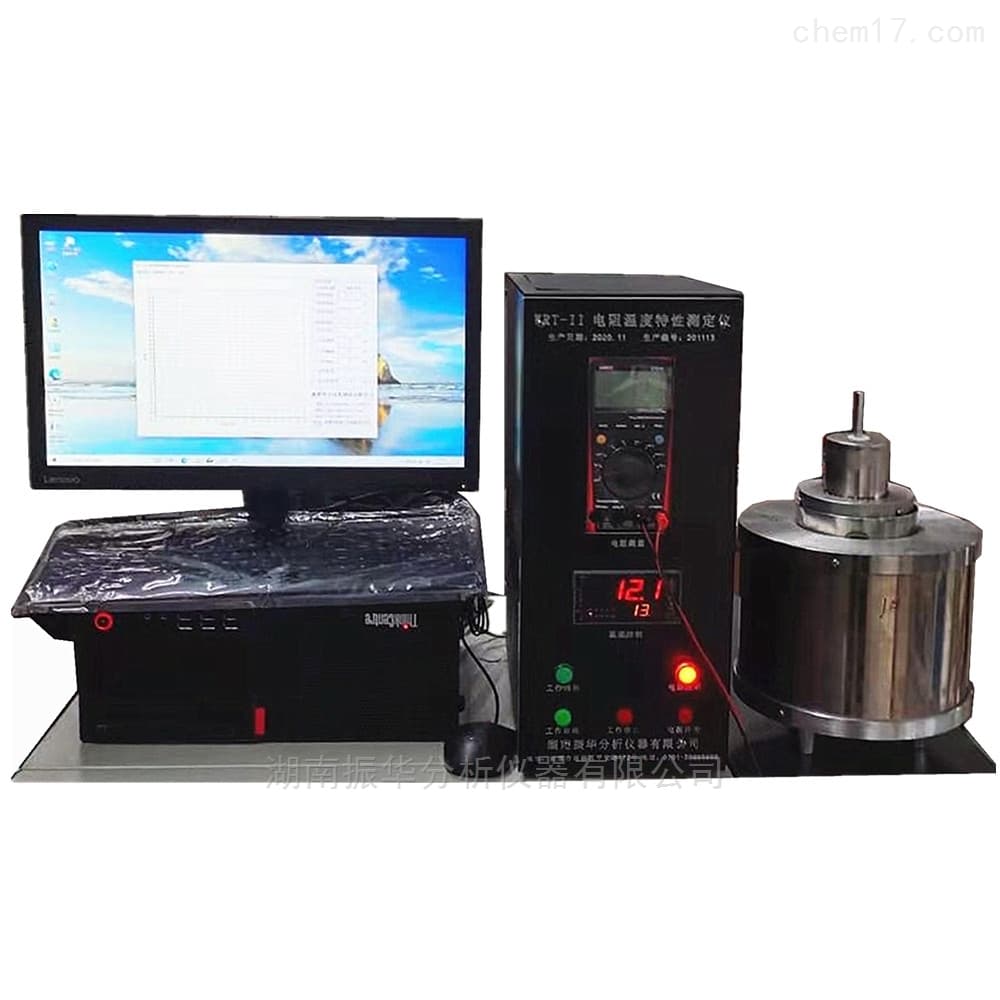

The WRT-II Resistance Temperature Characteristic Tester uses sophisticated electronic and digital control technology to test the resistance value changes of various conductive material media (resistors) with temperature. By plotting the resistance-temperature curve, users can qualitatively analyze the rate of change in resistance due to temperature variations. This instrument is ideally suited for research and demonstration purposes in electronics material laboratories at colleges and universities.
This instrument provides a straightforward means of visual analysis of the rate of change in resistance with temperature, enhancing its utility in educational settings. The device features USB connectivity for automatic data analysis and compatibility with Windows operating systems (10/7/XP).
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | Room temperature to 300°C, 600°C optional |
| Resistance Range | 0—1MΩ, 20MΩ, 100MΩ, selectable |
| Heating Power | 0—300W adjustable |
| Power Supply | 220V±10%, 50Hz |
| Operating Temperature | 0—40°C |
| Humidity | ≤85% |
| Connectivity | USB interface |
