Surface Tension Analyzer
Published: 9/16/2020
The MIL-II Surface Tension Analyzer performs surface tension tests, contact angle tests, and wettability analyses using a standardized test method. It is widely used in industries such as cleaning agents, ink, paint, coatings, water treatment, pesticides, electroplating, cosmetics, and transformer oils.
Product Description

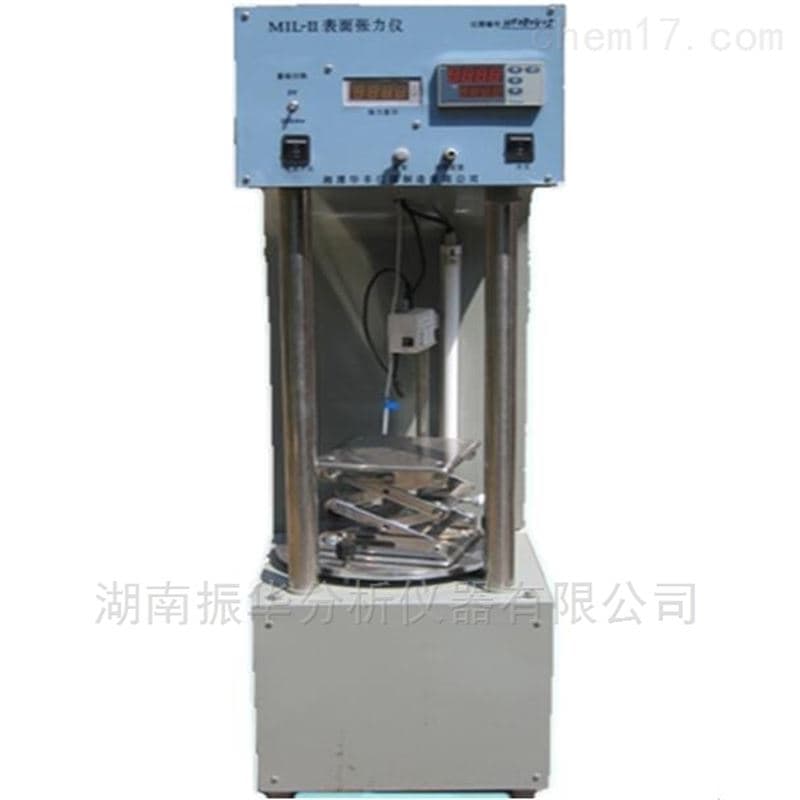

The MIL-II Surface Tension Analyzer is designed for accurate measurement of surface tension, as well as contact angles and powder wettability, with functionalities for thin film wetting analysis. It applies the principles outlined in the GB/T14216 standard, related to the wetting tension test method for plastic films. The device is equipped with software for automatic data storage and report printing outputs.
This instrument is suitable for applications in evaluating the wettability and surface energy of various substrates and coatings. It is particularly beneficial in industries demanding precise surface and interface analysis, such as cleaning agents, inks, and coatings. The system can handle contact angle measurements via CCD camera integration for automated testing, ensuring high accuracy and repeatability across its measurement range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Testing Range | 1-100 mN/m |
| Resolution | 0.1 mN/m |
| Error | 0.5 mN/m |
| Measurement Speed | 50 data/second |
| Repeatability Error | <0.3% |
| Temperature Range | -10 to 130°C |
| Temperature Resolution | 0.01°C |
| CCD Camera Resolution | >3 megapixels |
| Image Acquisition Rate | ≥30 frames/second |
| Sample Cup Diameters | 50 mm, 70 mm, 100 mm |
| Power Supply | 85-264V AC, 40-60Hz |
| Power Consumption | 40W (running), 5W (warming up) |
Contact Us for Pricing
Interested in this product? Reach out for a personalized quote or more information. Our team will respond within 24 hours.
