Thermal Conductivity Meter
Published: 3/31/2025

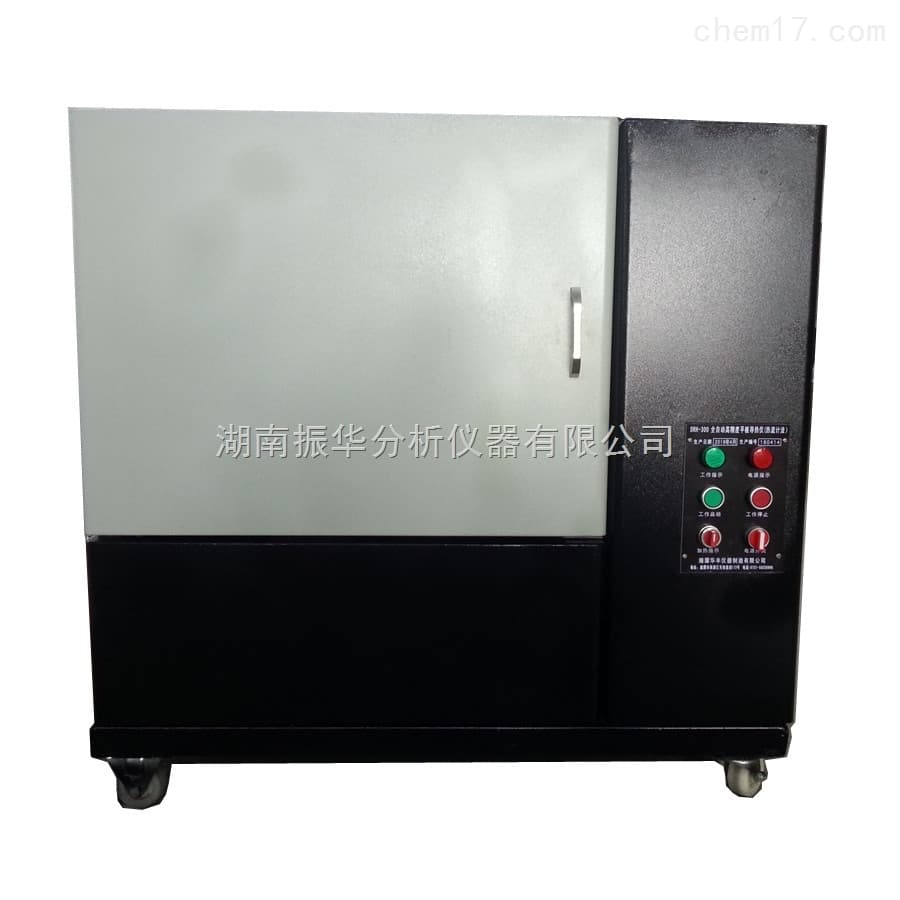

The DRX Thermal Conductivity Meter measures steady-state thermal conductivity and thermal resistance of homogeneous, plate-like insulation materials using the guarded hot plate principle. It is designed for laboratory evaluation of insulation performance in accordance with GB 10294-2008.
Product Description
The DRX series is engineered around a dual-specimen guarded hot plate architecture to determine thermal resistance R and calculate thermal conductivity based on specimen thickness under steady-state heat flow. Specimens are clamped between parallel hot and cold plates held at controlled temperatures; when the system stabilizes, thermocouple signals and surface temperatures are acquired to compute results with high repeatability.
A modular mainframe streamlines installation and service, while the dual-specimen assembly uses polymer-faced plates that provide good thermal contact, compliance, and wear resistance to enhance accuracy. The cold unit integrates a pneumatic clamping mechanism with adjustable air pressure to meet the standard requirement (≤2.5 kPa on the specimen) and employs direct-cooled side plates with dedicated temperature control for rapid stabilization. A fully enclosed, air-cooled refrigeration compressor delivers low noise, uniform cooling capacity, and long service life.
The system includes an industrial control package for automated data acquisition, temperature/time control, calculation, and report output. Multiple specimen size configurations are available to accommodate different material panels, and custom dimensions can be supplied on request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | GB 10294-2008 (Guarded Hot Plate and Heat Flow Meter methods for steady-state thermal resistance of insulation) |
| Measurement Principle | Guarded hot plate, dual-specimen configuration |
| Measurement Range (Thermal Conductivity) | 0.02–2 W/(m·K) |
| Cold Plate Temperature | -20 ℃ to 90 ℃ |
| Hot Plate Temperature | ≤300 ℃ |
| Accuracy | ≤3% |
| Repeatability | <1% |
| Power Supply | 380 V, 50 Hz |
| Ambient Temperature | 24–26 ℃ |
| Ambient Relative Humidity | <90% |
| Pneumatic Clamping Pressure Requirement | ≤2.5 kPa |
| Refrigeration | Fully enclosed, air-cooled compressor, direct-cooled side plates |
| Control And Output | Automated measurement, calculation, and report printing |
| - DRX-30A | 300 mm (W) × 300 mm (H), thickness ≤40 mm |
| - DRX-60A | 600 mm (W) × 600 mm (H), thickness ≤70 mm |
| - DRX-100A | 1000 mm (W) × 1000 mm (H), thickness ≤100 mm |
| Custom Specimen Dimensions | Available on request |
