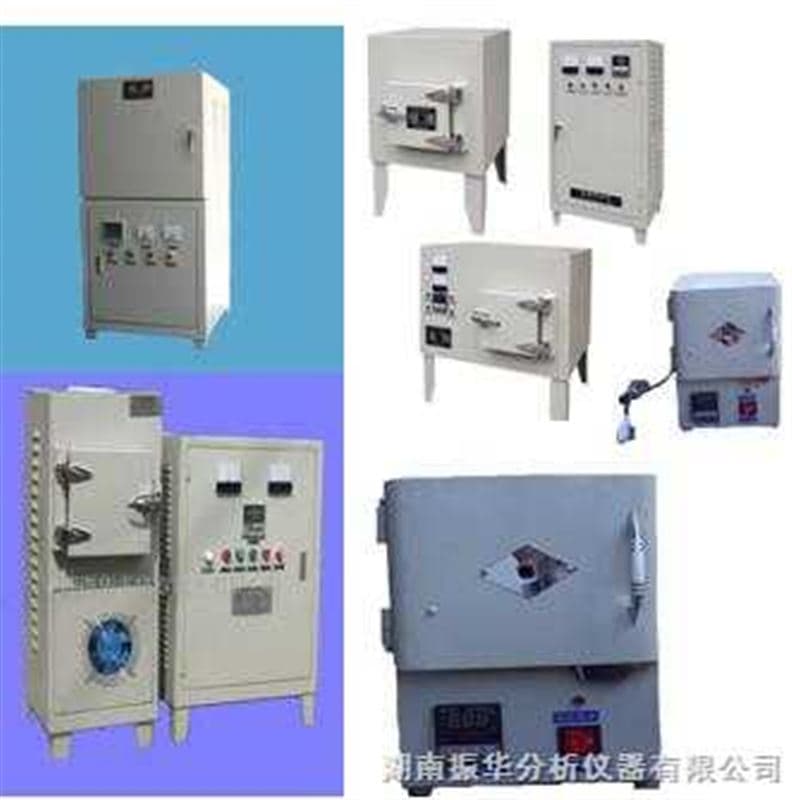

SX2 Series Energy-Saving Muffle Furnace
Published: 9/16/2020
The SX2 Series is a periodic-operation box-type resistance furnace for laboratory and workshop heating processes including chemical analysis, physical measurement, and small steel parts heat treatment. It features an intelligent PID temperature controller with 30 or 50 programmable segments for precise, automated temperature control.
Product Description
The SX2 Series Energy-Saving Muffle Furnace is designed for routine heat treatment and materials testing in industrial, research, and laboratory environments. Its chamber temperature is measured, displayed, and automatically regulated by a smart controller that supports PID tuning and multi-segment ramp/soak programs.
Typical applications include chemical analysis, physical property measurement, sintering, annealing, and general heat treatment of small metal parts. The furnace emphasizes ease of operation and high temperature control accuracy, and models are available across multiple rated temperatures and chamber sizes to match diverse process needs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Controller | Intelligent PID, 30 or 50 segment programmable ramp/soak |
| Operation | Periodic (batch) muffle furnace |
| Rated Temperature (Models SX2-2.5-10/12; SX2-4-10/12; SX2-8-10/12; SX2-12-10/12) | 1000 ℃ (1200 ℃ optional) |
| Chamber Size (SX2-2.5-10/12) | 200 × 120 × 80 mm |
| Chamber Size (SX2-4-10/12) | 300 × 200 × 120 mm |
| Chamber Size (SX2-8-10/12) | 400 × 250 × 160 mm |
| Chamber Size (SX2-12-10/12) | 500 × 300 × 200 mm |
| Rated Temperature (Models SX2-6-13; SX2-10-13) | 1300 ℃ |
| Chamber Size (SX2-6-13) | 250 × 150 × 100 mm |
| Chamber Size (SX2-10-13) | 400 × 200 × 160 mm |
| Rated Temperature (Models SX2-8-16; SX2-12-16; SX2-20-16) | 1600 ℃ |
| Chamber Size (SX2-8-16) | 300 × 150 × 120 mm |
| Chamber Size (SX2-12-16) | 400 × 200 × 160 mm |
| Chamber Size (SX2-20-16) | 600 × 200 × 260 mm |
| Customization | Non-standard chamber sizes available upon request |
