High-Temperature Tube Atmosphere Furnace Series
Published: 7/25/2016

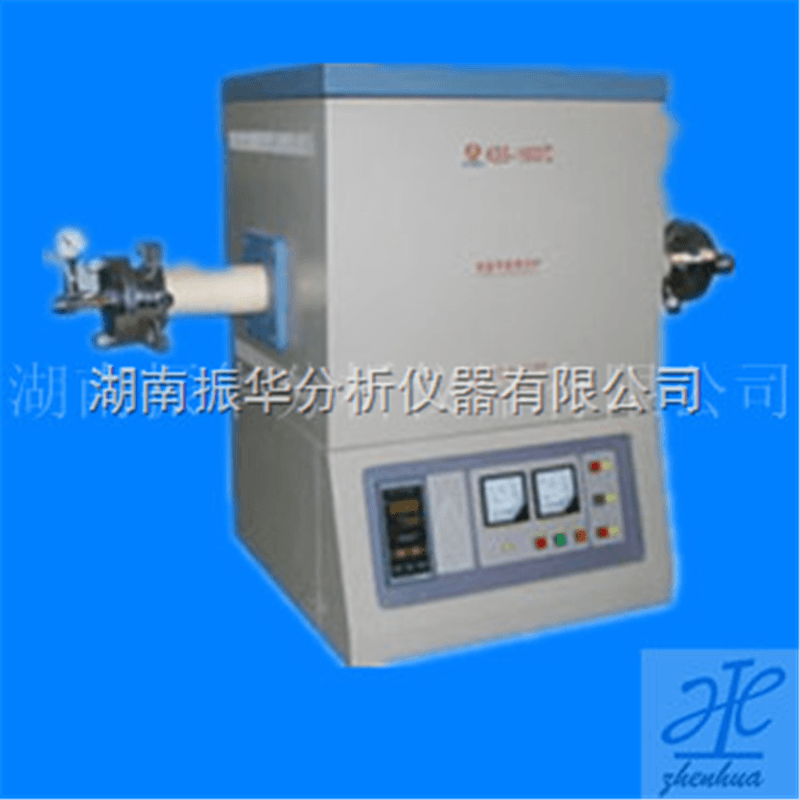

The SG-XX-YY series is a horizontal high-temperature tube furnace designed for atmosphere or vacuum heat treatment up to 1600℃. It supports programmable heating profiles for materials R&D, sintering, and thermal processing under inert or specified protective gases.
Product Description
The SG-XX-YY series furnaces are horizontal, tube-based systems with a separate control console, engineered for precise thermal processing in controlled atmospheres or under vacuum. Users can select tube material and dimensions to match application needs, including corundum and quartz options suitable for high-temperature operation.
The system provides programmable PID temperature control with multi-segment profiling, enabling fine control of ramp rates and soak times. Both tube ends include heads with a cooled exhaust end and quartz viewing ports, allowing observation and safe operation during gas purging or vacuum runs.
Typical applications include sintering, annealing, and material synthesis under inert gases such as argon or nitrogen, with optional configurations for hydrogen or reducing atmospheres specified at order. Site utilities should include circulating cooling water and a suitable gas supply.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 4 kW / 8 kW / 12 kW |
| Supply Voltage | 220 V AC or 380 V AC (selectable) |
| Tube Inner Diameter Range | 30–100 mm |
| Tube Length Range | 200–1000 mm (user-selected) |
| Rated Maximum Temperature Options | 1200℃ / 1400℃ / 1600℃ (user-selected) |
| Tube Materials | Ceramic, alumina (corundum), quartz (user-selected) |
| Corundum Purity | 99.99% |
| Corundum Tube Maximum Service Temperature | 1750℃ |
| Heating Elements | Resistance wire / SiC (silicon carbide) / MoSi2 (molybdenum disilicide), matched to temperature rating |
| Temperature Control Range | Ambient to 1600℃, continuous |
| Temperature Control Accuracy | ±1℃ |
| Programmable Ramp Rate | 0–10℃/min |
| Program Segments | ≥50 segments, PID control |
| Chamber Temperature Uniformity | ±2℃/cm |
| Constant Temperature Zone Length Options | 100 mm / 200 mm / 300 mm (others customizable) |
| Empty Furnace Heat-Up Time | ≤180 min |
| Insulation Material | Polycrystalline mullite fiber |
| Protective Atmosphere | Inert gases (e.g., Ar, N2); hydrogen/reducing gases on request |
| Gas Flow | Adjustable |
| Standard Tube Size Example | ID Φ80 mm, length 1000 mm; constant temperature zone length 600 mm |
| Ultimate Vacuum (Mechanical Vane Pump) | −0.1 MPa |
| Ultimate Vacuum (Oil Diffusion Pump Set) | 1.0×10⁻³ Pa |
| Ultimate Vacuum (Molecular Pump Set) | 1.0×10⁻⁵ Pa |
| End Heads | Both ends with heads; exhaust end with water cooling |
| Viewing Ports | Quartz, effective diameter ≥60 mm (both ends) |
| Structure | Horizontal; furnace body and control console separated (integrated option available) |
| Required Site Utilities | Circulating cooling water; protective gas supply |
| Standard Configuration | Main unit with furnace body, temperature control system, gas control system, vacuum system, mechanical pump |
| Accessories | Low vacuum gauge, three-phase power cable |
| Spare Parts | Vacuum gauge, power fuses |
