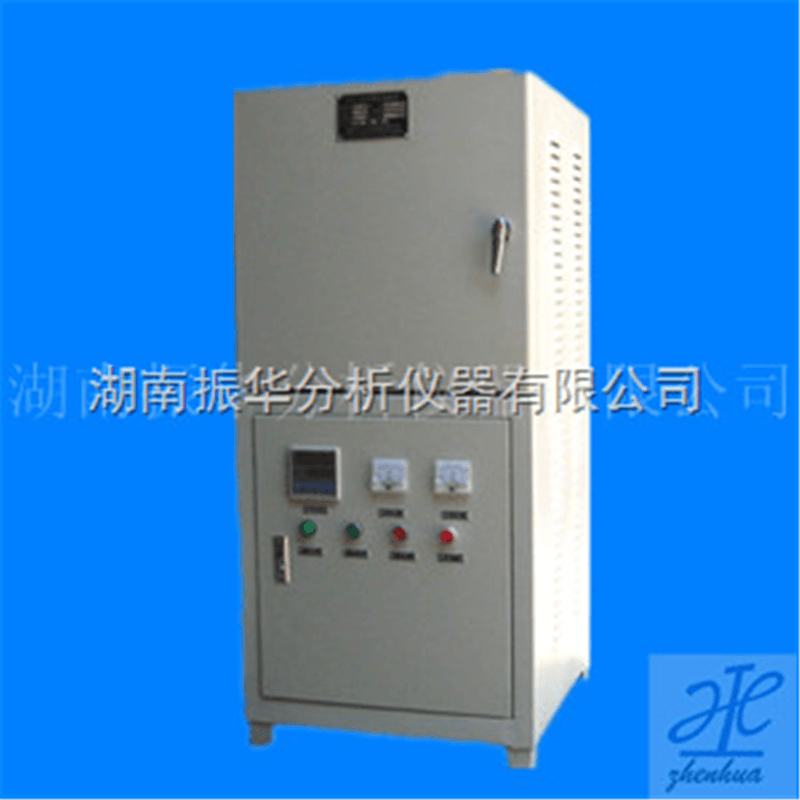

KSX2 Series Energy-Saving Rapid Box Furnace
Published: 7/26/2016
The KSX2 series is a compact, high-efficiency box furnace designed for rapid heating and precise temperature control up to 1600℃. It suits laboratory sintering, heat treatment, and material research where fast ramp rates and programmable profiles are required.
Product Description
The KSX2 Series Energy-Saving Rapid Box Furnace uses advanced insulation and heating materials to achieve high thermal efficiency, reduced power consumption, and significantly lower mass compared with conventional box furnaces. It offers rapid temperature ramps and supports multi-segment programmable control, enabling reproducible heat treatment and sintering workflows.
Multiple temperature ratings are available to match application needs, and standard chamber sizes cover common laboratory sample loads, with custom non-standard chamber dimensions available on request. The integrated intelligent temperature controller provides 30 or 50 programmable segments for flexible heating curves and stable process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Heating Rate | 0–100 ℃/min adjustable (to 1600 ℃ ≤ 20 min) |
| Energy Consumption | ≈20% of conventional furnaces |
| Weight | ≈30% of conventional furnaces |
| Programmable Control | 50 segments (controller with 30 or 50 segments available) |
| Temperature Ratings | 1000 ℃; 1400 ℃; 1600 ℃ (models available) |
| Empty Furnace Heat-Up To 1400 ℃ | ≤ 20 min |
| Temperature Control | Intelligent controller with multi-segment profiles |
| Chamber Sizes (W×H×D, Mm) | 200×120×80; 250×150×100; 300×200×120; 400×200×200 |
| Non-Standard Chambers | Available upon request |
