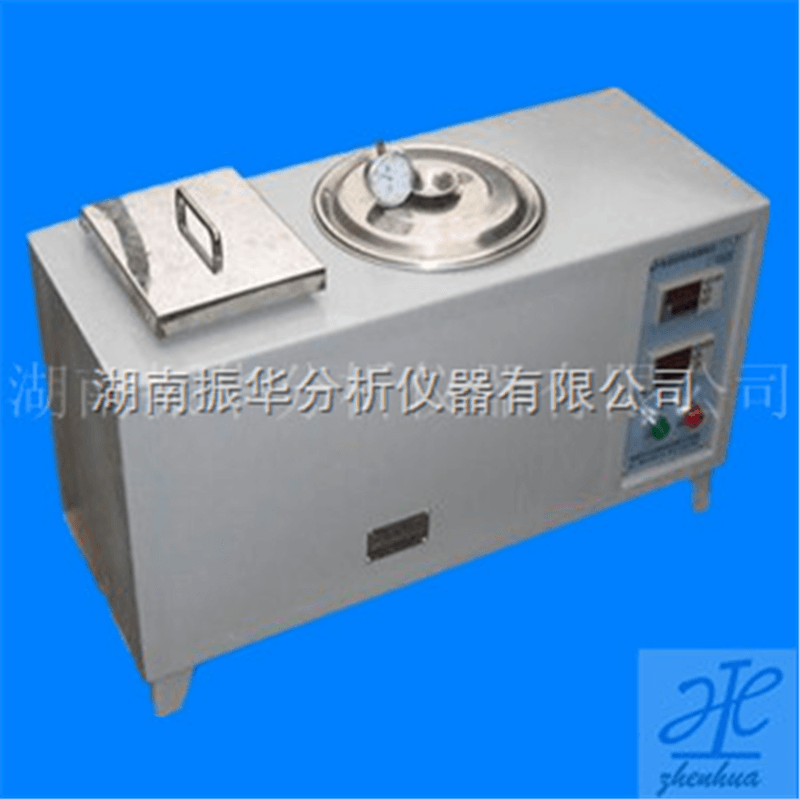

Ceramic Tile Linear Moisture Expansion Tester
Published: 9/16/2020
Bench-top instrument for determining the linear moisture expansion of ceramic tiles in accordance with GB/T 3810.10-2006. Suitable for quality control and intermediate inspection in ceramic manufacturing and testing labs.
Product Description
The SPY Ceramic Tile Linear Moisture Expansion Tester is designed to measure dimensional changes of ceramic tiles caused by moisture, supporting compliance with GB/T 3810.10-2006. It combines a firing furnace for specimen preparation and a boiling apparatus for controlled moisture exposure to quantify linear expansion for process control and product qualification.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Compliance | GB/T 3810.10-2006 |
| Furnace (Firing) | Chamber size: 280 × 150 × 100 mm |
| Furnace Maximum Temperature | 800 ℃ |
| Furnace Power Supply | 220 V |
| Boiling Apparatus | Vessel size: Ø225 × 210 mm |
| Boiling Apparatus Power | 800 W |
| Boiling Apparatus Power Supply | 220 V |
