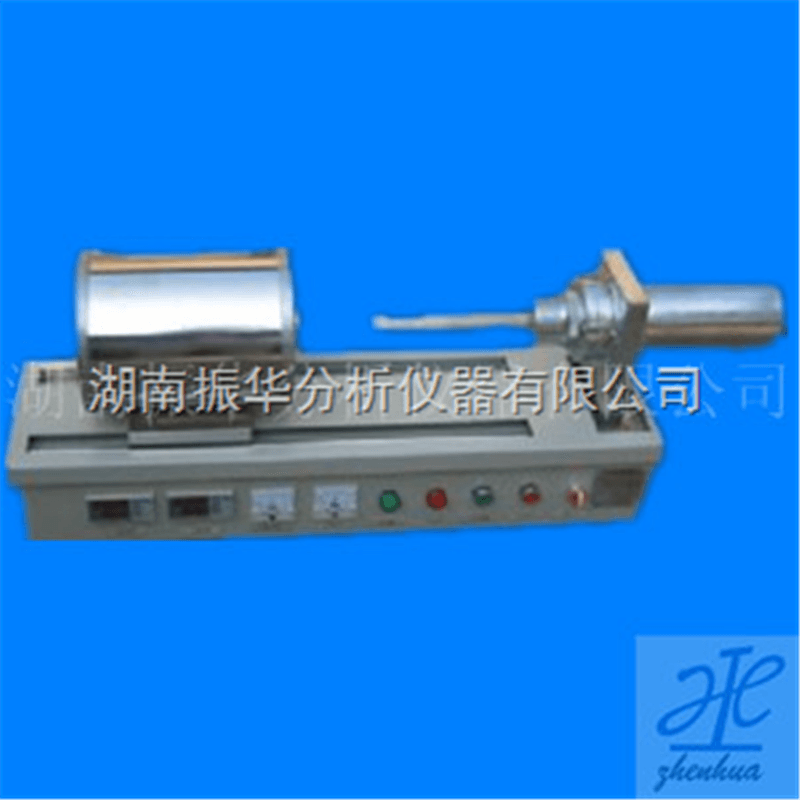

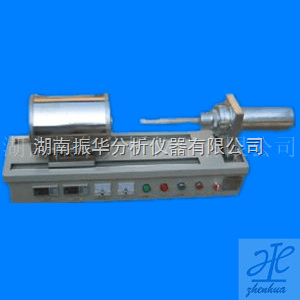

Ceramic Tile Linear Thermal Expansion Tester
Published: 9/16/2020
Bench-top instrument for measuring the linear thermal expansion coefficient of ceramics, refractories, and other solid materials. Conforms to GB/T 3810.8-2006 / ISO 10545-8:1994 for ceramic tile testing in quality control and research settings.
Product Description
The XPY linear thermal expansion tester determines dimensional change of ceramic tiles and related refractory materials under controlled heating profiles. It supports compliance testing to GB/T 3810.8-2006 / ISO 10545-8:1994, providing reliable data for production quality inspection and academic or industrial research.
Process parameters, including heating rate and PID control, can be adjusted and locked via an intelligent controller or configured through a host computer interface for online tuning. The system combines precise temperature control with micrometer-level displacement resolution to capture expansion behavior across the specified temperature range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Furnace Temperature | 1000 ℃ |
| Power Supply | 220 V ±10%, 50 Hz |
| Maximum Furnace Power Consumption | ≤ 2 kW |
| Thermal Expansion Measurement Range | 0–5 mm ±0.1% |
| Additional Expansion Range | ±2.5 mm ±0.1% |
| Expansion Resolution | 1 μm |
| Temperature Control Accuracy | ±1 ℃ |
| Temperature Recording Error | ≤ ±0.5% |
| Heating Control | PID adjustable; parameters set via AI518P/AI708P controller or host computer (online adjustment) |
