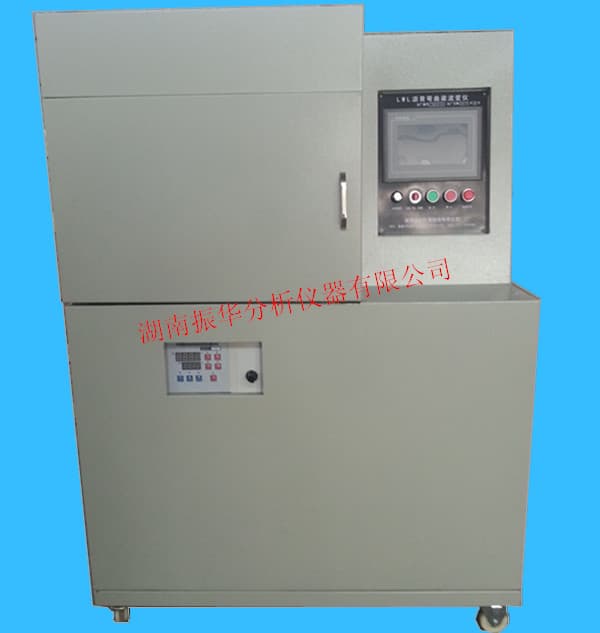

Asphalt Bending Beam Rheometer
Published: 8/31/2015
The LWL Asphalt Bending Beam Rheometer measures flexural creep stiffness and m-value of asphalt binders in controlled low-temperature conditions. It supports testing of unaged binders and binders aged by RTFOT (T240) and/or PAV (R28) per method T313-04.
Product Description
The LWL Asphalt Bending Beam Rheometer is designed in accordance with T313-04 for determining the flexural creep stiffness of asphalt binders, enabling evaluation of low-temperature performance. It is applicable to both unaged asphalt and laboratory-aged materials prepared by RTFOT (T240) and/or PAV (R28).
The system integrates a high/low temperature constant-temperature bath, a lever loading mechanism, a data acquisition unit, and an embedded touch-screen software system for data processing. Its controlled temperature operation supports precise, repeatable measurements of creep deformation and derived stiffness parameters for binder grading and research.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature Range | -36 to 60 ℃ |
| Temperature Accuracy | ±0.1 ℃ |
| Refrigeration Power | 1500 W |
| Heating Power | 2000 W |
| Load Range | 0 to 1 kg |
| Displacement Measurement Range (Digital) | 0 to 40 mm |
| Displacement Accuracy | 0.04 mm |
| Standard Method Compliance | T313-04 (Bending Beam Rheometer method) |
| Applicable Binder Conditioning | T240 (RTFOT), R28 (PAV) |
| System Components | Constant-temperature bath; Lever loading device; Data acquisition system; Embedded touch-screen software |
| Standard Accessories | Main test unit with embedded touch-screen software (1 set); Product operation manual (1 pc); Temperature controller manual (1 pc); Specimen molds (1 set) |
