Graphite and Carbon Materials Thermal Conductivity Tester
Published: 3/27/2019
High-temperature tester based on the direct-current longitudinal heat-flow method for measuring thermal conductivity of electrically conductive materials. Suitable for metals and graphite across a wide conductivity range with automated data acquisition and analysis.
Product Description

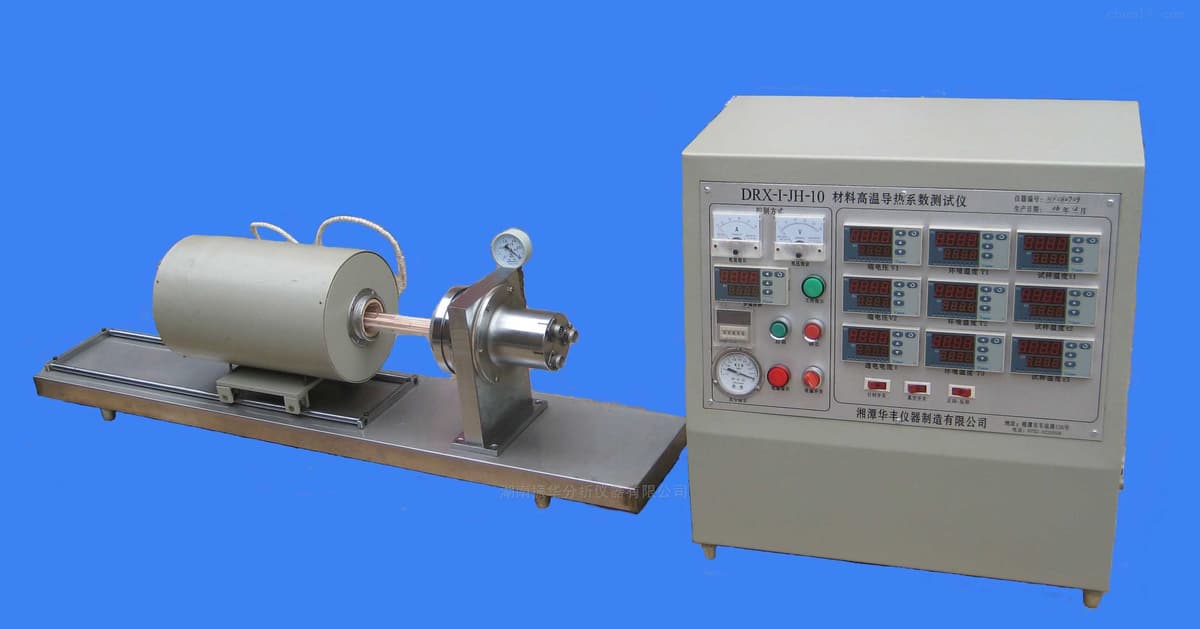

The DRX-II-JH measures the thermal conductivity of conductive materials at elevated temperatures using a longitudinal heat-flow method in which the specimen is directly energized. The system is designed for metals such as copper and stainless steel, as well as non-metal conductive materials including graphite, enabling research on heat transfer performance.
The measurement approach conforms to GB3651-83 for high-temperature thermal conductivity of metals and GB8722-88 for intermediate-temperature thermal conductivity of graphite materials. Automated control allows computer-driven testing with controllable heating rates, data acquisition, and report output, and the system can be configured with vacuum or protective atmospheres as required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | Direct-current longitudinal heat-flow method |
| Standards Compliance | GB3651-83; GB8722-88 |
| Maximum Temperature | Room temperature to 1000 ℃ |
| Thermal Conductivity Range | 0.035–40 W/(m·K) and 20–500 W/(m·K) (dependent on material conductivity) |
| Sample Quantity | ≥2 |
| Sample Size (Metals) | Φ5 × 220 mm (rod) |
| Sample Size (Graphite) | Φ10 × 200 mm; Φ16 × 160 mm (rod) |
| Thermocouple Holes | From mid-length, every 50 mm drill Φ3 mm holes, depth 2 mm |
| Filament Samples | Φ1–3 mm |
| Accuracy | Better than 5%, up to 2% |
| Atmosphere | Vacuum and protective gas options customizable |
| Control | Computer-automated testing; controllable heating rate |
| Power Supply | 220 V AC |
| Power Consumption | ≤4 kW |
| Data Output | PC connection for automated testing and printing |
| Main Components | Test host (1), Data acquisition system (1 set), Electrical control system (1 set), Test software (1 set) |
| User-Supplied | Desktop computer and printer |
