Digital Glass Softening Point Tester (Suspended Fiber Method)
Published: 3/27/2019
Bench-top instrument for determining the softening point (Ts) of glass using a suspended filament method with controlled heating and digital readout. Designed and manufactured in accordance with ISO 7884-1978(E) for glass viscosity-related softening measurements.
Product Description

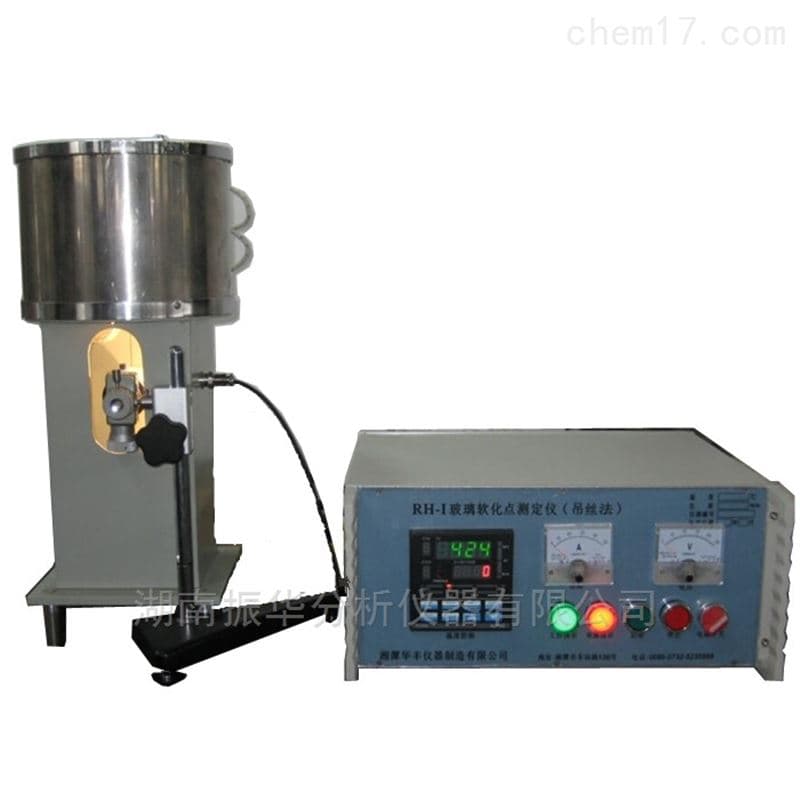

The RH-I Digital Glass Softening Point Tester measures the softening temperature of glass fibers by heating a standardized glass filament in an electric furnace at a controlled rate until its elongation rate reaches 1 mm per minute. The corresponding temperature is defined as the glass softening point Ts and correlates to a viscosity of approximately 4.5×10^6 Pa·s.
In operation, a glass filament of specified length is uniformly heated while its elongation is monitored using a projection micrometer. The system provides precise temperature control and digital temperature resolution to support repeatable testing in quality control and materials research.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compliance | ISO 7884-1978(E) |
| Heating Furnace Power | 600 W |
| Maximum Operating Temperature | 900 ℃ (instantaneous 1100 ℃) |
| Heating Rate | 5 ± 1 ℃/min (controllable) |
| Digital Temperature Resolution | 0.1 ℃ |
| Timing Accuracy | 0.1 s |
| Micrometer Minimum Reading | 0.01 mm |
| Sample Filament Length | 235 mm ± 1 mm |
| Measurement Principle | Softening point at elongation rate 1 mm/min (≈ viscosity 4.5×10^6 Pa·s) |
