Hydraulic Compression and Flexural Strength Tester
Published: 10/10/2016
Hydraulic tester for compression and flexural strength of cement, mortar, concrete specimens, and other non-metallic building materials. Conforms to GB/T 3722 with electronic load measurement, digital display, load rate display, peak hold, overload protection, and power-off data retention.
Product Description

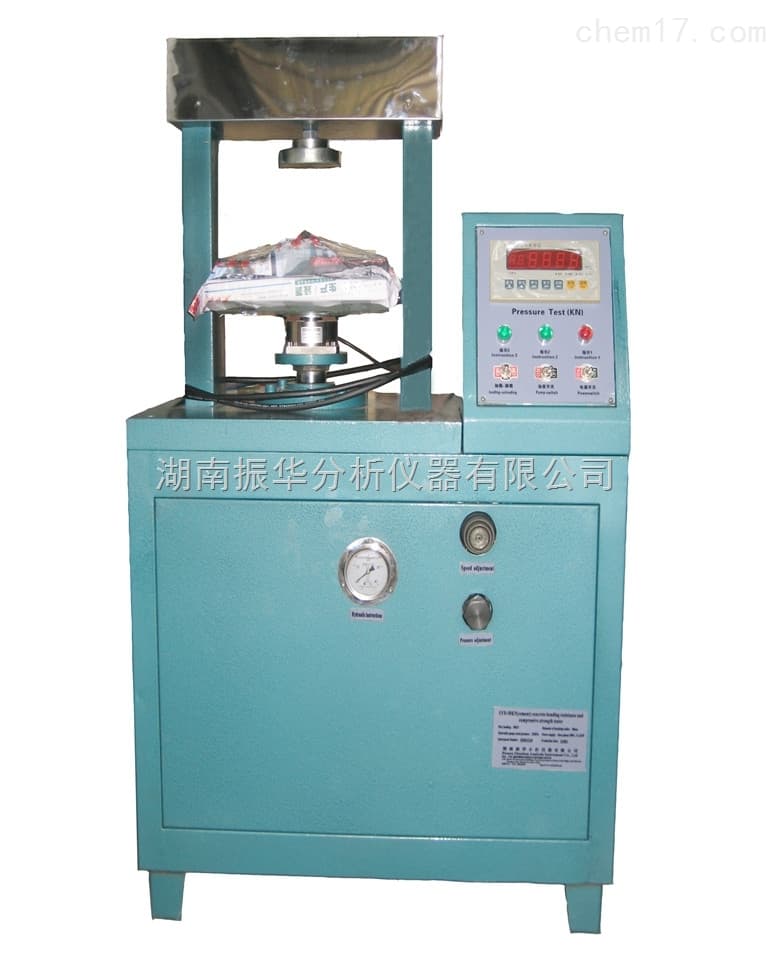

The SYD Hydraulic Compression and Flexural Strength Tester is designed for flexural strength testing of concrete specimens and compression strength testing of cement, mortar, red brick, and related building materials. It adopts hydraulic loading with an electronic force measurement system to provide stable, accurate results for laboratory and on-site quality control.
The system integrates high-precision sensors and a digital indicator, with optional PC connectivity for storing, reviewing, and printing test results. A rotating lead screw mechanism quickly adjusts the compression space, and a dedicated flexural fixture extends capabilities to flexural testing; the machine is delivered for plug-and-play operation and can be user-calibrated per the instruction manual.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Load Options | 30 kN; 50 kN; 100 kN; 200 kN; 300 kN |
| Indication Relative Error | ±1% |
| Hydraulic Pump Rated Pressure | 25 MPa |
| Flexural Roller Diameter | 30 mm |
| Maximum Distance Between Upper And Lower Flexural Rollers | 165 mm |
| Center Distance Between Two Upper Flexural Rollers | 150 mm |
| Center Distance Between Two Lower Flexural Rollers | 450 mm |
| Bearing Plate Size | 155 mm |
| Maximum Distance Between Upper And Lower Compression Plates | 230 mm |
| Piston Diameter × Maximum Stroke | 125 mm × 80 mm |
| Piston Stroke | 120 mm |
| Motor Power | 0.75 kW |
| Overall Dimensions (Reference) | 850 × 600 × 1340 mm |
| Standard Compliance | GB/T 3722 |
| Functions | Digital load display; loading rate display; peak load hold; overload protection; power-off data retention |
| Adjustments | Rotating lead screw for compression space adjustment |
| Included Components | Main testing frame; hydraulic power/control cabinet; digital display unit; hydraulic pressure sensor |
| Optional | Constant-pressure test function module (specify when ordering) |
