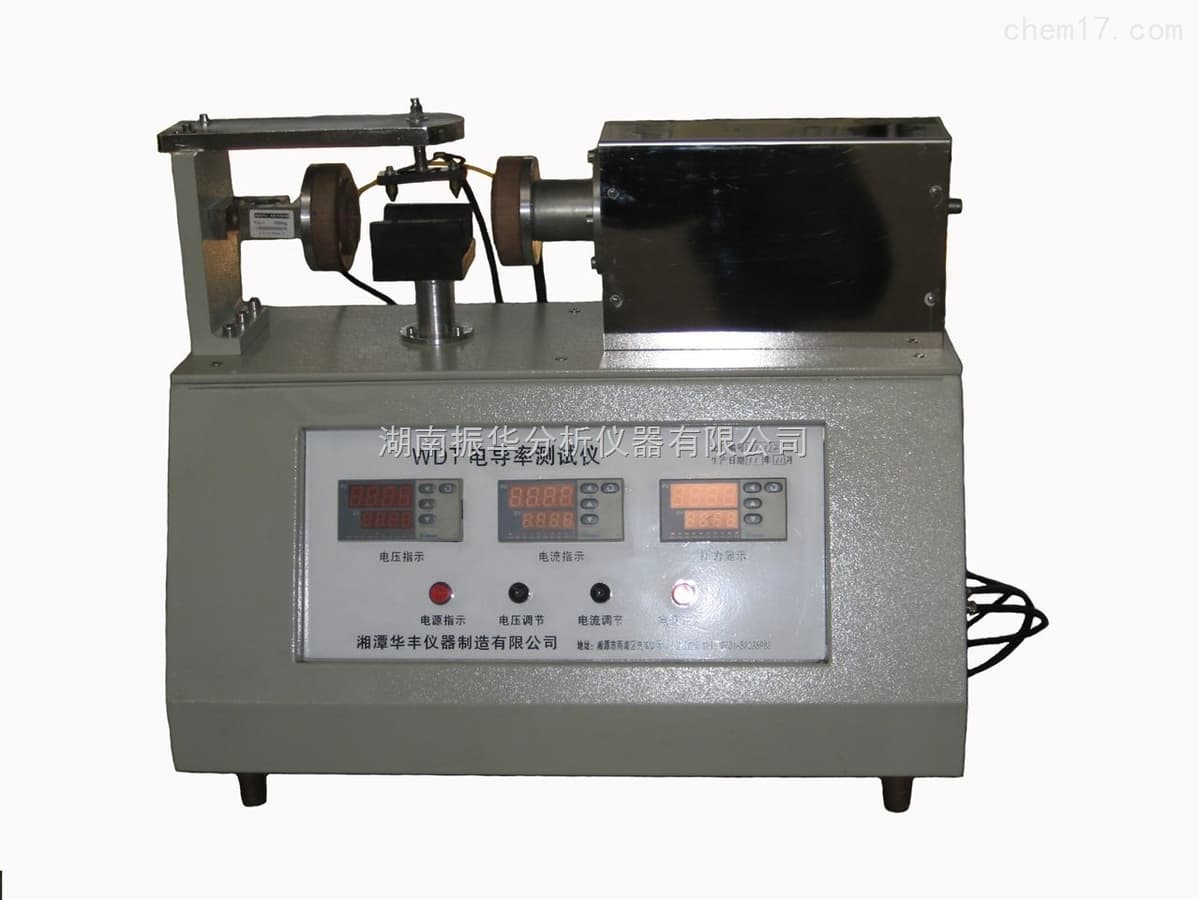

Carbon Material Resistivity Tester
Published: 10/8/2016
Bench-top instrument for measuring electrical resistivity of carbon materials, graphite blocks, and carbon papers at room temperature. Designed for compliance with ISO 11713-2000, YS/T 63.2-2005, and YS/T 64-1993 test methods used in the aluminum and carbon products industries.
Product Description
The WDT Carbon Material Resistivity Tester measures the electrical resistivity of bulk carbon and graphite specimens as well as carbon paper. It employs a high-precision constant current source with automatic display of current and voltage to deliver stable, accurate, and intuitive operation.
A flexible specimen platform accommodates various diameters and lengths, allowing 360-degree rotation for convenient probe alignment and measurement. The system supports standardized testing of cathode blocks, prebaked anodes, anode paste, cathode paste, and other carbon products at ambient conditions according to ISO 11713-2000, YS/T 63.2-2005, and YS/T 64-1993.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Input | 220 V ±10% |
| Power Consumption | ≤300 VA |
| Source Output Voltage | 0–24 V |
| Source Output Current | 0–5 A |
| Source Accuracy | 0.01 |
| Specimen Diameter Range | Φ20–Φ50 mm |
| Specimen Length Range | 80–130 mm |
| Platform Rotation | 360° free rotation |
| Electrode Terminal Spacing | 50 ±0.1 mm |
| Dimension Measurement | Digital caliper, 0–150 mm, accuracy 0.01 mm |
| Voltage Measurement | Digital voltmeter, range 0–199.99 mV, accuracy 0.01 mV |
| Applicable Standards | ISO 11713-2000; YS/T 63.2-2005; YS/T 64-1993 |
