Laboratory Electric Hydraulic Press Sample Former
Published: 3/27/2019
Electric hydraulic press for laboratory sample forming in ceramics, building materials, chemicals, and pharmaceuticals. Features a dual-stage pump with digital pressure display and peak hold for safe, efficient operation.
Product Description

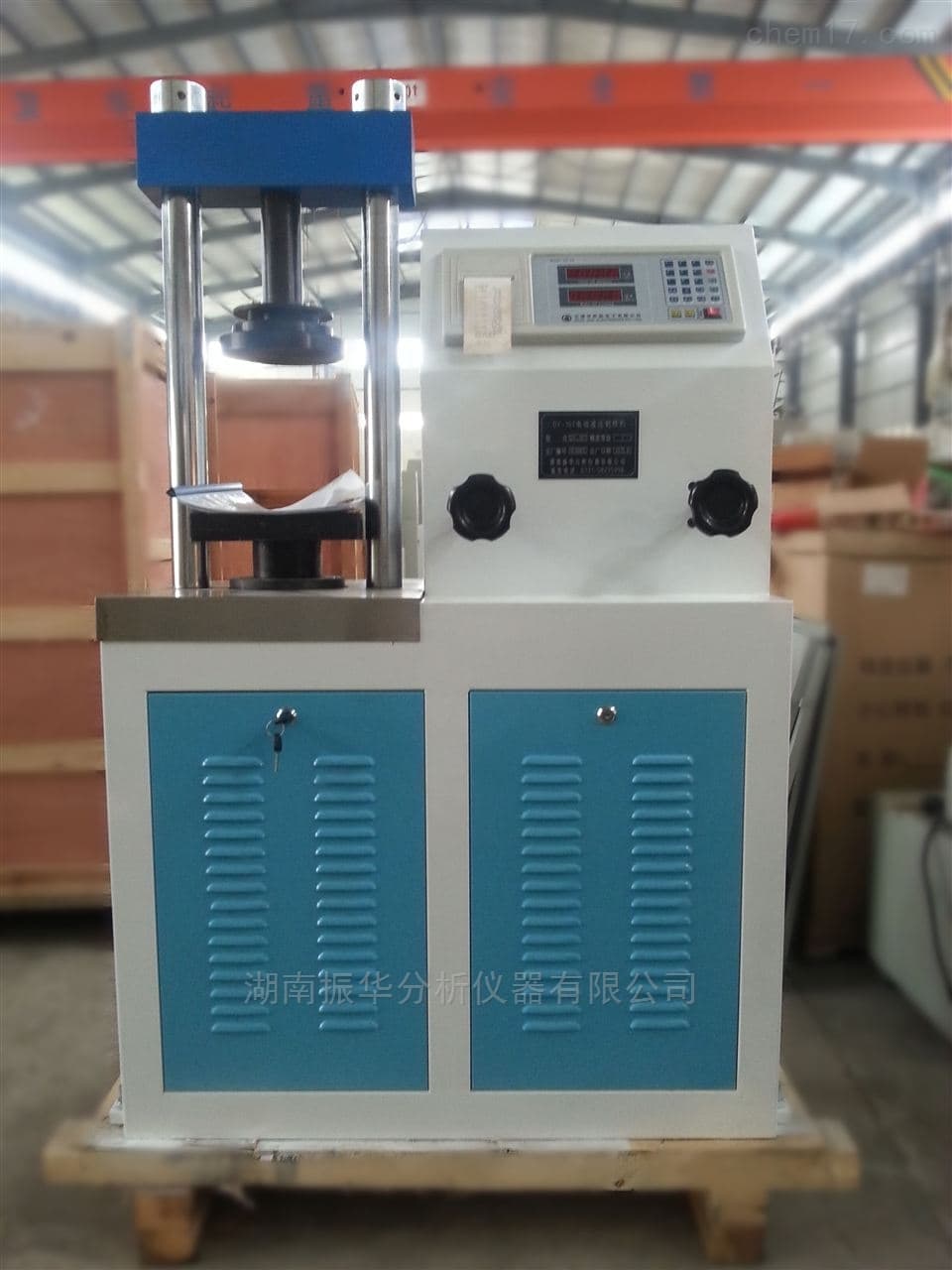

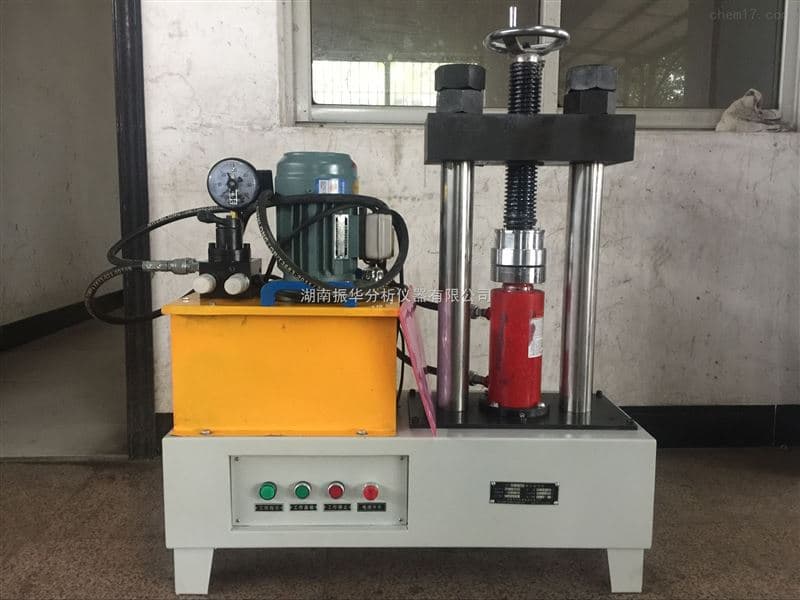

The DY-series electric hydraulic press is designed for laboratory sample forming across ceramics, building materials, chemical, and pharmaceutical applications. It supports multiple sample formats via interchangeable molds and accessories, delivering reliable pressing with compact size and light weight.
A dual-stage hydraulic pump provides high flow and fast approach during idle travel, then low flow and high pressure during the working stroke to optimize cycle time. An internal relief valve safeguards operation by automatically returning oil when pressure exceeds the rated limit, while a digital pressure display allows peak-value setting and hold for precise process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Load (DY-10T) | 10 tons |
| Maximum Load (DY-30T) | 30 tons |
| Maximum Load (DY-60T) | 50 tons |
| Maximum Working Pressure (DY-10T) | 16 MPa |
| Maximum Working Pressure (DY-30T) | 25 MPa |
| Maximum Working Pressure (DY-60T) | 53 MPa |
| Cylinder Advance Speed (DY-10T) | 3–9 mm/s (adjustable) |
| Cylinder Advance Speed (DY-30T) | 1.5–4.7 mm/s (adjustable) |
| Cylinder Advance Speed (DY-60T) | 1.3 mm/s (pressing); 8.4 mm/s (fast rise) |
| Cylinder Return Speed (DY-10T) | 16 mm/s, 5 mm/s (non-adjustable) |
| Cylinder Return Speed (DY-30T) | 6 mm/s, 9 mm/s (non-adjustable) |
| Cylinder Return (DY-60T) | Spring return |
| Maximum Stroke (DY-10T) | 120 mm |
| Maximum Stroke (DY-30T) | 150 mm |
| Maximum Stroke (DY-60T) | 155 mm |
| Oil Tank Capacity (DY-10T) | 15 L |
| Oil Tank Capacity (DY-30T) | 50 L |
| Oil Tank Capacity (DY-60T) | 60 L |
| Hydraulic Oil Type | No. 46 hydraulic oil |
| Pressure Display | Digital with peak hold |
| Pump Type | Dual-stage pump |
| Safety | Built-in relief valve for overpressure automatic oil return |
