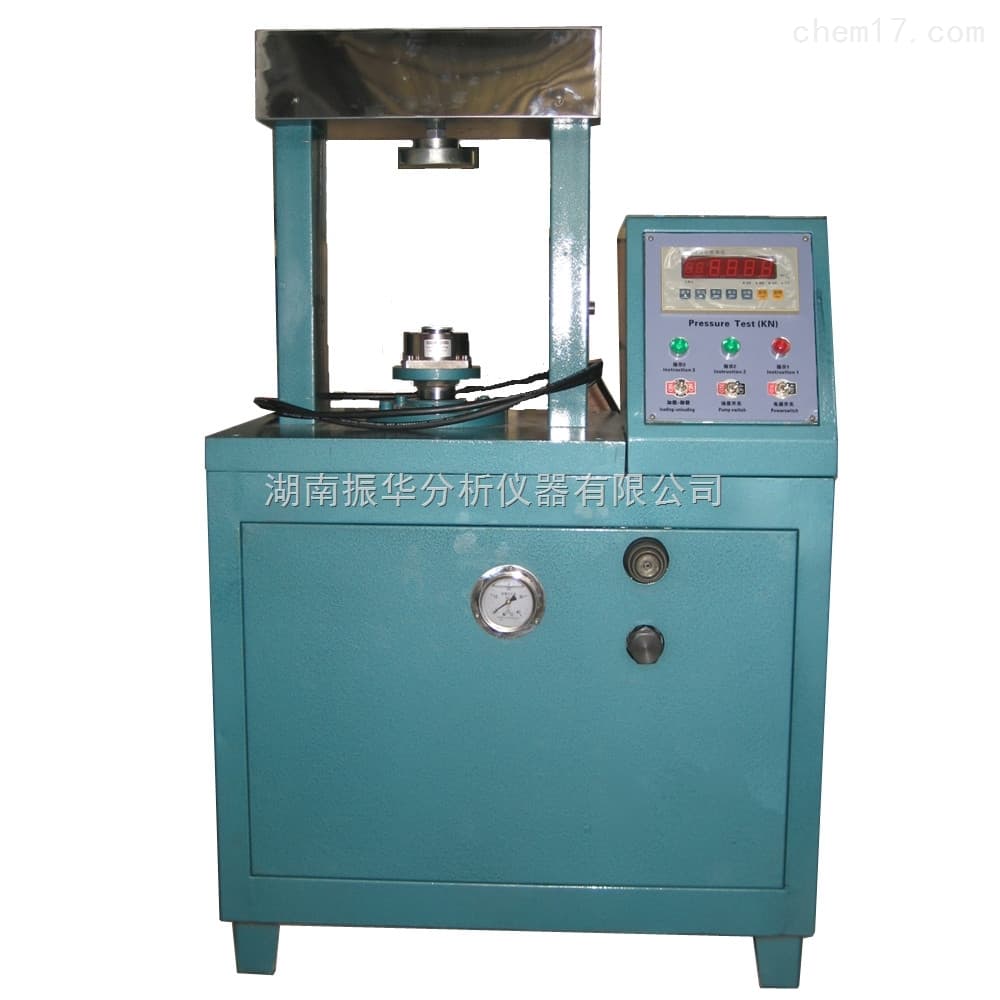

Hydraulic Cement Flexural Testing Machine
Published: 9/4/2017
Hydraulic testing system for flexural strength of concrete specimens and compressive strength of cement mortar, brick, and other non-metallic building materials. Conforms to GB/T 3722 with digital load display, load rate display, peak load capture, overload protection, and power-off data retention.
Product Description
The SYD Hydraulic Cement Flexural Testing Machine is designed for flexural strength testing of concrete specimens and compressive strength testing of cement, mortar, red brick, and other non-metallic building materials. It uses a hydraulic loading mechanism with electronic force measurement to provide stable, accurate loading and clear digital indication of test parameters.
The system supports flexural testing through dedicated bending accessories, and the compression space is conveniently adjusted by a rotating lead screw to improve test throughput. With optional computer integration, users can store, review, and print test results. The machine is delivered ready to use after oil filling and power connection, and includes straightforward user calibration procedures as described in the manual.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | GB/T 3722 |
| Maximum Load Options | 30 kN; 50 kN; 100 kN; 200 kN; 300 kN |
| Indication Relative Error | ±1% |
| Hydraulic Pump Rated Pressure | 25 MPa |
| Flexural Roller Diameter | 30 mm |
| Maximum Distance Between Upper And Lower Flexural Rollers | 165 mm |
| Center Distance Between Two Upper Flexural Rollers | 150 mm |
| Center Distance Between Two Lower Flexural Rollers | 450 mm |
| Bearing Plate Size | 155 mm |
| Maximum Distance Between Upper And Lower Compression Plates | 230 mm |
| Piston Diameter × Maximum Stroke | 125 mm × 80 mm |
| Piston Travel | 120 mm |
| Motor Power | 0.75 kW |
| Overall Dimensions (W×D×H) | 850 × 600 × 1340 mm |
| Display Functions | Digital load display; load rate display; peak load display |
| Protection | Overload protection; data retention on power loss |
| Loading Method | Hydraulic loading; electronic force measurement |
| Compression Space Adjustment | Rotating lead screw |
| Included Components | Main testing frame; hydraulic power/control cabinet; digital display unit; hydraulic pressure sensor |
| Optional | Constant pressure test function module (specify when ordering) |
