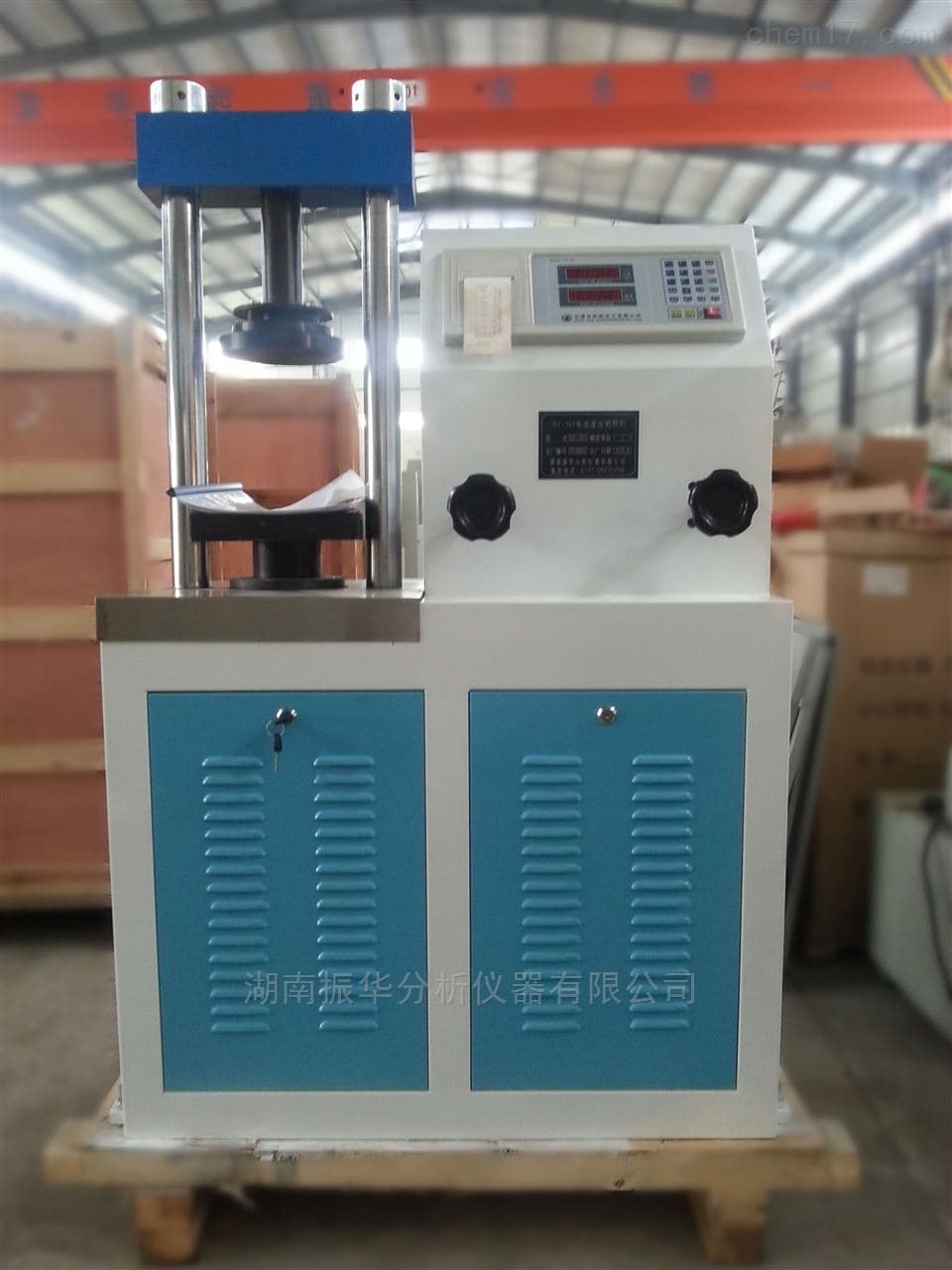

Electric Hydraulic Sample Press
Published: 3/27/2019
The DY series Electric Hydraulic Sample Press forms laboratory specimens for ceramics, building materials, chemicals, and pharmaceutical research. It uses a two-stage pump with digital pressure display and peak hold to deliver fast approach and high-pressure working strokes.
Product Description
The DY Electric Hydraulic Sample Press is designed for laboratory sample preparation across ceramics, construction materials, chemical, and pharmaceutical applications. It supports multiple molds and accessories to accommodate diverse specimen formats, enabling one machine to serve multiple use cases.
A two-stage hydraulic pump provides high oil flow for rapid approach and low flow for high-pressure pressing, improving efficiency and control. Safety is enhanced by an internal pressure-limiting valve that automatically returns oil when pressure exceeds the rated value, while digital pressure indication allows peak-value setting and hold for consistent pressing results.
The compact, lightweight structure simplifies installation and maintenance, making it suitable for routine laboratory operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Load (Model Options) | 10 t; 30 t; 50 t |
| Maximum Working Pressure (Model Options) | 16 MPa; 25 MPa; 53 MPa |
| Cylinder Ejection/Pressing Speed (10 T) | 3–9 mm/s (adjustable) |
| Cylinder Ejection/Pressing Speed (30 T) | 1.5–4.7 mm/s (adjustable) |
| Cylinder Pressing Speed (50 T) | 1.3 mm/s; Fast Rise: 8.4 mm/s |
| Cylinder Return Speed (10 T) | 16 mm/s; 5 mm/s (non-adjustable) |
| Cylinder Return Speed (30 T) | 6 mm/s; 9 mm/s (non-adjustable) |
| Cylinder Return (50 T) | Spring return |
| Maximum Stroke (Model Options) | 120 mm (10 t); 150 mm (30 t); 155 mm (50 t) |
| Oil Tank Capacity (Model Options) | 15 L (10 t); 50 L (30 t); 60 L (50 t) |
| Hydraulic Oil | No. 46 (ISO VG 46) |
