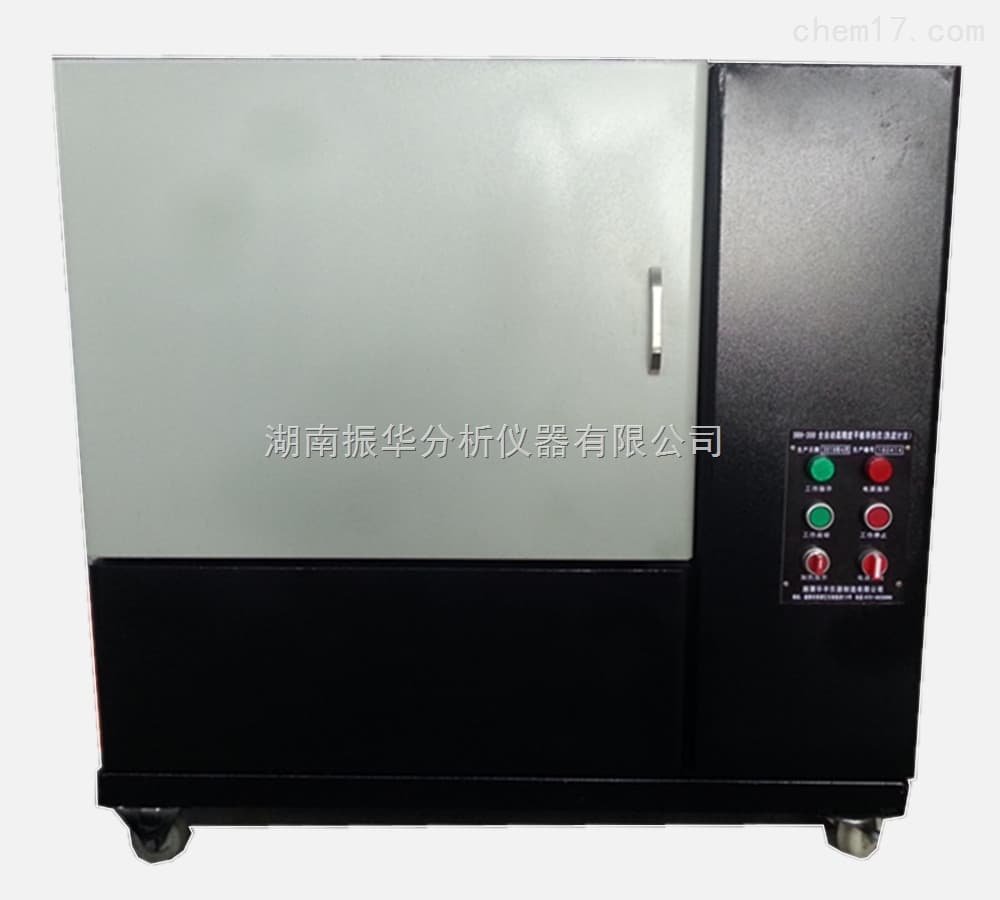

High-Precision Heat Flow Method Thermal Conductivity Meter
Published: 11/11/2016
The DRH300 measures thermal conductivity and thermal resistance of insulation boards, soils, ceramics, plastics, and similar materials using the heat flow meter method. It supports automated control, data acquisition, and reporting in compliance with ASTM C518, ISO 8301, and GB/T 10295.
Product Description
The DRH300 is a heat flow meter method instrument designed for precise, repeatable measurement of thermal conductivity and thermal resistance of low-to-medium conductivity materials. A symmetric dual heat-flow sensor configuration with hot and cold plates ensures rapid stabilization and responsive measurement behavior, enabling short test cycles for QC and process control.
All core test functions—from plate temperature control to data acquisition and analysis—are automated. The system connects to a host computer for fully automatic testing, report generation, data processing, printing, and storage, and can be configured with an embedded touchscreen interface for stand‑alone operation as required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards Compliance | ASTM C518; ISO 8301; GB/T 10295 |
| Measurement Method | Heat flow meter, dual heat-flow sensors (symmetric hot and cold plates) |
| Thermal Conductivity Range | 0.005–2.0 W/(m·K) |
| Accuracy | < ±3% (at 25 °C ambient) |
| Repeatability | ±1% |
| Thermal Resistance Range | 0.1–8.0 m²·K/W |
| Sample Configuration | Symmetric |
| Sample Size | 300 × 300 mm |
| Sample Thickness | 10–50 mm |
| Hot Plate Maximum Temperature | 100 °C |
| Cold Plate Minimum Temperature | −30.0 °C |
| Cold Plate Temperature Control Stability | ±0.1 °C |
| Temperature Measuring Instruments | Digital, 0.1 class accuracy, 0.01 °C resolution |
| Hot-Side Temperature Control Range | Room temperature to 99.99 °C |
| Heater Control | Flat-plate heater with bidirectional thyristor control |
| Temperature Control Algorithm | Automatic intelligent PID |
| Programmable Data Points | > 10 |
| Cooling Options | Forced air; external water bath; thermoelectric cooling (user selects one) |
| Operation | Computer-automated testing |
| Main Components (Typical) | Test host; analysis software; low-temperature bath; desktop computer and printer |
