Insulation Material Thermal Conductivity Tester
Published: 3/2/2017
The DRH300 measures thermal conductivity and thermal resistance of insulation and related materials using the heat flow meter method. It complies with ASTM C518, ISO 8301, and GB/T 10295 for quality control, R&D, and process monitoring applications.
Product Description

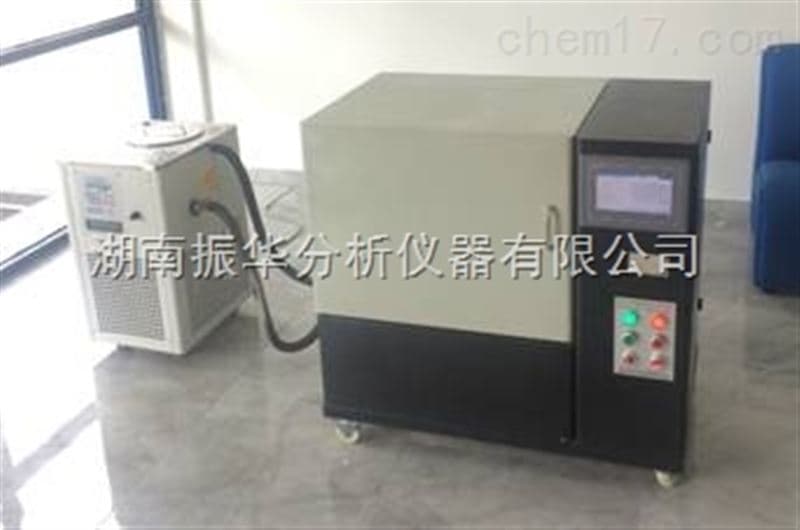

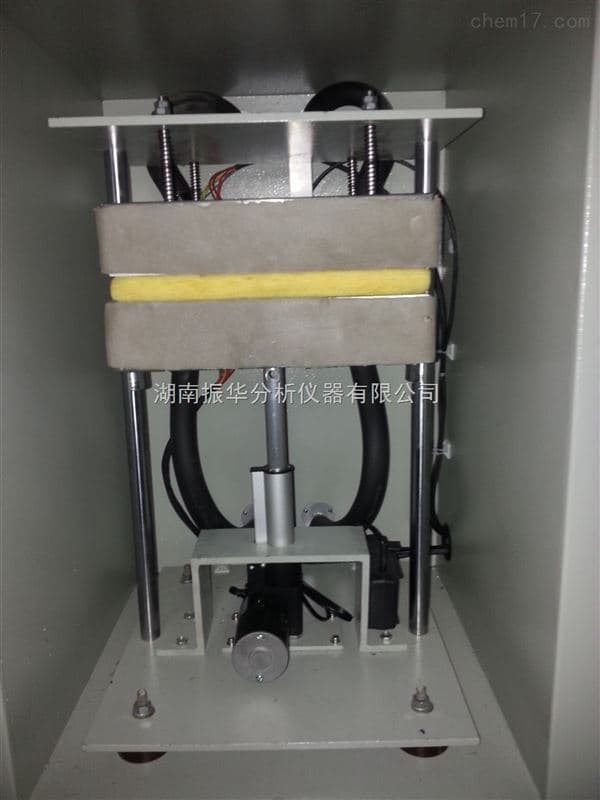

The DRH300 is a heat flow meter method thermal conductivity tester designed for board-like insulation and materials such as clays, sands, ceramics, and plastics. It employs a symmetric dual heat-flow sensor configuration with a hot plate and a cold plate to achieve rapid stabilization and high repeatability.
The system offers fully automated operation from temperature control to data acquisition and analysis. Users can generate test reports, store data, and optionally operate via an embedded touchscreen interface; PC-based control and analysis software are included.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compliance | ASTM C518; ISO 8301; GB/T 10295 |
| Measurement Method | Heat flow meter, dual heat-flow meters (symmetric on hot and cold plates) |
| Thermal Conductivity Range | 0.005 to 2.0 W/(m·K) |
| Accuracy | < ±3% at 25°C ambient |
| Repeatability | ±1% |
| Thermal Resistance Range (R-Value) | 0.1 to 8.0 m²·K/W |
| Sample Configuration | Symmetric between hot and cold plates |
| Sample Size | 300 × 300 mm |
| Sample Thickness | 10 to 50 mm |
| Hot Plate Maximum Temperature | 100°C |
| Cold Plate Minimum Temperature | −30.0°C |
| Cold Side Control | Thermostatic control; 0.1-class digital display; resolution 0.01°C |
| Hot Side Temperature Control Range | Room temperature to 99.99°C |
| Hot Side Control | Programmable digital controller, 0.1-class accuracy; resolution 0.01°C; bidirectional SCR control |
| Temperature Control Algorithm | Automatic intelligent PID; programmable data points >10 |
| Cooling Options | Forced air; external water bath; thermoelectric (electronic) refrigeration (select one) |
| Operation | Computer-automated testing |
| Custom Options | Test temperature range customizable |

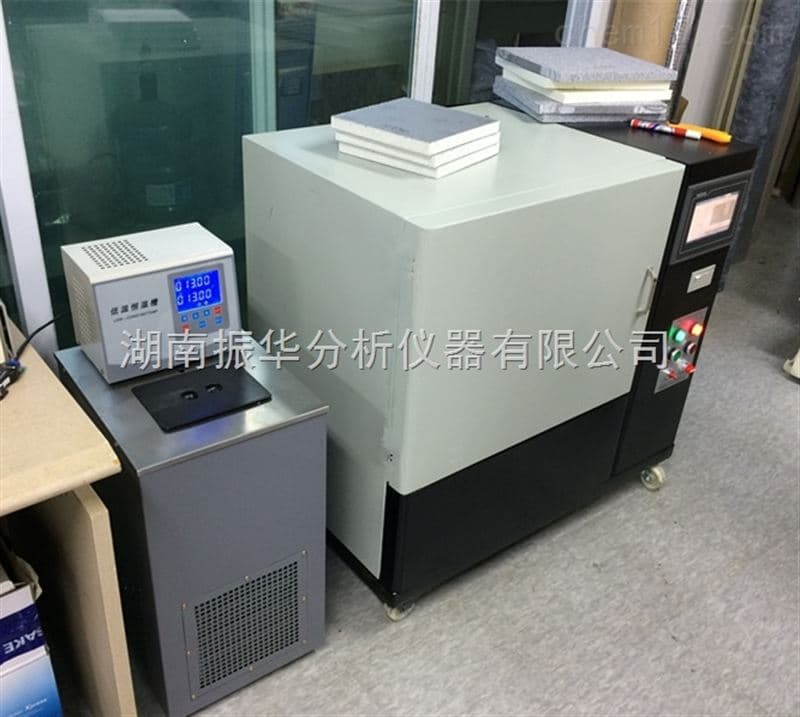

| Main Components | Test host; analysis software; low-temperature bath; PC and printer (user supplied) |
