Guarded Hot Plate Thermal Conductivity Meter for Insulation Materials
Published: 11/22/2023
The DRH300 measures thermal conductivity and thermal resistance of insulation and board-like materials using the guarded hot plate (dual heat-flow sensors) method. It complies with ASTM C518, ISO 8301, and GB/T 10295 for accurate, repeatable testing and supports automated control, acquisition, and reporting.
Product Description

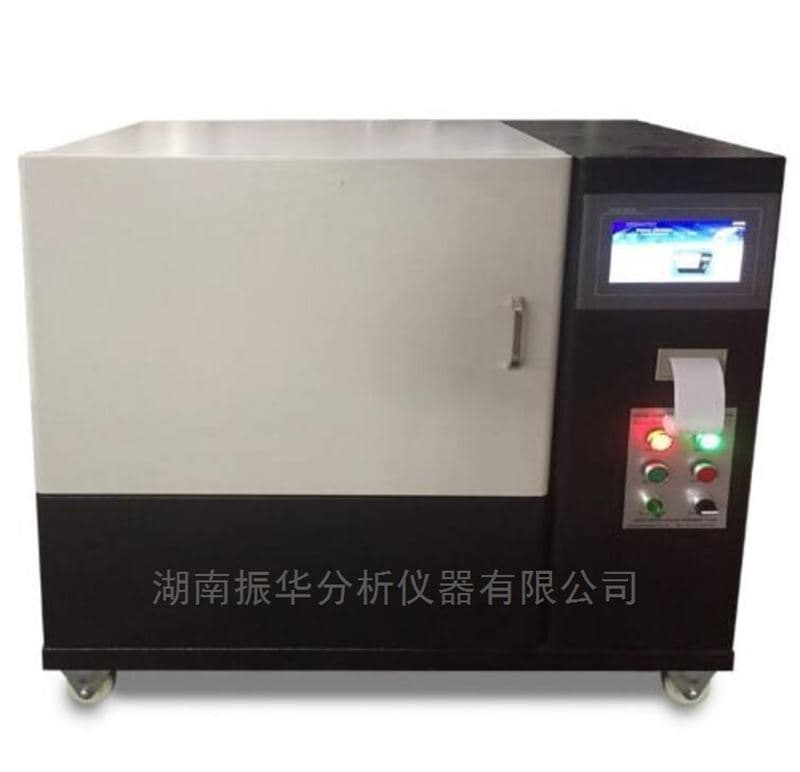

The DRH300 is a guarded hot plate thermal conductivity meter designed for rapid and reliable characterization of insulation and low-to-medium conductivity materials such as board-type insulators, clays, sands, ceramics, and plastics. Its symmetric dual heat-flow sensor configuration and precise plate temperature control enable fast stabilization and high repeatability, making it suitable for R&D, QC, and process control.
Testing is fully automated from temperature control through data acquisition, analysis, and report generation. The system can be operated via a host computer and optionally with an embedded touchscreen HMI for on-instrument testing and data storage. Typical measurements can reach stable thermal resistance values within minutes, and the temperature range can be customized to application needs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards Compliance | ASTM C518; ISO 8301; GB/T 10295 |
| Measurement Method | Guarded hot plate with dual heat-flow sensors (symmetric configuration) |
| Thermal Conductivity Range | 0.005 to 2.0 W/(m·K) |
| Accuracy | < ±3% (at 25°C ambient) |
| Repeatability | ±1% |
| Thermal Resistance Range | 0.1 to 8.0 m²·K/W |
| Sample Size | 300 × 300 mm |
| Sample Thickness | 10 to 50 mm |
| Hot Plate Maximum Temperature | 100°C |
| Cold Plate Minimum Temperature | −30.0°C ±0.1°C, thermostatic control |
| Hot Side Temperature Control | Ambient to 99.99°C; programmable PID; resolution 0.01°C; 0.1-class accuracy; >10 programmable setpoints; plate heater with bidirectional SCR control |
| Temperature Measurement Resolution | 0.01°C |
| Cooling Options | Forced air; external water bath; thermoelectric (user selects one) |
| Automation | Computer-controlled automatic testing; automatic data acquisition, processing, report generation, and data storage |
| Configurable Temperature Range | Customizable on request |
| Main Configuration | Test host (1); analysis software (1); low-temperature bath (1); computer and printer (customer-supplied) |
