Compact In-Situ Freeze Dryer
Published: 12/21/2016
Compact in-situ freeze dryer designed for benchtop lyophilization with automated touchscreen control. Suitable for small-batch processing in food, bioproducts, chemicals, traditional medicine, and nutraceutical R&D.
Product Description

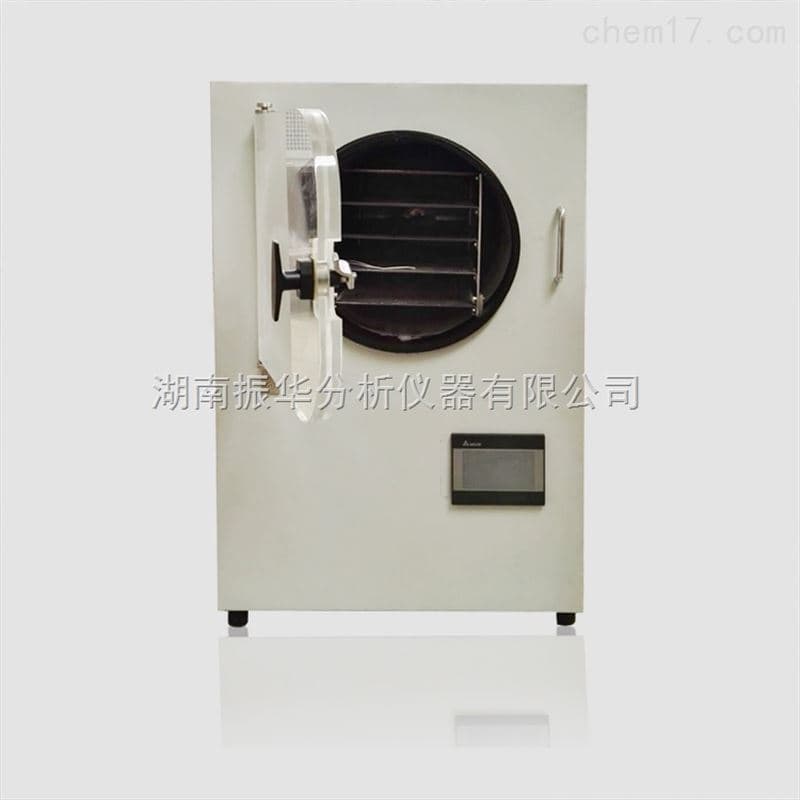

The TF-HFD-1 is a benchtop in-situ freeze dryer engineered for small-batch lyophilization where footprint, ease of use, and process visibility are essential. It features one-touch automated control via a touchscreen interface and uses food-grade stainless steel contact parts to ensure safety and hygiene.
A transparent acrylic viewing door allows direct observation of the drying process, while imported key components help deliver low noise, efficient operation, and stable performance. The system is suited for laboratory and pilot applications across food technology, biotechnology, chemical formulation, herbal extracts, and nutraceutical development.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions (W×D×H) | 400 mm × 550 mm × 700 mm |
| Net Weight | 50 kg |
| Power Supply | Single-phase 220 V, 50 Hz |
| Power Consumption | 750 W |
| Tray Size (Each) | 140 mm (W) × 275 mm (D) |
| Number Of Trays | 3 |
| Batch Material Capacity | 1–2 kg |
| Operation | Touchscreen, one-touch start, automatic process control |
| Contact Materials | Food-grade stainless steel 304 (trays and chamber liner) |
| Door | Transparent acrylic for process viewing |
| Design | Compact, low-noise, energy-efficient system |
