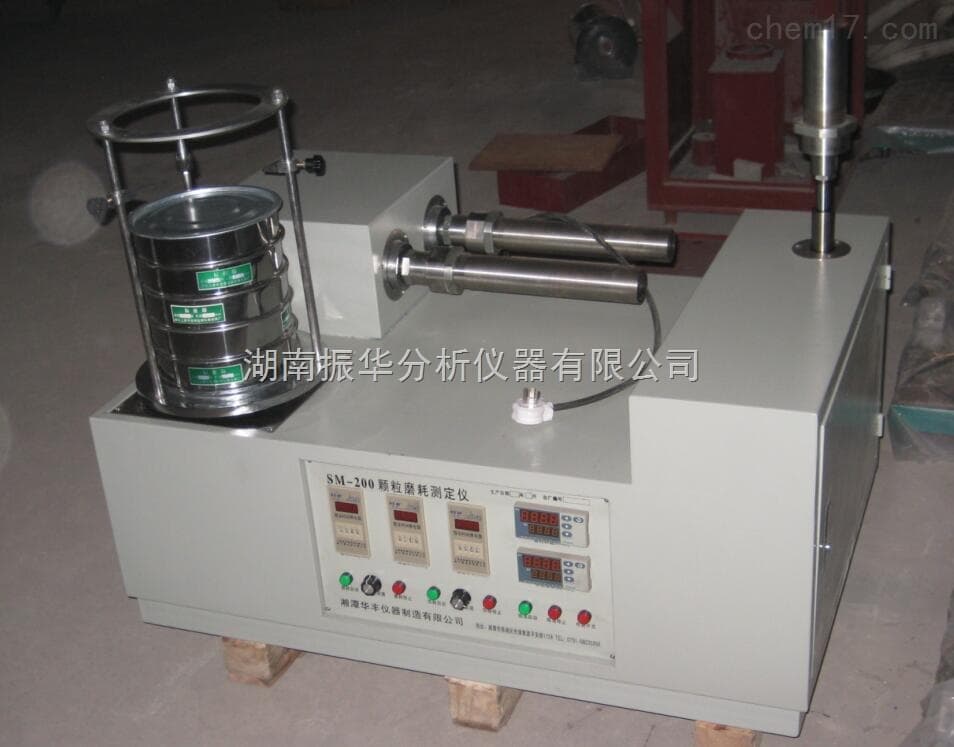

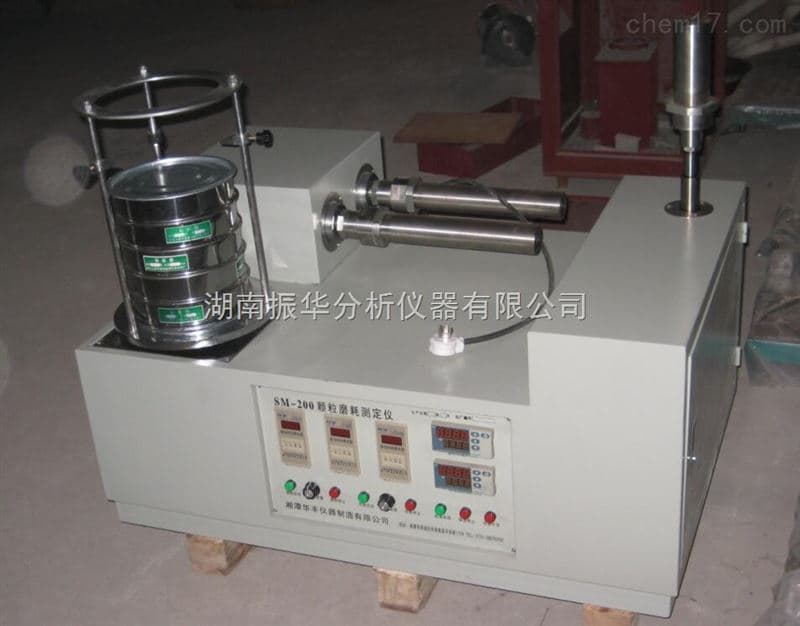

SM-200 Granular Abrasion Tester
Published: 3/2/2017
Bench-top device for determining the abrasion rate of granular media such as artificial ceramsite filter media and activated alumina. Designed for configurable rotational and vibrational abrasion testing to meet multiple Chinese industry standards.
Product Description
The SM-200 Granular Abrasion Tester evaluates the abrasion resistance of granular materials used in water treatment and industrial applications. It supports controlled rotation and vibration modes, allowing users to set speed, cycle count, and time to quantify abrasion loss under repeatable conditions.
The instrument is built around a stainless-steel abrasion cylinder with defined dimensions and internal roughness to ensure consistent contact conditions. Test methods and performance conform to CJ/T299-2008, HG/T3927-2008, and GB/T10504-2008 requirements for reliable, comparable results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Speed Setting (Mode 1) | 25 ±1 cycles/min |
| Rotational Speed (Mode 2) | 30 ±1 r/min, adjustable |
| Rotation Count | Up to 1000 cycles, settable |
| Rotation Time Range | 1–99 min, settable |
| Vibration Frequency Range | 1–30 times/s, settable |
| Vibration Timing Range | 1 s–99 min, settable |
| Abrasion Cylinder Size | Φ50 × 300 mm; inner diameter d36 × 300 mm |
| Abrasion Cylinder Material | Stainless steel |
| Internal Surface Roughness | Ra 3.2 (R3.2) |
| Power Supply | 220 V, 50 Hz |
| Power Consumption | ≤1.5 kW |
| Standards Compliance | CJ/T 299-2008; HG/T 3927-2008; GB/T 10504-2008 |
