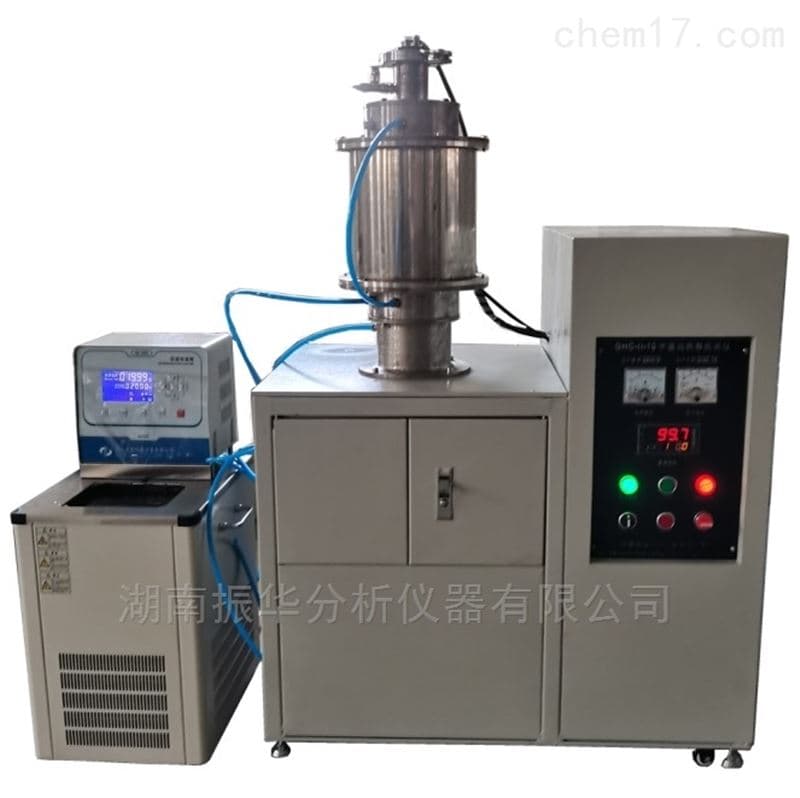

Mid-Temperature Specific Heat Capacity Tester
Published: 3/14/2025
The GHC-II-10 measures the specific heat capacity of solid materials at mid-range temperatures using the mixing (drop) calorimetry method. It is suited for research and teaching applications and conforms to GJB330A-2000 testing standards.
Product Description
The GHC-II-10 Mid-Temperature Specific Heat Capacity Tester automates determination of specific heat capacity for solids across controlled temperatures by employing the mixing method. Samples are heated in a vertical tube resistance furnace to the target temperature and then dropped into a calorimeter; the system records the temperature-time profiles of both the sample and calorimeter to compute specific heat.
The system integrates a tube-type vertical resistance furnace, thermostat, temperature controller, high-precision thermometer, calorimeter, and a computer-based data acquisition and analysis suite. For oxidation-prone samples at elevated temperatures, an inert atmosphere (argon) or a vacuum protection setup is recommended. The instrument is designed for laboratories conducting materials research and education and complies with GJB330A-2000.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Method | Mixing (drop) calorimetry |
| Specific Heat Capacity Range | 0.05–5 kJ/(kg·K) |
| Accuracy (Solids) | ≤1% ±0.002 |
| Accuracy (Powders) | ≤2% ±0.002 |
| Temperature Range | 100–800 ℃ |
| Sample Size (Solids) | φ16–φ20 × 30–50 mm |
| Sample Volume (Powders) | ~15 cm³ |
| Calorimetric Temperature Resolution | 0.001 ℃ |
| Calorimeter Heat Capacity | ~1000 J/K |
| Calorimeter Temperature Resolution | 0.001 ℃ |
| Atmosphere/Protection | Argon for anti-oxidation; optional vacuum system |
| Heating Furnace | Tube-type vertical resistance furnace (resistance wire heating) |
| Included Components | Specific heat tester main unit; high-precision thermostatic water bath; sample boxes; test software; communication interface and data cable; desktop computer |
| Standard Compliance | GJB330A-2000 (Specific heat capacity of solid materials – test method) |
