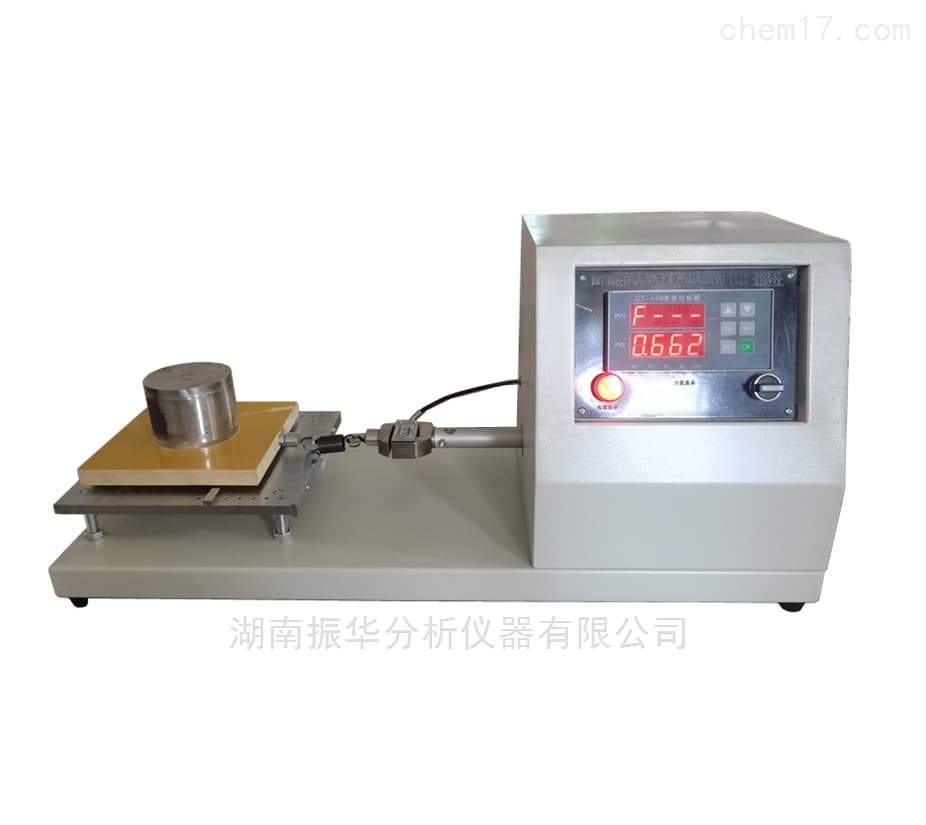

Ceramic Tile Static Coefficient of Friction Tester
Published: 7/20/2022
Bench-top tester for determining the static coefficient of friction of ceramic floor tiles using the static slider method. Designed for building materials laboratories and compliant with GB/T 4100-2006 requirements.
Product Description
The DMY tester measures the static coefficient of friction on ceramic tiles using a microcomputer force-control unit paired with a high-precision load cell. It automatically displays and cycles between tensile force and friction coefficient readings, providing stable performance and high measurement accuracy.
The instrument applies the static slider method defined in GB/T 4100-2006, making it suitable for quality control and performance evaluation of ceramic floor tiles in construction and building materials testing environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Force Measurement Range | 0–490 N |
| Force Accuracy | ±0.3% F.S |
| Display | 4-digit, unit N |
| Force Resolution | 0.1 N |
| Sample Size | 3 pieces (100 mm × 100 mm) |
| Friction Coefficient Calculation | Automatic |
| Power Supply | 220 V ±10%, 50 Hz ±10% |
| Operating Temperature | 0–40 ℃ |
| Operating Humidity | ≤85% RH |
| Standards Compliance | GB/T 4100-2006 |
| Measurement Method | Static slider method |
