Ceramic Tile Flatness, Squareness, and Edge Straightness Tester
Published: 11/1/2017
Bench-top instrument for rapid measurement of ceramic wall and floor tile dimensional and shape characteristics including edge straightness, squareness, and surface flatness. Suitable for manufacturers and quality inspection labs, compliant with GB/T 3810.2-2006.
Product Description

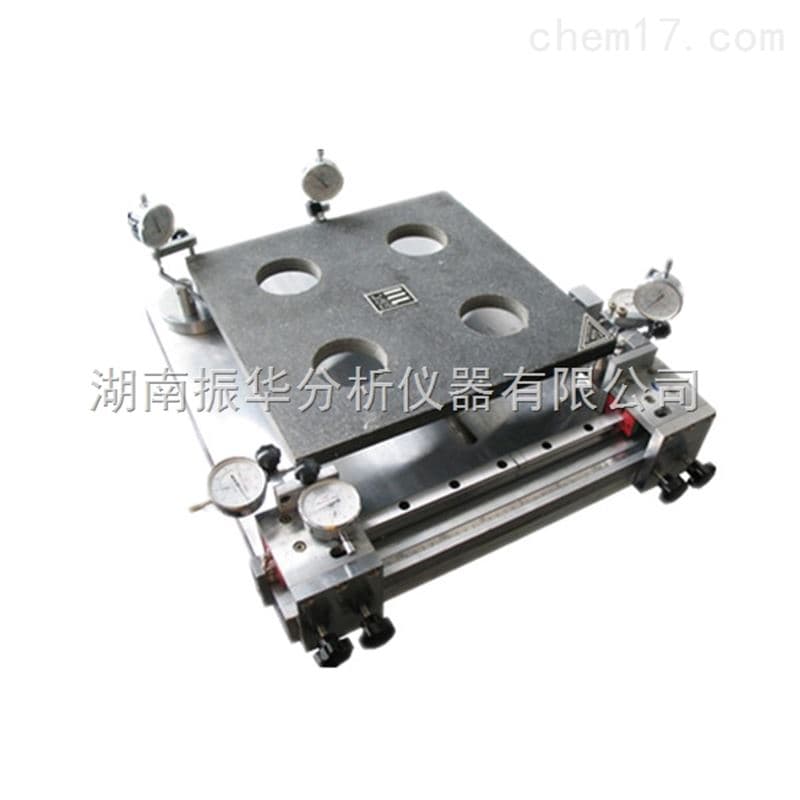

The TZY series tester is designed to measure the dimensional and geometric properties of ceramic wall and floor tiles in a single setup. By positioning the specimen once, the system enables fast and accurate acquisition of edge straightness, squareness, and surface flatness results according to GB/T 3810.2-2006 requirements.
The system supports multiple tile formats through interchangeable standard reference plates that match the sample size. It is intended for production quality control and third-party testing where consistent, traceable measurements are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measured Parameters | Edge straightness, squareness, surface flatness |
| Measurement Accuracy | ±0.1 mm (using six dial indicators) |
| Measurement Ranges (Models) | 60×60 to 600×600 mm; up to 800×800 mm; up to 1000×1000 mm (selectable by customer) |
| Standard Reference Plates (Material) | Aluminum alloy |
| Standard Plate Available Sizes | 1000×1000, 800×800, 600×600, 500×500, 400×400, 300×300, 200×200, 300×200, 300×152, 250×250, 152×152, 240×60 mm (custom sizes available) |
| Standard Plate Accuracy | Better than 0.1 mm |
| Compliance | GB/T 3810.2-2006 (Ceramic tiles—Determination of dimensions and surface quality) |
| Note | Matching standard plate is required and is sized one-to-one with the sample |
