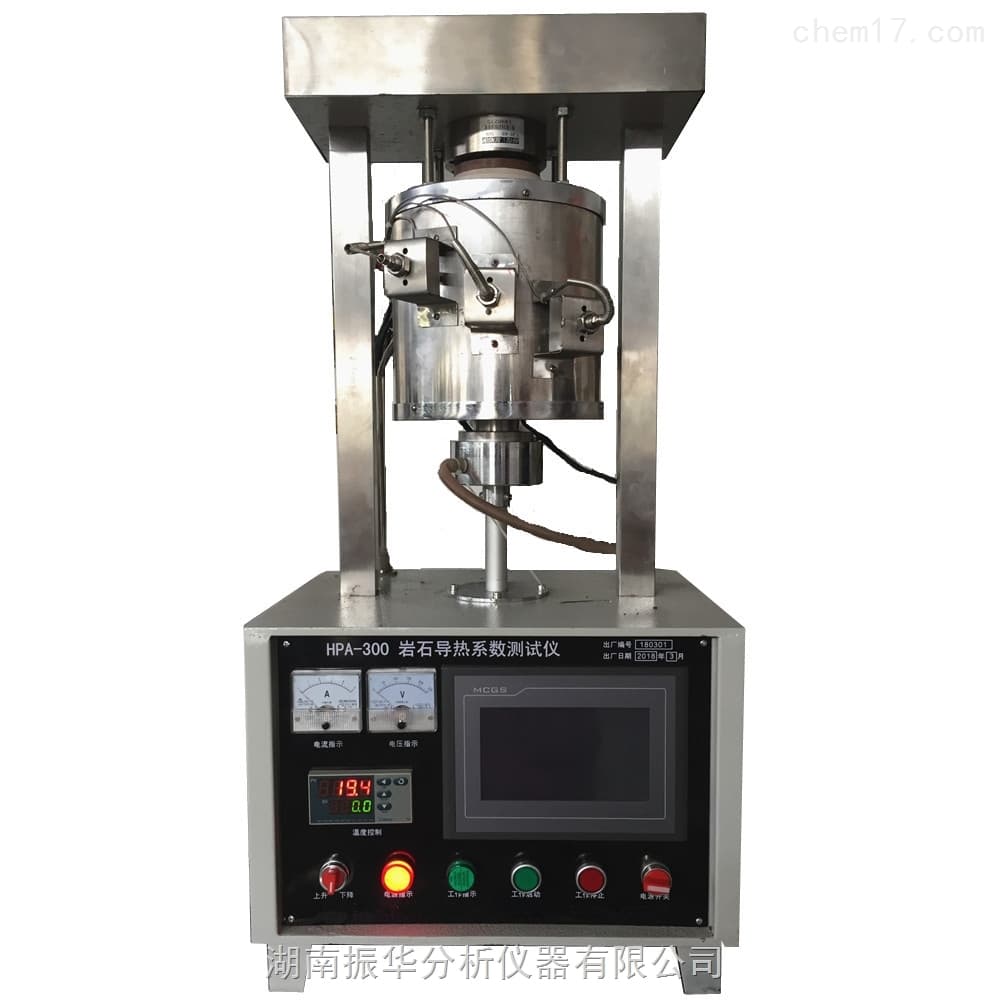

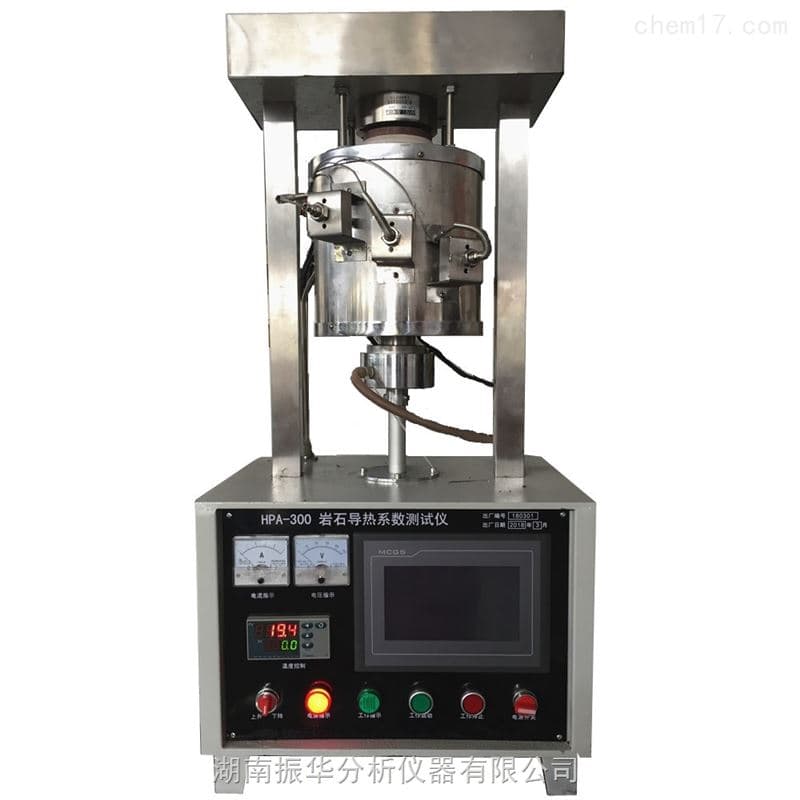

Rock Thermal Conductivity Tester
Published: 9/12/2019
The HPA-300 measures thermal conductivity and thermal resistance of rock and other medium-to-high conductivity materials using a transient heat flow method with longitudinal heat flow technology. It supports automated loading and software-driven data acquisition from ambient to 300°C across a conductivity range of 0.015–100 W/m·K.
Product Description
The HPA-300 Rock Thermal Conductivity Tester evaluates the thermal transport properties of cylindrical specimens by applying controlled axial heating and monitoring multi-point temperature distributions. Designed for laboratory characterization, it automates loading and pressure control to ensure stable contact conditions and reliable measurement of thermal conductivity and thermal resistance.
A dedicated software suite manages test sequencing, data acquisition, and analysis, delivering results directly after each run. Integrated temperature control includes a constant-temperature cold end via a built-in water bath, while multiple axial and lateral temperature measurement points capture the required gradients for determining both axial and radial heat transfer performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thermal Conductivity Range | 0.015–100 W/m·K |
| Sample Temperature Range | Ambient to 300°C |
| Structure | Vertical; automatic loading; automatic pressure control |
| Maximum Heating Temperature | 300°C |
| Metered Power | 60 W |
| Control And Software | Automated test and analysis software; intelligent touch-screen control |
| Temperature Measurement (Lateral) | 4 points |
| Temperature Measurement (Axial) | 4 points |
| Lateral Temperature Gradient Points | 3–6 points |
| Cold End Temperature | 20°C (integrated constant-temperature water bath) |
| Maximum Load | 1000 N (adjustable) |
| Specimen Size | Ø50 × 100 mm and Ø37.5 × 100 mm |
| System Accuracy | ±3% |
| Repeatability | ±1% |
| Operating Principle Note | Axial heater applied on one end; lateral temperature-time distribution used to determine radial heat transfer |
| Standard Configuration | Test mainframe (1), electrical control cabinet (1), test software (integrated, 1 set), user manual (1), certificate of conformity (1) |
