Ceramic Tile Dimensional and Surface Quality Measurement System
Published: 3/15/2018
The TZY-600/800/1000 system measures dimensional and shape characteristics of ceramic wall and floor tiles in a single setup. It supports compliance testing to GB/T 3810.2-2006 and EN ISO 10545-2 for straightness, squareness, and flatness.
Product Description

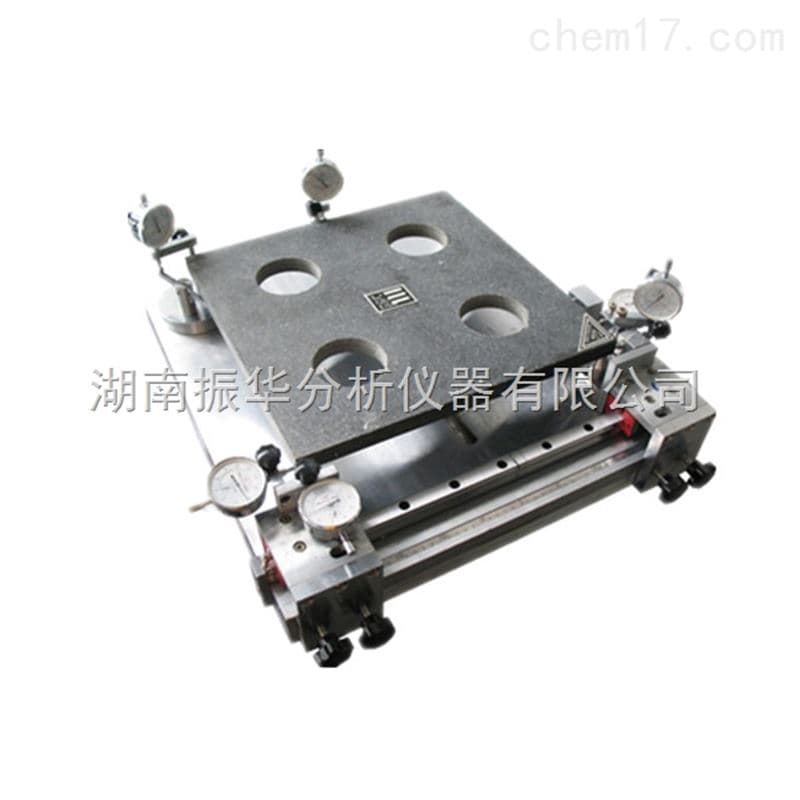

The TZY series is designed to quickly and accurately determine the dimensional and surface quality parameters of ceramic tiles, including edge straightness, squareness, and flatness. A single placement of the test piece allows simultaneous acquisition of all relevant indices, improving throughput for quality control and laboratory verification.
The instrument is intended for tile manufacturers and third-party laboratories conducting conformity assessments to GB/T 3810.2-2006 and EN ISO 10545-2. Optional digital indicators can be configured for direct PC connectivity to capture and process test data, and operation requires matched aluminum alloy reference plates corresponding one-to-one with the sample size.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Accuracy | ±0.01 mm |
| Indicators Supplied | 6 dial indicators |
| Tile Size Range Options | 60 × 60 to 600 × 600 mm; up to 800 × 800 mm; up to 1000 × 1000 mm (selectable) |
| Standards Compliance | GB/T 3810.2-2006; EN ISO 10545-2 |
| Optional Configuration | Digital indicators with PC data output |
| Required Accessories | Aluminum alloy reference plates matched to sample size (priced separately) |
| Available Reference Plate Sizes (Aluminum) | 1000 × 1000 mm; 800 × 800 mm; 600 × 600 mm; 500 × 500 mm; 400 × 400 mm; 300 × 300 mm; 200 × 200 mm; 300 × 200 mm; 300 × 152 mm; 250 × 250 mm; 152 × 152 mm; 240 × 60 mm |
| Reference Plate Accuracy | Better than 0.1 mm |
| Reference Plate Certification | Supplied with metrology inspection certificate |
