Ring-and-Ball Asphalt Softening Point Tester
Published: 7/23/2018
Bench-top tester for determining the softening point of bitumen, tars, and polymer resins using the ring-and-ball method. Complies with major international standards and can test two samples simultaneously with precise heating control.
Product Description

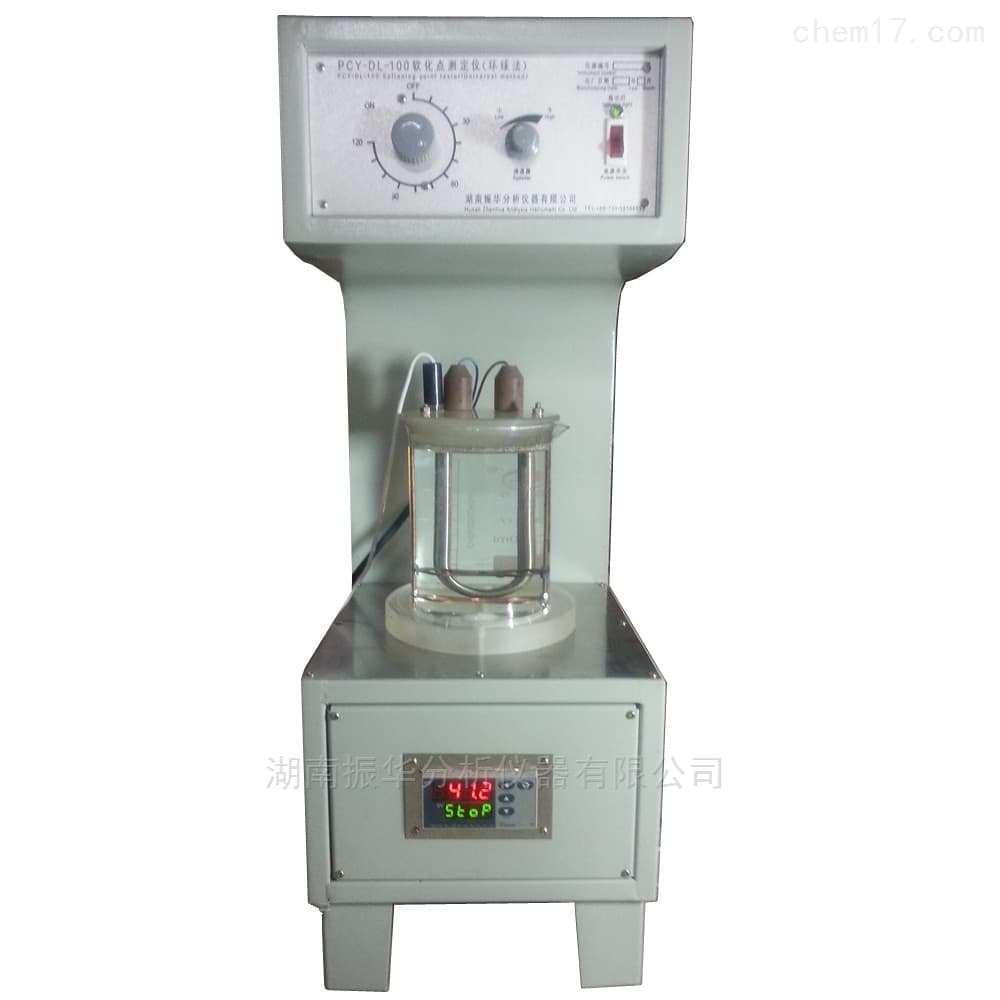

The PCY-DL-100 Ring-and-Ball Asphalt Softening Point Tester measures the softening point of bitumen, coal tar pitch, asphalt, and polymer resins using the ring-and-ball methodology. It is designed for production plants, R&D labs, and quality inspection agencies that require compliant and repeatable thermal softening determinations.
The system offers precise electromagnetic heating and adjustable electromagnetic stirring to ensure uniform temperature distribution in the bath. It supports simultaneous testing of two samples and aligns with widely recognized standards, enabling consistent results across international specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Method | Ring-and-ball softening point determination |
| Sample Capacity | 2 samples per run |
| Temperature Range | Up to 80 °C (up to 200 °C with alternative heating medium) |
| Heating Method | Electromagnetic heating for uniformity |
| Stirring | Electromagnetic stirring, speed adjustable |
| Power | 2 kW |
| Standards Compliance | GB 12007.6-89; ISO 4625; ASTM D36; ASTM E28; IP 58; DIN 52011; NFT 66-008; EN 1427 |
| Included Accessories | Beaker (1), Test clamp set (1 set), Steel balls (2), User manual and certificate (1 set) |
