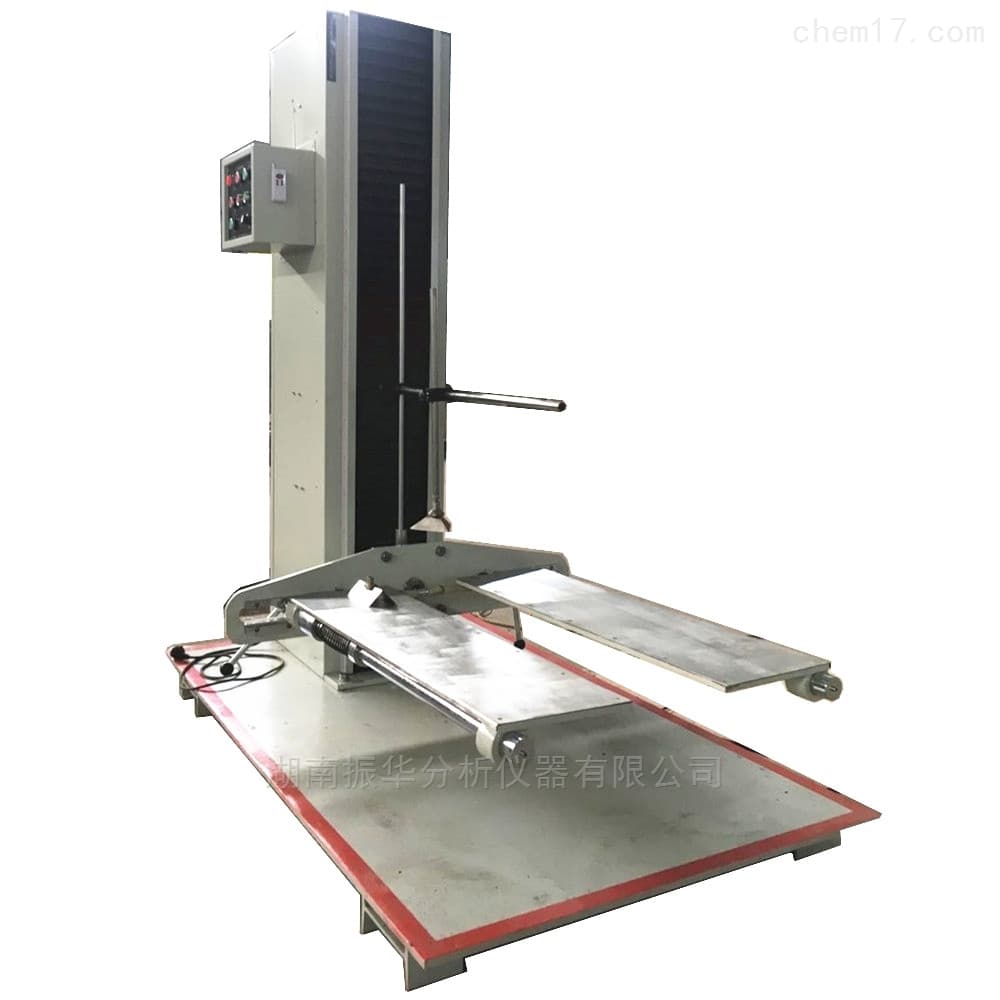

Vertical Drop Tester for Transport Packages
Published: 4/17/2019
The TCY-II vertical drop tester evaluates the drop impact resistance of complete, fully packed transport packages. It is designed to meet GB/T 4857.5-92, ISO 2248, and JIS Z0202-87 requirements for edge, face, and corner drop testing.
Product Description
The TCY-II Vertical Drop Tester is engineered for assessing the mechanical robustness of transport packaging by performing controlled vertical impact drops. Conforming to GB/T 4857.5-92, ISO 2248, and JIS Z0202-87, the system delivers stable operation, high measurement accuracy, and automated control.
The system comprises a control unit, lifting mechanism, movable sample carriage, and an impact base plate. During testing, the specimen is raised to a preset height and released to freely fall in a specified orientation so that it collides with the impact surface, enabling evaluation of package integrity under real-world handling shocks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | GB/T 4857.5-92; ISO 2248; JIS Z0202-87 |
| Maximum Specimen Weight | 100 kg |
| Drop Height Range | 300–1500 mm |
| Maximum Specimen Size (L×W×H) | ≥800 × 800 × 1000 mm |
| Impact Base Plate Size (L×W×H) | ≥1700 × 1000 × 14 mm |
| Test Orientations | Edge, face, corner |
| Drop Height Error | ≤2% |
| Drop Plane Flatness Error | <1° |
| Power Supply | AC 220 V |
