Sanitary Ceramics Load Resistance Tester
Published: 3/3/2022
Pneumatically driven tester for evaluating the load-bearing resistance of sanitary ceramic products in accordance with GB/T 6952-2005 and GB 26730-2011. Designed for stable loading, high measurement accuracy, and automated operation in ceramic quality control labs.
Product Description

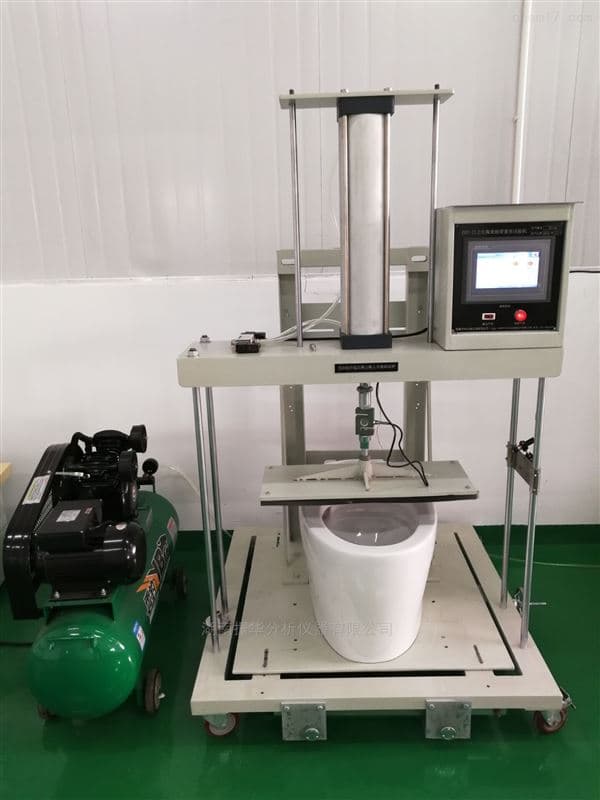

The Sanitary Ceramics Load Resistance Tester applies force to ceramic specimens using a compressed-air cylinder and piston to assess their load-bearing performance. It is engineered to meet the equipment requirements of GB/T 6952-2005 and GB 26730-2011 for sanitary ware testing.

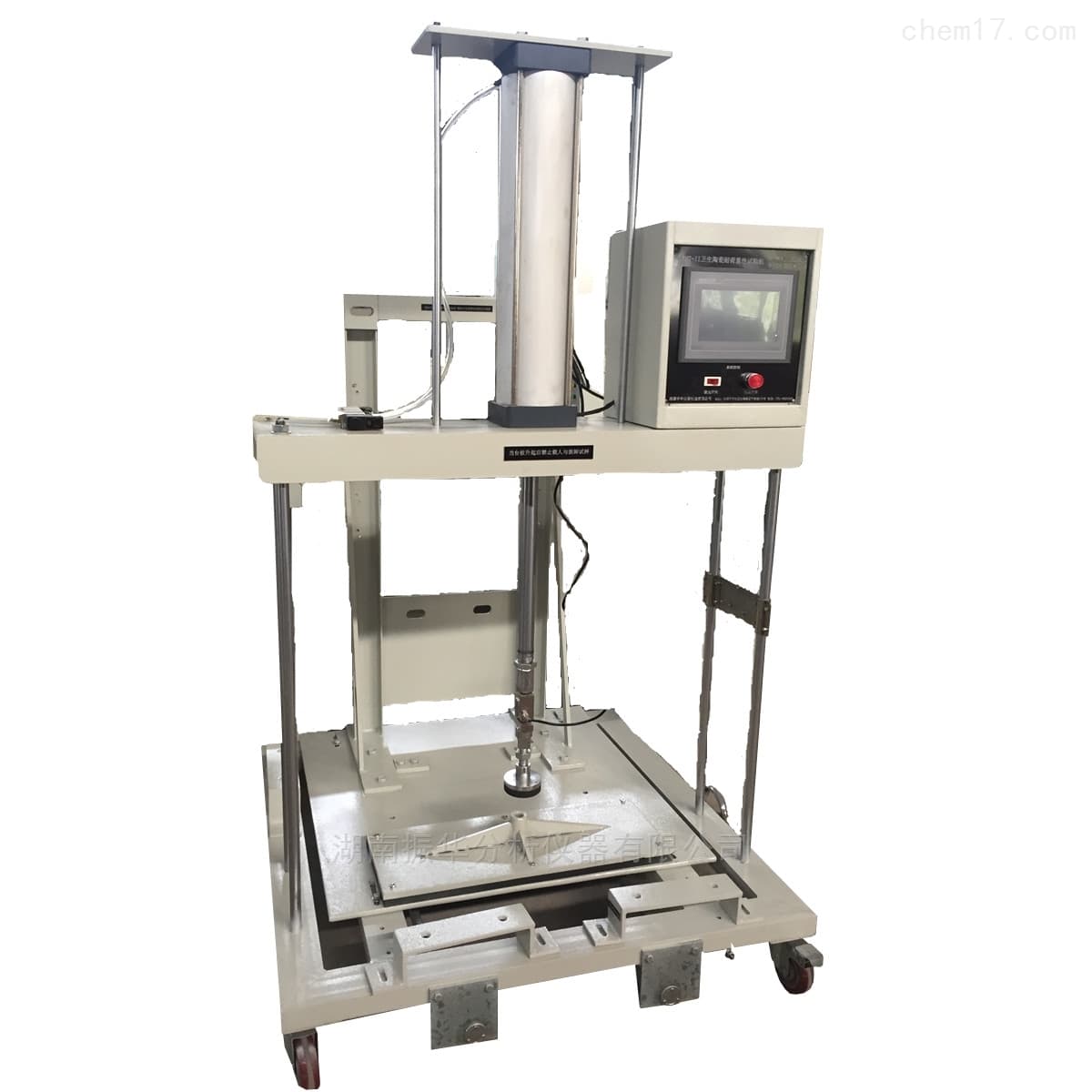

The system comprises a pneumatic loading module, mounting frame, specimen support lift table, laser positioning device, and a touch-screen control system. Its design emphasizes simple operation, smooth and adjustable loading, high accuracy, and a high degree of automation for routine compliance testing of various sanitary ceramic products.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC220 V |
| Power Consumption | 1.0 kW |
| Cylinder Loading Force | 0–6000 N, adjustable |
| Test Load Accuracy | 1% |
| Pressure Resolution | 10 N |
| Cylinder Force Range (Low Range) | 0–500 N, accuracy 1.0 grade |
| Cylinder Force Range (High Range) | 500–6000 N, accuracy 1.0 grade |
| A/D Conversion Time | ≤250 μs |
| Workstations | 1 |
| Standards Compliance | GB/T 6952-2005; GB 26730-2011 |
| System Components | Pneumatic loading device; Mounting frame; Specimen support lift table; Laser positioning device; Touch control system |
