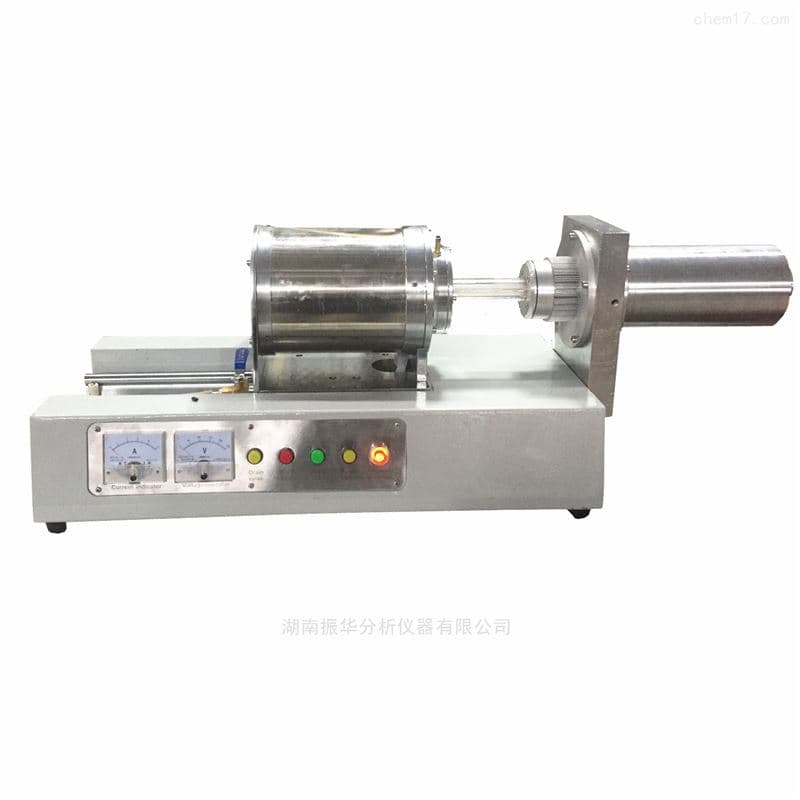

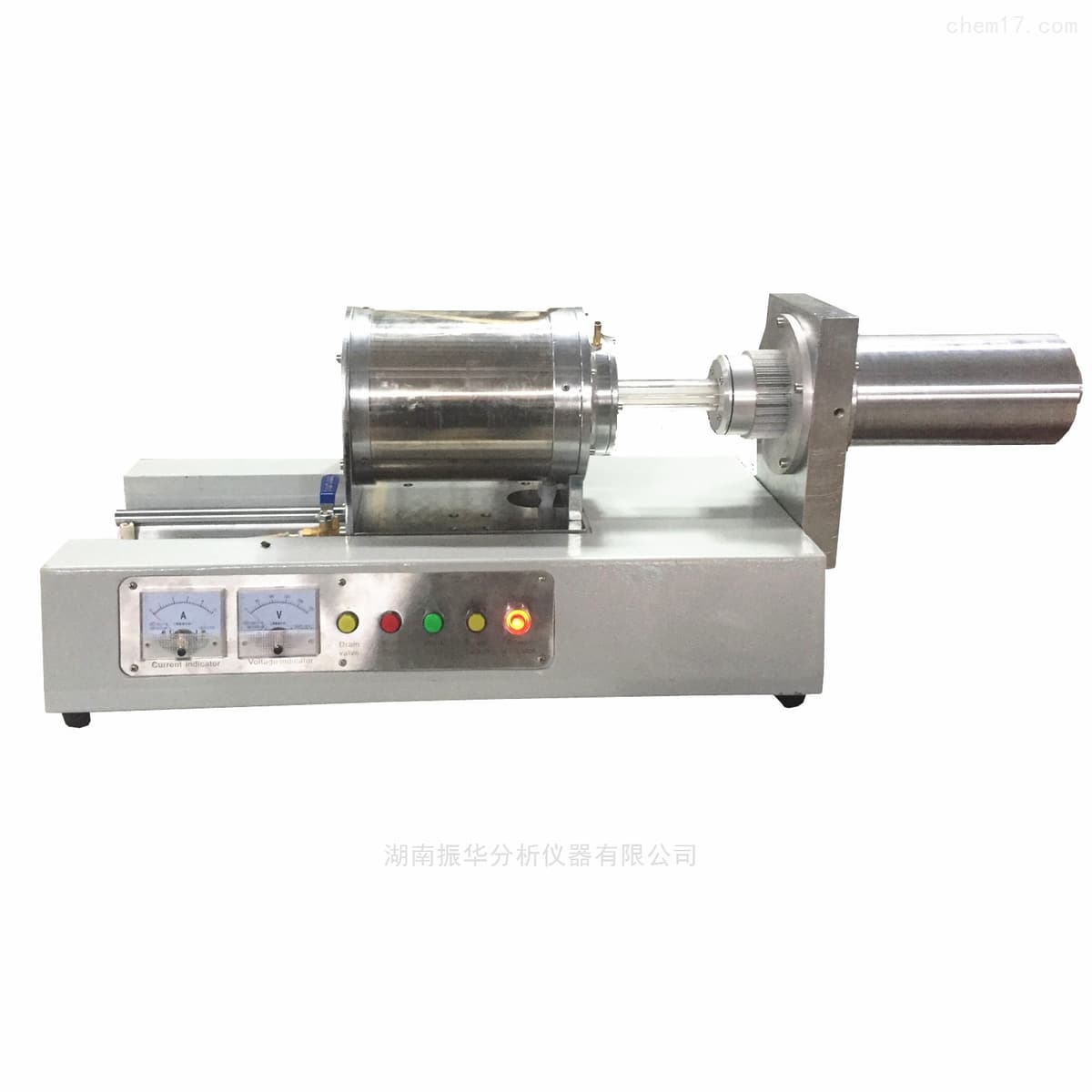

Polymer Linear Thermal Expansion Coefficient Tester for Rubber and Plastics
Published: 5/28/2020
Bench-top system for measuring linear thermal expansion of rubber and plastic polymers within a controlled temperature range in accordance with GB 1036-2008 and ASTM D696. Suitable for R&D and quality control to determine thermal expansion behavior, softening point, glass transition, and phase changes.
Product Description
The PCY-SL-30 measures the change in length of polymer specimens under a defined temperature differential to calculate average linear thermal expansion coefficients. It is designed for laboratory and industrial environments to support materials evaluation, process development, and quality assurance.
The system uses a thermostatic bath for precise low-temperature control and a quartz-based measurement fixture to ensure stability and accuracy. Data acquisition can be interfaced to an upper computer for online testing and records management, enabling efficient workflows and traceable results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | -30 ℃ to +30 ℃ |
| Control Method | Intelligent controller with adjustable/lockable PID parameters |
| Computer Interface | Upper-computer interface for online testing |
| Power Supply | 220 V ±10%, 50 Hz |
| Thermostatic Bath Temperature Capability | Down to -40 ℃ |
| Thermostatic Bath Power | ≤ 2 kW |
| Expansion Measurement Range | 0 to 5 mm |
| Expansion Measurement Accuracy | ±0.1% |
| Expansion Resolution | 1 μm |
| Temperature Control Accuracy | ±0.1 ℃ |
| Temperature Resolution | 0.01 ℃ |
| Temperature Recording Error | ≤ ±0.5% |
| Fixture And Contact Materials | Quartz inner tube, quartz outer tube, quartz piston push rod |
| Sample Dimensions | Diameter 6–10 mm, length up to 50 mm |
| Calibration | Quartz standard sample |
| Standards Compliance | GB 1036-2008; ASTM D696 |
| Configuration (Included) | Test main unit ×1; low-temperature bath ×1 (with refrigeration); test software ×1; calibration standard ×1 |
| User-Supplied | Computer |
