Ceramic Tile Frost Resistance Tester Low-Temperature Chamber
Published: 8/21/2019
Low-temperature test chamber designed to evaluate the frost resistance of ceramic tiles in accordance with GB/T 3810.12. It automates freeze–thaw cycling with precise temperature control for repeatable, standards-compliant results.
Product Description

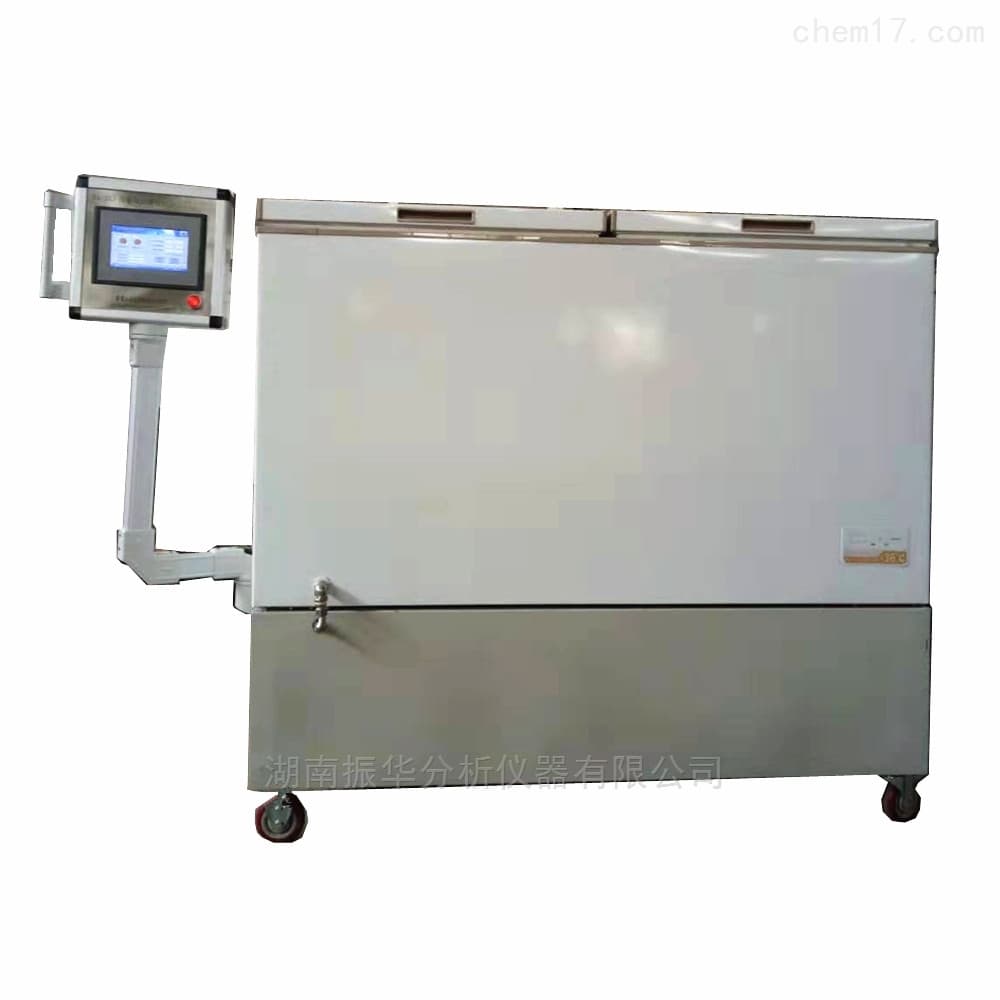

The SQ007 low-temperature chamber is engineered for determining the frost resistance of ceramic tiles by executing controlled freeze–thaw cycles. It operates to the requirements of GB/T 3810.12 and supports testing workflows specified for ceramic tile performance assessment.
The system integrates a refrigerated test chamber, water inlet and drainage system, and a temperature control and automatic control unit. Test cycles run automatically according to preset counts, ensuring consistent thermal conditioning and reliable evaluation outcomes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standards | GB/T 3810.12-2016; GB/T 4100-2015 |
| Test Chamber Internal Size (W×D×H) | 450 × 450 × 450 mm |
| Test Zone Temperature Range | -20 ℃ to 25 ℃ |
| Temperature Control Accuracy | ±1 ℃ |
| Test Mode | Automatic cycling per preset number of cycles |
| Power Supply (Operation) | 220 V ±10%, 1.5 kW |
| Operating Environment Temperature | 0 to 40 ℃ |
| Power Supply (Site) | 220 V, 50 Hz |
| Utilities | Water inlet and drain required |
