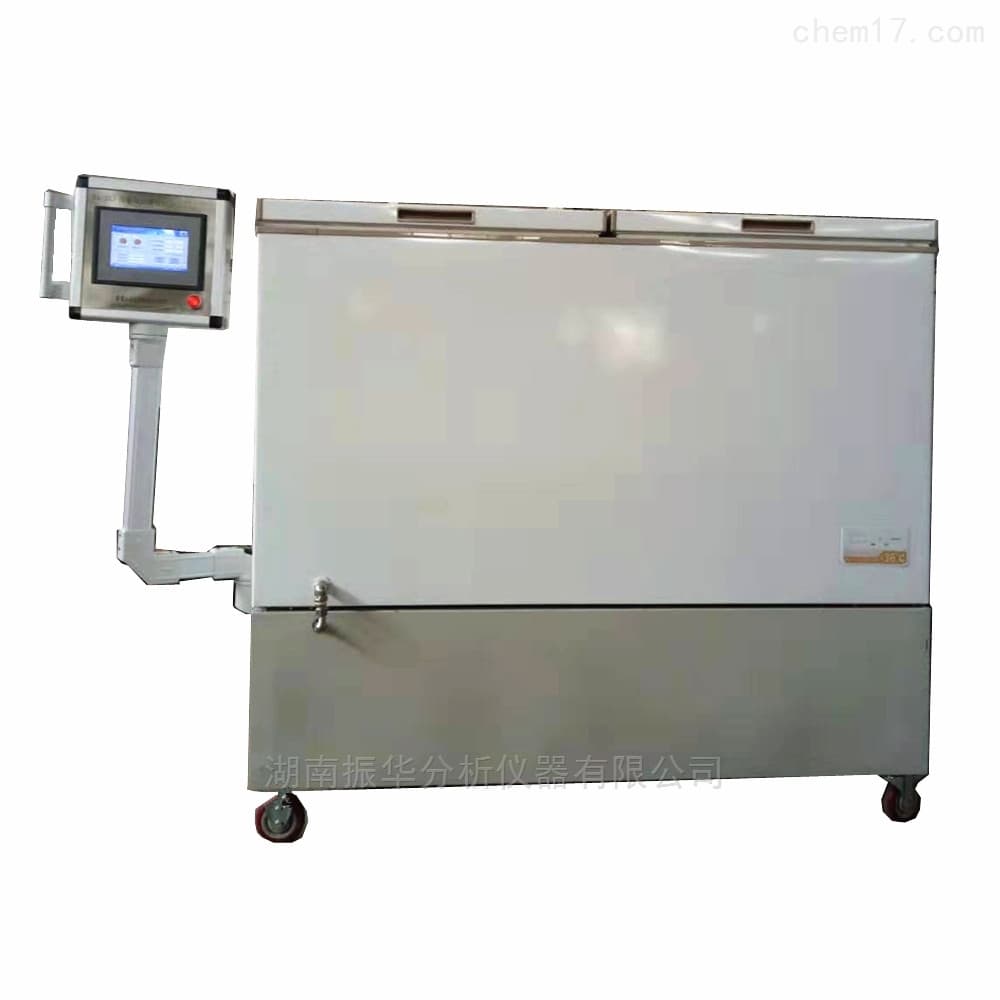

Fully Automatic Ceramic Freeze–Thaw Cycle Tester
Published: 12/30/2019
The SQ007 automates freeze–thaw cycling to evaluate the frost resistance of ceramic tiles. It complies with GB/T 4100-2015 and GB/T 3810.12-2016 requirements for ceramic tile frost resistance testing.
Product Description
The SQ007 Fully Automatic Ceramic Freeze–Thaw Cycle Tester is designed to determine the frost resistance of ceramic tiles by subjecting specimens to controlled freezing and thawing cycles. The chamber, water management, and temperature control subsystems work together to execute test sequences automatically according to preset cycle counts.
The instrument follows the methodology defined in GB/T 3810.12-2016 and supports ceramic tile classifications per GB/T 4100-2015. Its integrated refrigeration chamber and automated inlet/outlet water system, governed by a precision temperature control and automation module, ensure consistent, repeatable test conditions for quality control and standards compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Temperature Range (Test Zone) | -20 ℃ to 25 ℃ |
| Test Chamber Size (W×D×H) | 450 × 450 × 450 mm |
| Temperature Control Accuracy | ±1 ℃ |
| Test Mode | Automatic cycling per preset number of cycles |
| Power Supply (Rated) | 220 V ±10 %, 2.7 kW |
| Operating Ambient Temperature | 0 ℃ to 40 ℃ |
| Mains Frequency | 50 Hz |
| Utilities | Fresh water inlet and drain required |
| Standards Compliance | GB/T 4100-2015; GB/T 3810.12-2016 |
