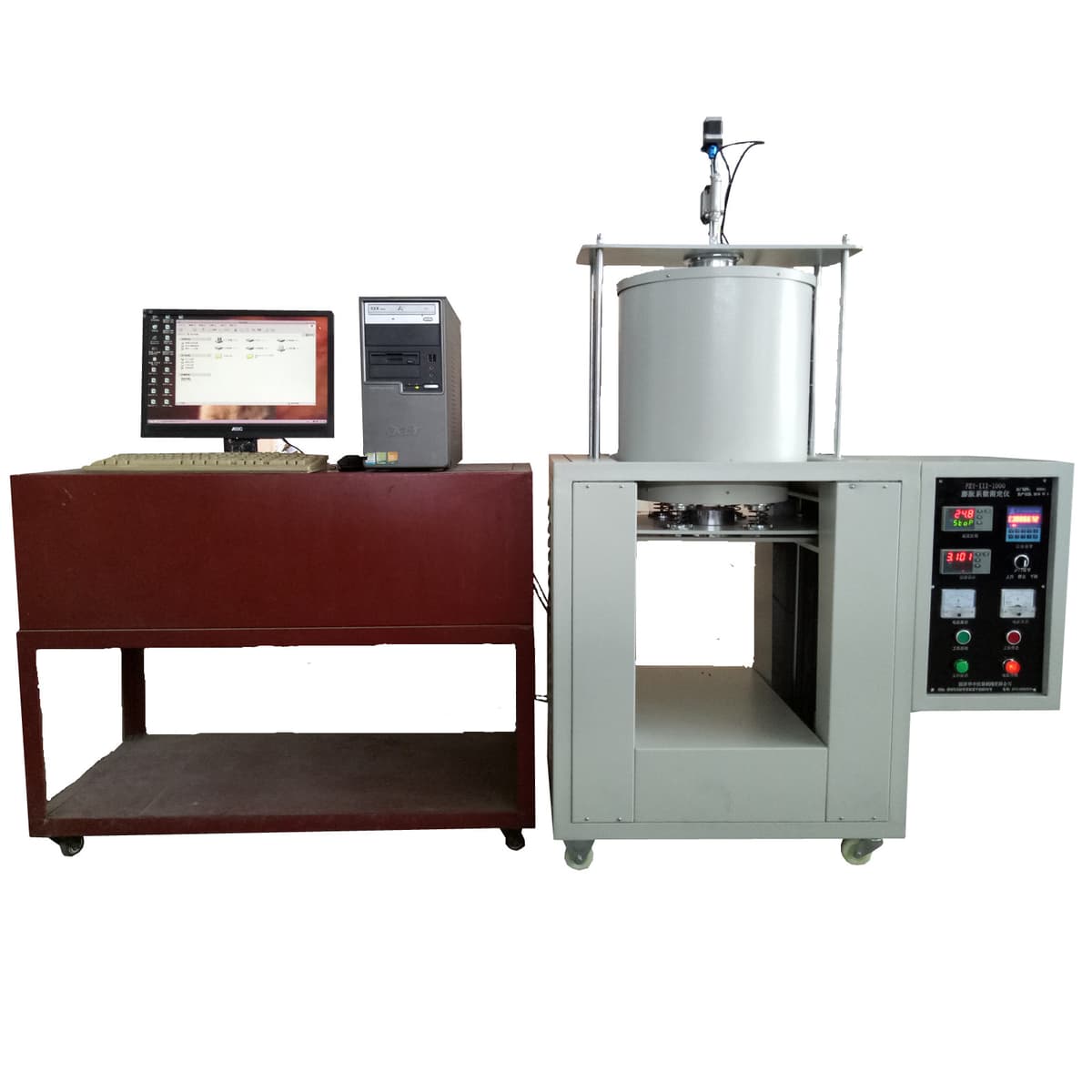

Large-Specimen Vertical Thermal Expansion Coefficient Tester
Published: 10/10/2019
A vertical dilatometer for measuring thermal expansion and contraction of large solid specimens such as concrete, ceramics, graphite, glass, and polymers up to 1000℃. It supports protective gas operation and adheres to GB/T 32158-2015 and GB/T 3074.4 sample preparation standards for materials research and quality control.
Product Description
The PZY-III-1000 is designed to precisely characterize dimensional changes and calculate thermal expansion coefficients of large solid samples during controlled heating. Typical applications include evaluation of ceramics, refractory materials, graphite/carbon, glass, building materials, concrete, and polymer composites.
The system features a vertical loading architecture that simplifies specimen installation and alignment with the furnace hot zone. An intelligent controller with PID regulation and PC-based interface enables configurable heating profiles and comprehensive process control. A protective gas port is provided for tests requiring inert or controlled atmospheres, and dedicated thermal analysis software supports full-process data acquisition and analysis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Temperature | 1000℃ |
| Heating Rate | 0.1–20 K/min, settable |
| Recommended Routine Heating Rate | ≤3–5 K/min (customizable for special requirements) |
| Control | PID temperature control with set/lock functions; PC software for parameter editing |
| Temperature Control Accuracy | ±1℃ |
| Recorded Temperature Value Error | ≤±0.5% |
| Displacement Resolution (Minimum Display) | 1 μm |
| Specimen Size (Max) | 100 × 100 mm; length 160 mm |
| Specimen Size (Min) | 50 × 50 × 50 mm |
| Specimen State | Solid |
| Applicable Standards (Sample Preparation) | GB/T 32158-2015; GB/T 3074.4 |
| Measurement Functions | Thermal expansion/shrinkage measurement; thermal expansion coefficient calculation |
| Software | Thermal analysis software with full-process analysis |
| Included Items | Main test unit (1), test software with data communication interface (1 set), quartz reference standard (1), computer (1) |
