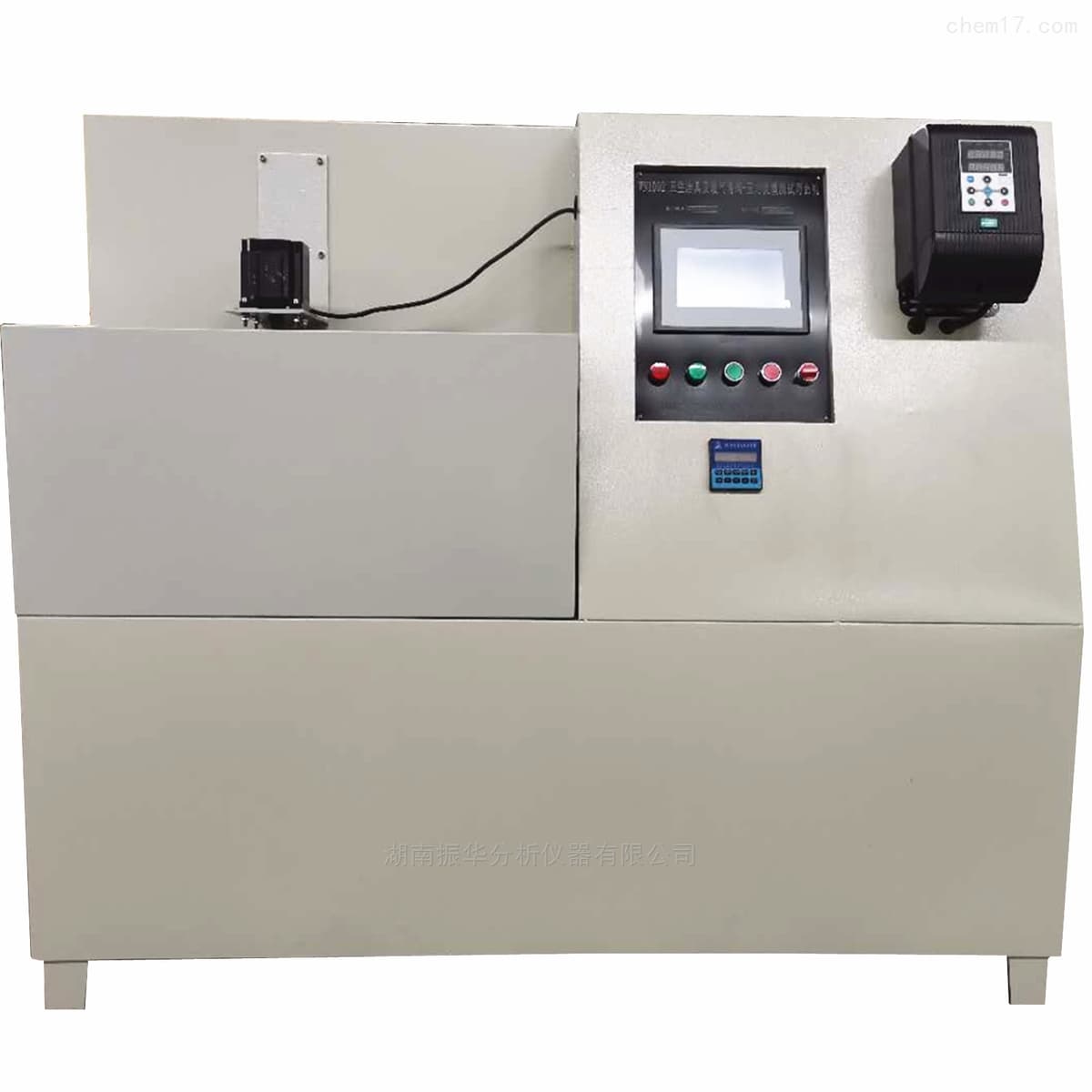

Sanitary Ware and Radiator Angle Valve Flow Tester
Published: 5/12/2020
Bench-top system for measuring flow characteristics of sanitary ware and radiator angle valves under controlled pressure. Complies with GB/T 26712-2011 for right-angle valves used in sanitary ware and heating pipelines.
Product Description
The WL1003 is designed to test the flow performance of sanitary ware and radiator angle valves with precise control of pressure and real-time flow measurement. It supports routine quality control and product verification against GB/T 26712-2011, helping manufacturers and laboratories validate valve throughput and stability at specified test pressures.
The system operates at mains three-phase power and uses water at ambient temperature as the test medium. It is intended for use on a stable, level installation surface in laboratory conditions with limited vibration, no corrosive atmospheres, and minimal electromagnetic interference.
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Voltage | 380 V, three-phase four-wire (A, B, C, N) |
| Flow Range | 0.1–0.5 L/s |
| Flow Accuracy | ±1% |
| Pressure Range | 0.01–0.8 MPa |
| Test Pressure | 0.30 ± 0.02 MPa |
| Pressure Accuracy | ±0.02 MPa |
| Water Flowmeter Accuracy | 1% |
| Test Medium Temperature | Ambient |
| Ambient Temperature | Ambient |
| Operating Temperature | 10–35 °C |
| Relative Humidity | ≤80% |
| Installation Levelness | 0.2/1000 |
| Environment | No vibration, no corrosive media, no strong electromagnetic interference |
| Power Supply Fluctuation | Within ±10% of rated voltage |
| Standard Compliance | GB/T 26712-2011 (right-angle valves for sanitary ware and heating pipelines) |
